Acer 16-port 10 / 100 mbps switch user's guide alw-3016

3.2 How to use up-link port

With up-link port you can use it to cascade to another switch to expand

your network. Please refer to the following procedure.

1. Use one end of UTP/STP to connect to the up-link port of ALW-3016

2. Use the other end to connect to the normal port of the new switch

3. Make sure the LNK ACT 100/LNK ACT10 LED is lit then it will work

normally.(See Figure 3-2-1)

ALW-3024

ALW-3016

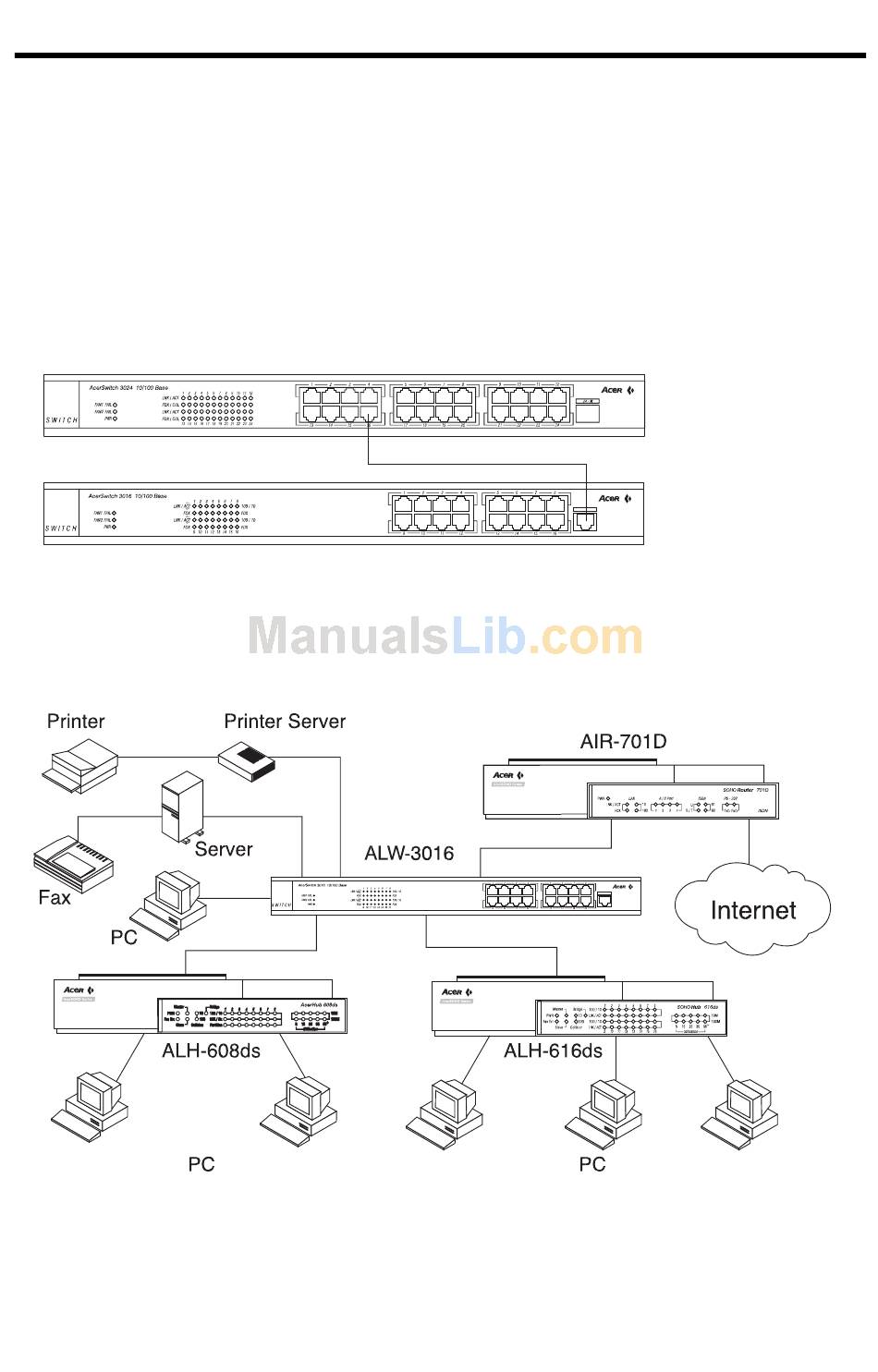

Figure 3-2-1 Up-link port connection

With this application diagram, you can clearly see the possibility what

ALW-3016 can do for you in expand your network. (See Figure 3-3-1)

Figure 3-3-1 Application diagram

Notice: Use UTP Cat. 5 to connect to 100 Mbps equipment and UTP Cat.

3,4,5 to connect to 10 Mbps one.
