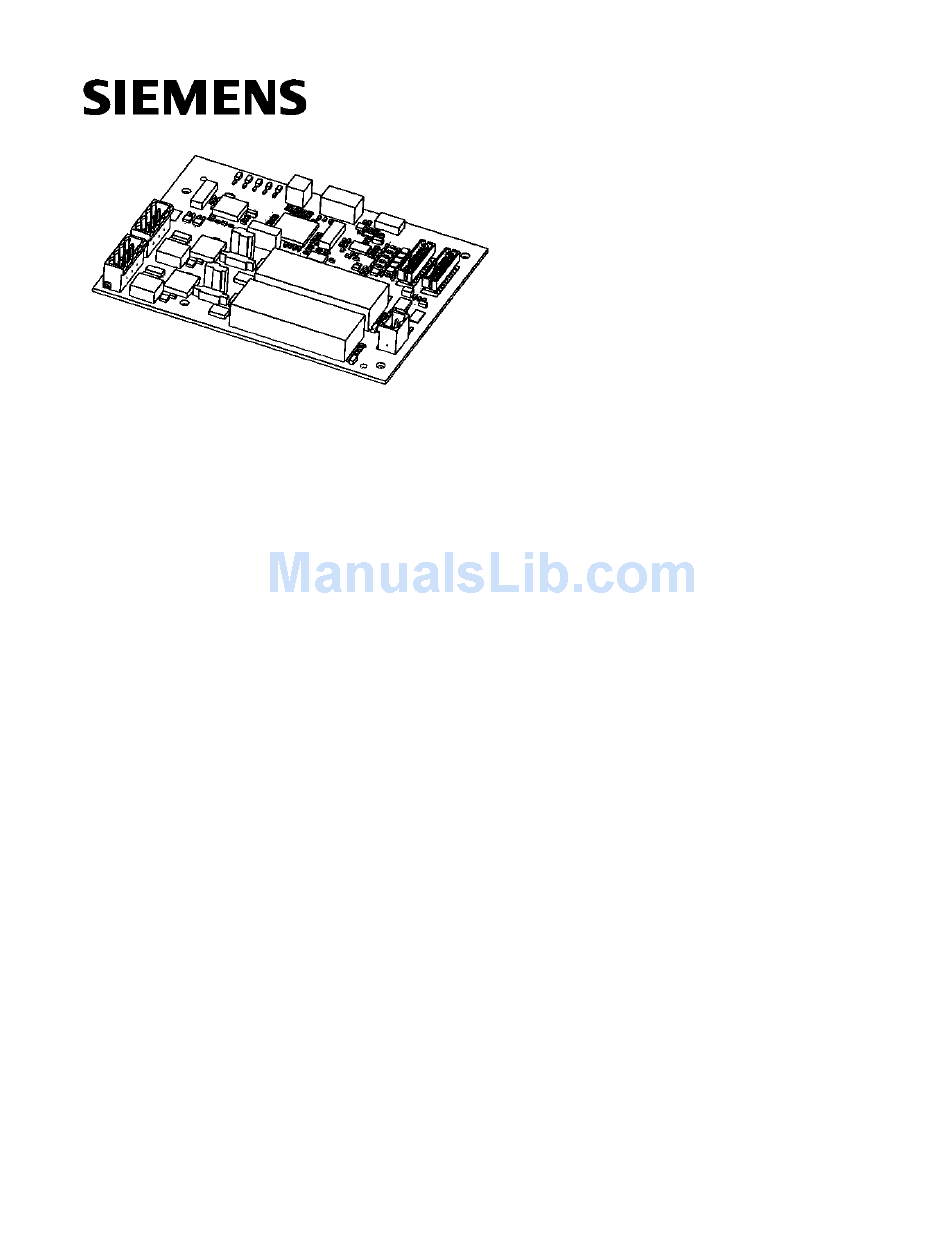

- Page 1 FCA2015-U1 Serial Digital Alarm Communicator Transmitter (DACT) Installation Instruction Siemens Industry, Inc Building Technologies Division...
- Page 2 Legal Notice Technical specifications and availability subject to change without notice. © 2018 Copyright by Siemens Industry, Inc. Transmittal, reproduction, dissemination and/or editing of this document as well as utilization of its contents and communication thereof to others without express authorization are prohibited.
- Page 3 For additional information on building technology security and our offerings, contact your Siemens sales or project department. We strongly recommend customers to follow our security advisories, which provide information on the latest security threats, patches and other mitigation measures.
-
Page 4: Table Of Contents
INSTALLATION ON XLS/DESIGO FIRE SAFETY MODULAR/CERBERUS PRO MODULAR ........7 FIRMWARE UPDATE ON XLS/DESIGO FIRE SAFETY MODULAR/CERBERUS PRO MODULAR SYSTEMS ....7 FCA2015-U1 WIRING ............................7 FCA2015-U1 FORMAT DESCRIPTION ......................8 COMPATIBLE RECEIVERS/FORMATS ......................8 COMPATIBLE ALARM COMMUNICATORS ...................... 8 FCA2015-U1 EVENT CODES .......................... - Page 5 Possible settings option (Y/N) UL 864 PERIODIC TEST, PROGRAMMING 1 – 24 Hours 1 – 6 Hours RANGE Digital Communication SIA DCS, Ademco SIA DCS, Ademco format Contact ID, 3/1, 4/2 Contact ID Siemens Industry, Inc A6V10334254_en--_g Building Technologies Division...
-
Page 6: Overview
OVERVIEW The FCA2015-U1 Digital Alarm Communicator Transmitter (DACT) Board is an optional module for the Desigo FC2025/2050, FV2025/2050, Cerberus PRO FC922/924, FV922/924, and XLS/Desigo Fire Safety Modular/Cerberus PRO Modular Fire Alarm System Control Panels. The DACT provides telephone line connections for communication with a DACR (Digital Alarm Communicator Receiver). The DACT Board is mounted inside the Fire Alarm cabinet. -
Page 7: Installation On Xls/Desigo Fire Safety Modular/Cerberus Pro Modular
FIRMWARE UPDATE ON XLS/DESIGO FIRE SAFETY MODULAR/CERBERUS PRO MODULAR SYSTEMS To update the firmware on an FCA2015-U1 that is installed on a XLS/Desigo Fire Safety Modular/Cerberus PRO Modular system, establish an Ethernet connection between the PC and the OI, then select the XDACT module in the Zeus configuration. -
Page 8: Fca2015-U1 Format Description
DCS 8 Contact ID *For FM use only The FCA2015-U1 is also compatible with alarm communicators that utilize different communication technologies (IP and GSM technologies) to connect to compatible receivers using compatible protocols listed within this document. COMPATIBLE ALARM COMMUNICATORS... - Page 9 ULC - S 527 Listed Relay To TL - 300 CF + 12 V IN Terminal “IP Path Down” Custom Message HTRI - D Input 1 NOTE: This relay must be listed to ULC S527. Siemens Industry, Inc A6V10334254_en--_g Building Technologies Division...
-
Page 10: Fca2015-U1 Event Codes
FCA2015-U1 EVENT CODES SIA DCS Ademco 1400 Hz or 1400 Hz or Event Type (8 or 20) Contact ID 2300HZ 2300HZ FA pppp 1 110 0p ppp Fire Alarm Fire Alarm Restore (Through Reset) FH pppp 3 110 0p ppp... - Page 11 Red LED on Solid – Line Connection error while dialing out, Line 2, Red LED Flashing DACT Dialing out on Line 2 H202 “RX” DACT receiving information in H203 “TX” DACT Transmitting information out H204 “UP RUN” Green Flashing DACT has heartbeat Siemens Industry, Inc A6V10334254_en--_g Building Technologies Division...
-
Page 12: Fcc Statement
Operation of this equipment in a residential area is likely to cause interference in which case the user at his own expense will be required to take whatever measures may be required to correct the interference. *As per ULC S559, the FCA2015-U1 is classified as an Active Communication System. Siemens Industry, Inc.
