TP-Link TL-EP110 Quick Installation Manual

Quick Installation Guide

1-Port Gigabit EPON Terminal

Connect the Hardware

Register the Terminal

Connect to the Internet

Internet
TL-EP110
7106505534 REV1.0.0
If the EPON LED is solid on, please skip to Connect to the Internet.
If your ISP (Internet Service Provider) has provided you the MAC address, follow Method 1 to register the Terminal, otherwise follow Method 2.
Method 1: Use the MAC address provided by the ISP
1 Open a browser and type http://192.168.1.1 in the address field. Use
admin for both username and password, and then click Login.
2 Go to Network Setting > PON Certification. Enter the MAC address
provided by your ISP into the New MAC field and click Save.
PON Certification
EPON MAC
Establish your Internet connection according to the ISP's specific
instructions.
Note: If you need assistance, contact your ISP.
Power adapter
1
2
Fiber line
3
Ethernet cable
aa:bb:cc:dd:ee:
Old MAC:
New MAC:
Save
Terminal
4
5

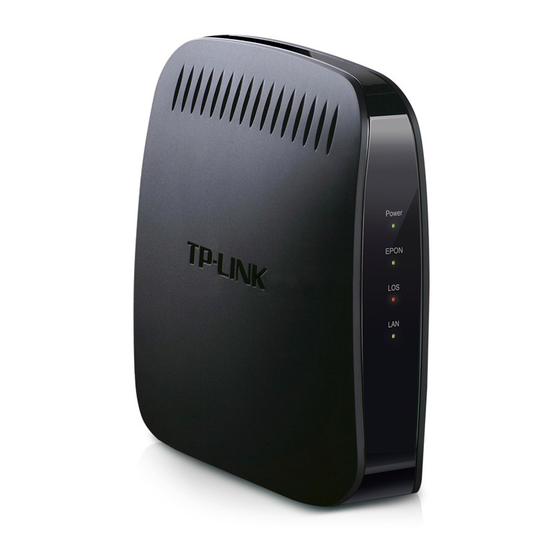

Verify that the hardware connection is
correct by checking these LEDs.
Power: On
EPON: On or Flashing
LOS: O
LAN: On or Flashing
Method 2: Provide the MAC address of your Terminal to the ISP
Provide the MAC address printed on the product label at the bottom
of the Terminal to your ISP to register the Terminal.
MAC address
Enjoy!
Power
EPON
LOS
LAN
