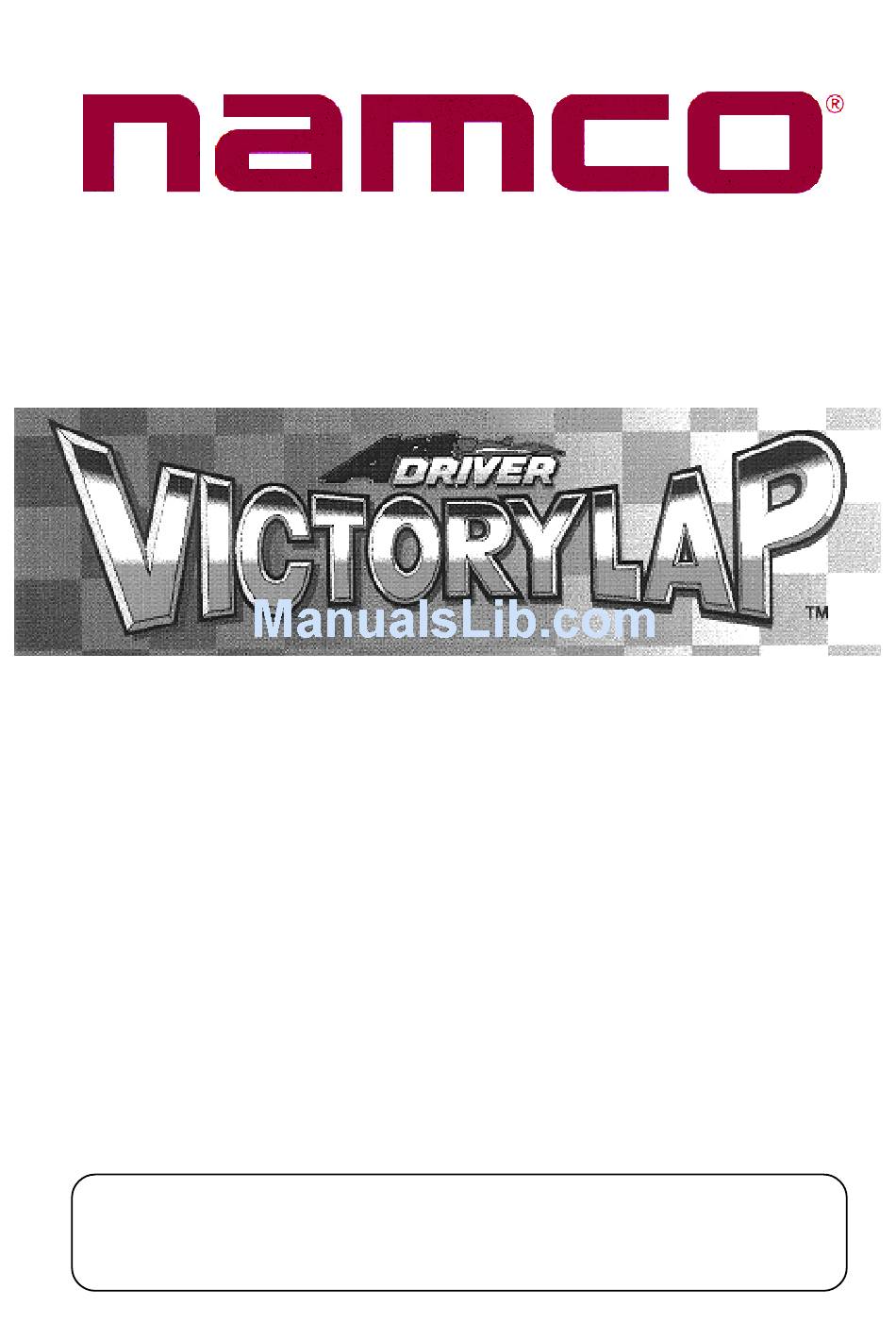

Page 1: Operators Manual
Operators Manual T IS THE RESPONSIBILITY OF THE OPERATOR TO MAINTAIN CUSTOMER SAFETY AT ALL TIMES AND IT IS IMPERATIVE THAT THE DETAILS SET OUT IN THIS MANUAL ARE FOLLOWED PRECISELY Part No. 90500024... - Page 2 NAMCO EUROPE LIMITED While the information contained in this manual is given in good faith and was accurate at the time of publication, NAMCO EUROPE LIMITED reserve the right to make changes and alterations without notice. This machine has been manufactured in accordance with European Community directives (1st.
-
Page 3: Safety Warning
Warnings for Disassembly, Installation, Routine Maintenance and Troubleshooting. DANGER: Namco Ltd. bears absolutely no responsibility for accidents, injury or damage resulting from unauthorized changes to this machine. DANGER: Ensure that the machine has been turned OFF before making adjustments or carrying out maintenance. -
Page 4: Table Of Contents
Contents Operators Manual .................... 1 SAFETY WARNING ..................3 SPECIFICATIONS ..................5 PRECAUTIONS ..................6 Cautions when Transporting................. 6 Cautions when Handling..................6 Cautions when Operating ..................6 Cautions when Installing ..................7 HOW TO PLAY ..................8 MAJOR COMPONENTS ................. -
Page 5: Specifications
1. SPECIFICATIONS POWER SUPPLY :- 230volts AC MONITOR :- Hantarex 28" Polo Colour Monitor with auto degauss. COIN ACCEPTOR:- Mars CashFlow - 4 Channel DIMENSIONS :- Assembled 1396(w) x 1700(d) x 1870(h) Monitor Cabinet 1396(w) x 760(d) x 1870(h) Seat Assembly 470(w) x 940(d) x 1230(h) WEIGHT :- Assembled... -
Page 6: Precautions
Care must be taken at all times to avoid electric shock when inspecting or adjusting the game. 2-3 Cautions when Operating Only parts specified by Namco Ltd. should be used when replacement is necessary. Only operate the machine after checking that has been installed in accordance with the installation details (See 2-4 "Cautions when Installing") -
Page 7: Cautions When Installing
2-4 Cautions when Installing This machine is designed for indoor use only. The game must not be installed outdoors or under the following conditions:- In areas directly exposed to sunlight, high humidity, direct water contact, dust, high heat or extreme cold. In locations that would present an obstacle in the case of an emergency, ie. -
Page 8: How To Play
3. HOW TO PLAY • This machine is a multi-player racing game that allows several people to play at the same time, up to a maximum number of eight. • When two or three players are competing against each other, a computer car is included and competition is between four cars. - Page 9 • After making selections, wait for the empty seat entry. • A linked game starts when all of the connected seats have been entered, or twenty seconds after the first coin/s have been inserted. If there is no entry by another person within the twenty seconds, the game starts as a single player.
-
Page 10: Major Components
4. MAJOR COMPONENTS Page 10... -
Page 11: Installation
5. INSTALLATION 5-1 Connecting the Seat Assemblies to the Main Cabinet Place the main cabinet in its final position. Connect the connectors between the Seat Assembly and Main Cabinet. Fix the Seat Assemblies to the Cabinet using the Joint Plates, M10 hex head screws, flat washers and spring washers taking care not to trap any wires between the Seat Assembly and Cabinet. -
Page 12: Linking Two Or More Machines
6. LINKING TWO OR MORE MACHINES Up to four machines (8 seats) can be linked together. The machines should be linked as described below. NOTE: Each machine can draw up to 3 amps. Make sure that the power supply is adequate. Ensure that the power is "OFF". -
Page 13: Setting The Link Switches
Turn the power to each machine "ON", and set the PCB ID using the test mode. (Refer to section 7-3-2 "Setting the Game Options" (page17)) Note: Settings other than those described will cause the machine to operate incorrectly. 6-1 Setting the Link Switches The link switches are used to set the connection between seats and machines. -
Page 14: Adjustments
7 ADJUSTMENTS 7-1 Turning on the Power After the machine has been installed, turn ON the power. The Power switch is located on the rear of the Main cabinet. (See section 4 "Major Components" (page 10).) 7-2 Adjustment Switches The adjustment switches are located inside the coin door. Service Switch Press this switch to obtain game credits without incrementing the play meters. -
Page 15: Test Mode
7-3 Test Mode Open the coin door and slide the test switch "ON". The "Menu Screen" will be displayed on the monitor. Select the test required by moving the shift lever up or down. The colour of the selected test will change. Enter the selected test by stepping on the accelerator. -
Page 16: Coin Options
7-3-1 Coin Options Select item (1) COIN OPTIONS [DEFAULT IN GREEN] "COIN OPTIONS" on the menu screen, GAME COST to set the game cost 1 COIN 1 CREDIT ... and related settings. COIN1 MECH VALUE Use the shift lever to 1 COIN COUNT AS 1 COIN ... -
Page 17: Game Options
7-3-2 Game Options GAME OPTIONS [DEFAULT IN GREEN] Select item (2) "GAME OPTIONS" on the PCB ID NUMBER ....(a) menu screen to set the game options. TEAM COLOUR BLUE ....(b) Use the shift lever to COURSE SEROW VALLEY ..... (c) select the required item RACE CLASS BEG EXP... - Page 18 ITEM DESCRIPTION FACTORY SET (a) PCB Number The PCB number should be set so that none of the linked positions have the same number (b) Team Colour 25 or 26 BLUE 3 or 4 YELLOW 17 or 18 GREEN 11 or 12 * When more than three sets (6 seats) are linked, different race numbers should be used for the same team colours.
-
Page 19: I/O Test
7-3-3 I/O Test Select item (3) "I/O TEST" on the menu screen. Use the shift lever to select the required item then step on the accelerator. I/O TEST DIP 2 12345678 ... (a) Option Switch (CPU-PCB Sw2) 3 12345678 ... (b) Option Switch (CPU-PCB Sw3) LINK ON 2 COUNT 0 ... -
Page 20: Switch Test
7-3-4 Switch Test The following screen is displayed when "SWITCH" is selected on the I/O screen. I/O TEST 2 12345678 3 12345678 LINK ON 2 COUNT 0 SWITCH (a) Accelerator ....GAS: *0000 COIN 1: OFF ....(e) Coin 1 switch (b) Brake .... -
Page 21: Motor Test
7-3-5 Motor Test Note: Performing the steering motor test can be dangerous, sit on the seat properly, and take hands off the steering wheel. The following screen is displayed when "MOTOR" is selected on the I/O screen. I/O TEST 2 12345678 3 12345678 LINK ON 2 COUNT O... -
Page 22: Monitor Test
7-3-7 Sound Test To adjust the sound volume, select "SOUND TEST" in the menu screen. The following screen will be displayed. SOUND TEST [DEFAULT IN GREEN] VOLUME [MAX 63] LEFT RIGHT (a) Left speaker volume ...... 40 40 ....(b) Right speaker volume SONG EXIT GAS: ENTER... -
Page 23: Adjustments When Replacing Parts (Initialization)
7-4 Adjustments When Replacing Parts (Initialization) The following adjustments should always be performed after replacing the game PC board, ROM, Steering Assy, Pedal Assy, or Control Pots. The game will not operate correctly if these adjustments are not made. Ensure that accelerator and brake pedals are fully returned. Place the steering wheel to it's centre position and remove hands from the wheel ( The steering wheel does not return to centre by itself.) Slide the test switch "ON"... -
Page 24: Maintenance
8. MAINTENANCE 8-1 Replacing the Fluorescent Lamp Remove four Security Button Head Screws (M4x25) and washers from the top of the header acrylic. Remove four Security Button Head Screws (M4x25) from the Acrylic/Glass retaining bracket, and remove the bracket. Remove the Header Acrylic. Replace the Fluorescent Tube. -
Page 25: Ab Pedal Assembly
8-2. AB Pedal Assembly 8-2-1. Removing the AB Pedal Assembly Remove the four security screws (M6x25), and withdraw the assembly forward. Disconnect the connector, and remove the assembly. 8-2-2 Replacing the Control Pots. Loosen the quadrant gear clamp screw, and remove the quadrant gear. Loosen the gear grub screw, and remove the gear. -
Page 26: Shift Assembly Maintenance
8-3. Shift Assembly Maintenance Removing the Shift assembly a). Remove the four security screws (M6x16), and withdraw the shift assembly. b). Disconnect the connector. Replacing the Microswitch a) Remove the two pozi head screws (M3x16), and replace the switch. b) Ensure that the switch is refitted the correct way round and the wires are fitted to correct terminals. -
Page 27: Replacing The Control Pot
8-4-1 Replacing the Control Pot Disconnect the Control Pot connector. Loosen the grub screw . Take care not to remove the screw completely. Loosen the pozi head screw retaining the Control Pot bracket and remove the bracket with the Control Pot . Replace the Control Pot. -
Page 28: Parts
9. PARTS Page 28... - Page 29 ITEM DESCRIPTION PART No EVA Floor Mat 45000184 28" Polo Monitor 84000026 Front Glass 31000024 Side Decal - RHS 45000337 M16 Adjustable Foot 88300079 Castor - 75mm 59000005 Side Decal - LHS 45000336 Victory Lap PCB Assembly XVL - PCB Schaffner Mains Input Assembly 66000016 Link PCB Assembly...
- Page 30 ITEM DESCRIPTION PART No FLUORESCENT TUBE - 4ft 64500014 HEADER ACRYLIC 24201027 E14 240v 25w GOLFBALL LAMP 64000084 Page 30...
- Page 31 Oil Embossed Logo 40000304 Credit Available When Lit Button 60200215 Steering Wheel - 10" Mountney Black Vinyl 88800068 Steering Wheel Centre Cap XAD-463-414E Namco Embossed Logo XAD-295-011 Hi/Low Shifter Assembly X294-700 Play Instruction Decal 40000338 Champion Points Mode Decal 40000340...
- Page 32 59000005 EVA Floor Mat 45000176 Loudspeaker 4½" 20watt 62000006 Speaker Plate - LHS - Black 88300603 Speaker Plate - RHS - Black 88300604 Decal - Seat Rear 40000334 Seat Base Rear Decal 40000335 Decal Namco Base Rear 40000036 Page 32...
- Page 33 ITEM DESCRIPTION PART No Pedal Assembly - Complete 88800067 Return Spring 88800050 Control Pot 88800053 Drive Gear 88800052 Quadrant Gear 88800051 Page 33...
-
Page 34: Shematic
10 SHEMATIC Page 34... - Page 35 Page 35...
