- Page 1 METEOROLOGICAL INSTRUMENTS INSTRUCTIONS WIND TRACKER MODEL 06201 R.M. YOUNG COMPANY 2801 AERO PARK DRIVE, TRAVERSE CITY, MICHIGAN 49686, USA TEL: (231) 946-3980 FAX: (231) 946-4772 WEB: www.youngusa.com PN: 06201-90 REV: K111215...
-
Page 2: Specifications

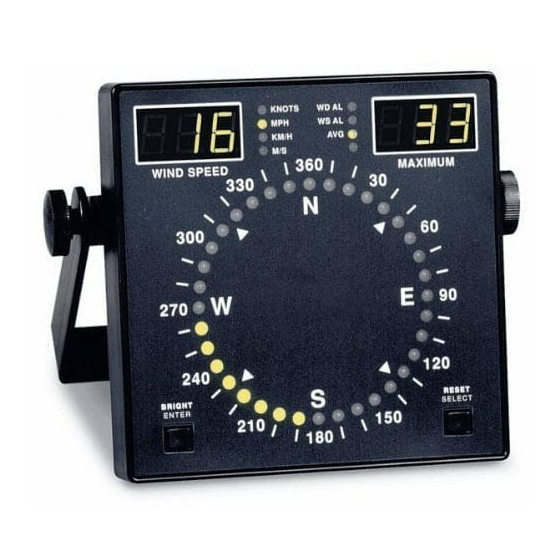

INTRODUCTION MODEL 06201 WIND TRACKER The YOUNG Model 06201 Wind Tracker is a compact wind speed and direction display with advanced features for use in a wide range of applications. FEATURES • 3-digit wind speed display • 3-digit maximum wind speed or wind direction display •... -
Page 3: Factory Default Settings
Input / Sensor Type Wind Sentry Wind Monitor-Jr Wind Monitor Wind Monitor-AQ Wind Monitor-SE or YOUNG sonic anemometer Serial input when used as remote display Line Driver 4-20mA input (0-100 m/s) Wind Monitor HD Line Driver 4-20mA input (0-50 m/s) Wind Speed Units (annunciator blinks) SELECT key changes units. -
Page 4: Error Messages
RS-485 terminals as shown in wiring diagrams. Remote Wind Trackers display exactly the same information as the master including alarm states. MAX RESET and all display features are controlled by the master unit only. Brightness can be adjusted independently at each Wind Tracker display. 06201-90(K) Page 3... -
Page 5: Emc Compliance
Liability is limited to repair or replacement of defective item. A copy cause harmful interference, and (2) this device must accept any of the warranty policy may be obtained from R. M. Young Company. interference received, including interference that may cause undesired operation. - Page 6 WIRING DIAGRAMS 06201-90(K) Page 5...
- Page 7 WIRING DIAGRAMS 06201-90(K) Page 6...
- Page 8 WIRING DIAGRAMS 06201-90(K) Page 7...
- Page 9 WIRING DIAGRAMS Master-Remote Display Wiring Example 06201-90(K) Page 8...
