Using the DIGITAL LINK Jack

For stereo applications, you can connect two C valves together by using the

DIGITAL LINK jack. The DIGITAL LINK jack is a 1/4-inch TRS (TIP, RING,

SLEEVE) connector providing a balanced input that is connected directly to the

C valve right channel input of the A-to-D converter. Since the C valve's signal

is internally connected to the left A-to-D converter input, the signal from the

second C valve's OUTPUT can be connected the DIGITAL LINK jack of the

first unit to feed the right channel of the first C valve's A-to-D converter. Now

use the S/PDIF output on the first C valve as one stereo digital output. The

signal from the first C valve (or the left channel) is being carried on the left side

of S/PDIF output and the signal from the second C valve (or the right channel)

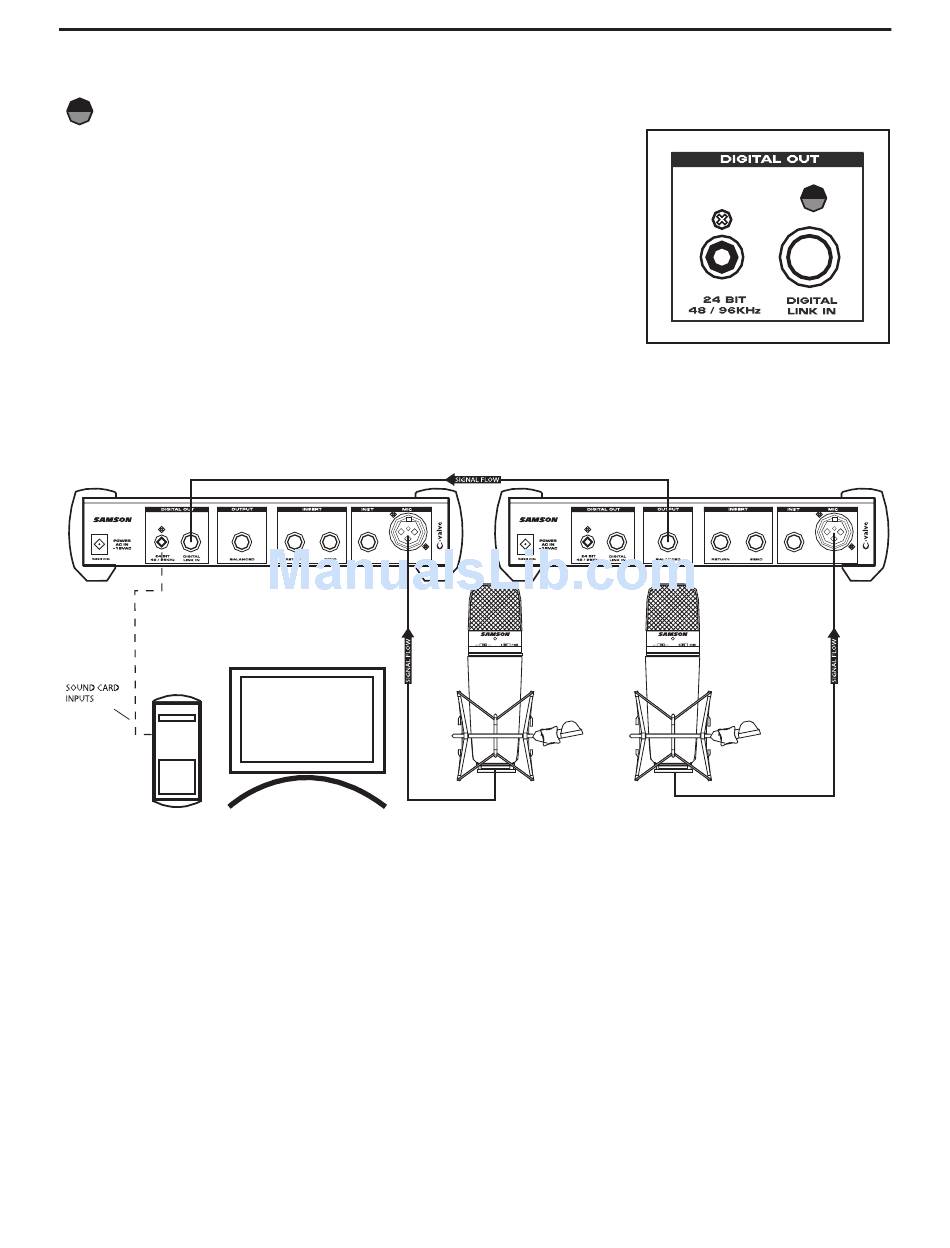

is being carried on the right side of the S/PDIF output. The following diagram shows a typical hook-up for con-

necting two C valves with one stereo digital output.
