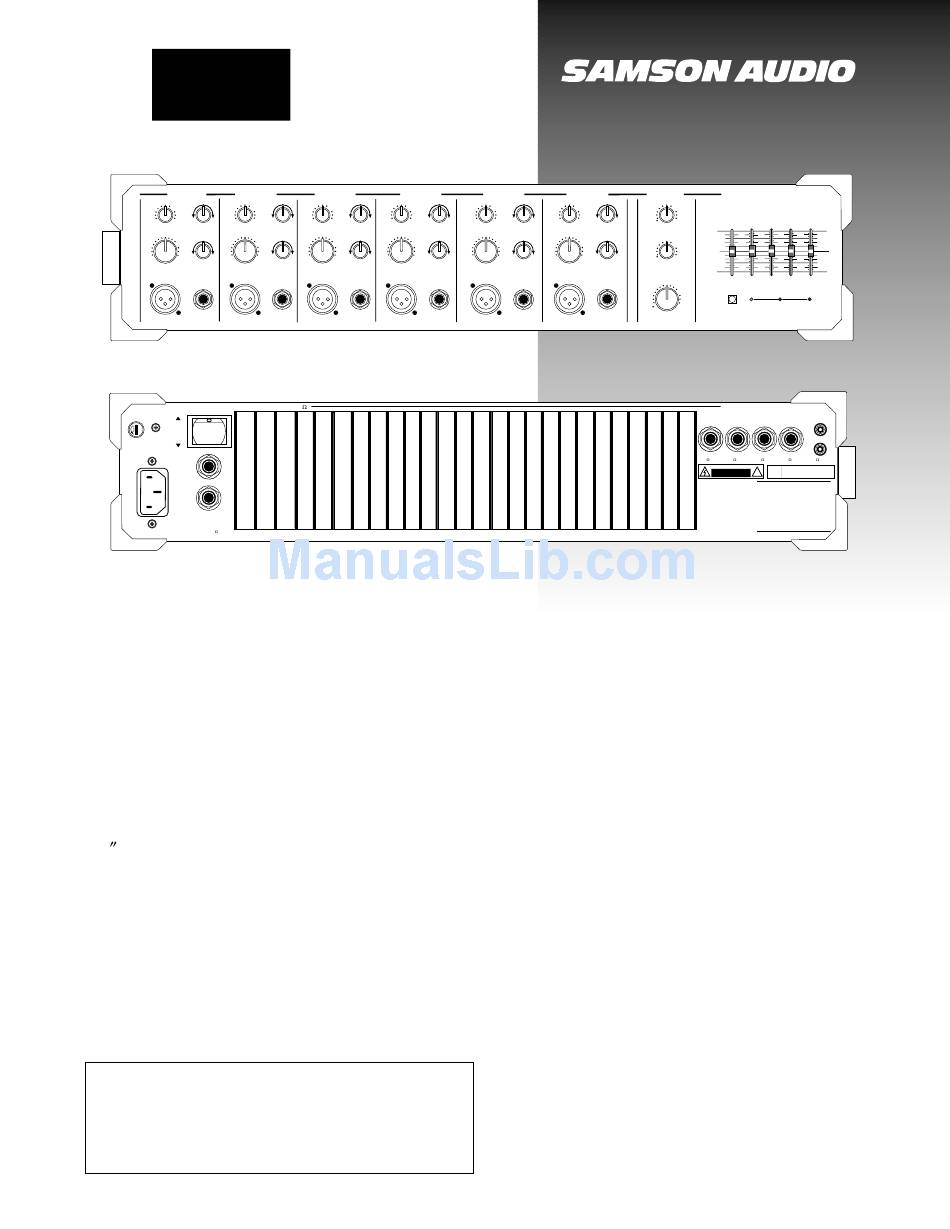

Samson Mixer S62 Specification Sheet

S62 MIXER
A M P L I F I E R
CHANNEL 2
CHANNEL 1
0
0
+10 -15 +15 +10
HIGH
AUX REVERB AUX REVERB
0 0
-15 +15
+10 +10
LOW
LEVEL LEVEL
LINE
MIC MIC
S62 MIXER AMPLIFIER 150 WATTS 4
FUSE
POWER
5A/250V
ON
OFF
SPEAKER
~AC INPUT
OUTPUT
120V,60Hz
MIN 4
135W

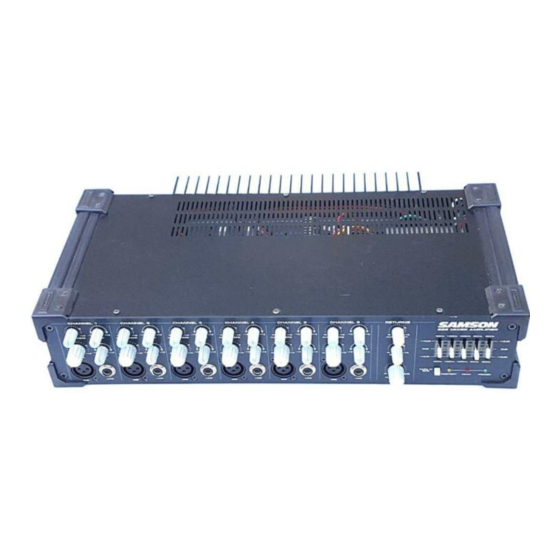

The S62 Mixer Amplifier is a monophonic 6-input
mic/line mixer with a dedicated power amp producing
150 W into 4 ohms. Highly portable or easily installed
into a rack, the S62 is equipped with 2-band equalization
on each channel and a 5-band graphic EQ on the main
output. The S62 is an ideal all-in-one device for recording,
live concert and contracting applications. It also features
6 electronically balanced mic/line inputs (XLR-type and
1/4 connectors), a CD/tape input (phono connectors),
switchable 48 V phantom power, internal reverb, an Aux
send and return, along with amp in and preamp and
monitor out patch points.
Contact:
Samson Technologies Corp., P.O. Box 9031, Syosset, NY 11791-9031 • Phone: (516) 364-2244 • Fax: (516) 364-3888 • www.samsontech.com
CHANNEL 3 CHANNEL 4
0 0
-15 +15 +10 -15 +15 +10 -15 +15
HIGH HIGH HIGH
AUX REVERB AUX REVERB
0 0
-15 +15 -15 +15 -15 +15
+10 +10
LOW LOW LOW
LEVEL LEVEL
LINE LINE LINE
MIC MIC
CHANNEL 5 RETURNS
CHANNEL 6
0 0
+10 -15 +15 +10 -15 +15
HIGH HIGH
AUX REVERB AUX REVERB
0 0
-15 +15 -15 +15
+10 +10
LOW LOW
LEVEL LEVEL
LINE LINE
MIC MIC
• 6 balanced mic/line-input channels.
• Independent CD/tape input; signal is routed via
channel EQ.
• Power: 150 W into 4 ohms.
• Built-in 3-spring reverb.
• 2-band equalization on all channels.
• 5-band graphic master EQ.
• Master peak LED.
• 1 Aux send per channel.
• 1 Aux return with front-panel level control.
• 48 V phantom power selectable for mic input
connectors.
• Protection relay circuitry to prevent noise when
powering on.
• 2 speaker outputs.
• Extremely portable format with carry handle and
protective corners.
• Rackmountable with rack ears included.
• Rear-panel amp in and preamp output.
• Master reverb level control.
SAMSON
0
S62 MIXER AMPLIFIER
+10 30Hz 120Hz 480Hz 2Khz 8Khz
AUX EFFECT
+15db +15db
0
0dB 0dB
+10
REVERB
-15db -15db
30Hz 120Hz 480Hz 2Khz 8Khz
0
TAPE IN
CH 6
+10 PROTECT PEAK POWER
MAIN LEVEL
SAMSON
AUX EFFECT AUX CD/TAPE IN
AMP IN PRE-OUT SEND
RETURN
L
R
(1oK +4dBu) (<75 +4dBu) (10K +4dBu) (<75 +4dBu) (10K -10dBu)
CAUTION
!
RISK OF ELECTRIC SHOCK S / N
DO NOT OPEN
AVIS:
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
DO NOT EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE
NOTICE:
ALL MIC INPUT XLR PHANTOM
POWERED.
