Moxa Technologies Transio TCC-80 V2.2 User Manual

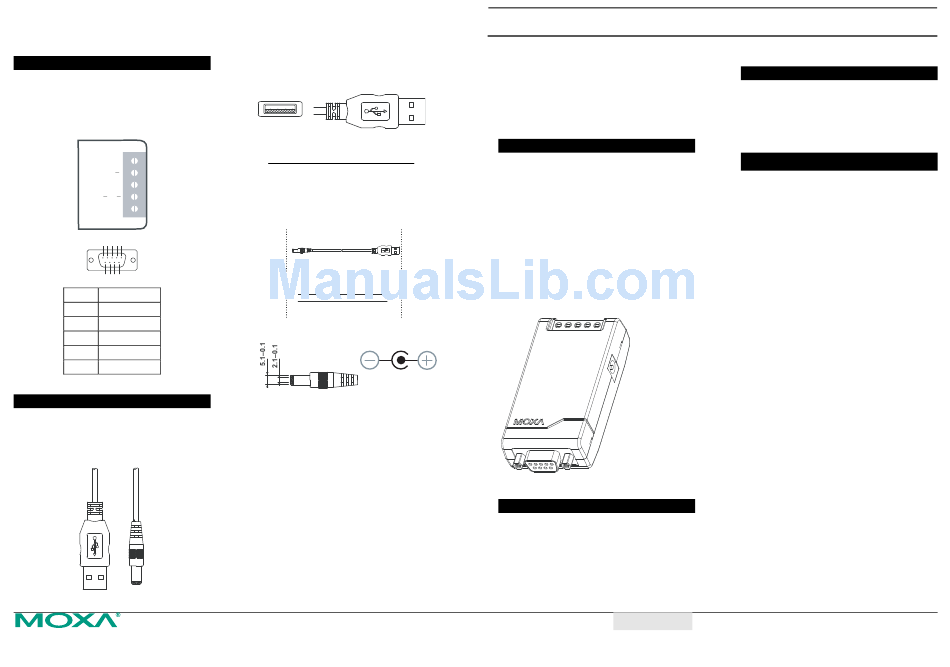

RS-422/RS-485 Pinouts
The RS-422/RS-485 port with terminal block
connector is shown below. Note that some
RS-422/485 devices "B" instead of "+" and use "A"
instead of "-". That is, Data (B) equals Data (+), and
Data (A) equals Data (-).
T +
T
R + D / +
R D /
G N D
1 2 3 4 5
6 7 8 9
PIN RS-422/485
1 T+
2 T-
3 R+/D+
4 R-/D-
5 GND
USB Power Cord
The TCC-80 can be connected to a standard 5 to 12
VDC power supply, or you may use the USB
Power Cord CBL-USBAP-50 if additional
external power is required.
www.moxa.com
Moxa Inc.
USB "A" Male Connector
F o r n : t T o : p
4 3 2 1
TCC-80
USB Connector
Connector Pinouts Signals
1 +5 VDC
2 --
3 --
4 GND
D C P o w r e P u l g U S B
U S B H o t s
T C C 8 - 0
A T y p e F e m
C B - L U S B A P 5 - 0
C a b e l W r i n i g
n i n r e 1 + 5 V D C
o t u r e 4 G N D
1 2 V D C
1 0 m A ( m a x ) .
Transio TCC-80/80-DB9 User's Manual
Serial Port Powered Media Conversion Solution
Transio TCC-80 V2.2 /
TCC-80-DB9 V1.0
Self-powered RS-232 to RS-422, 2-wire/4-wire
RS-485 bi-directional converter with 15 KV ESD
protection

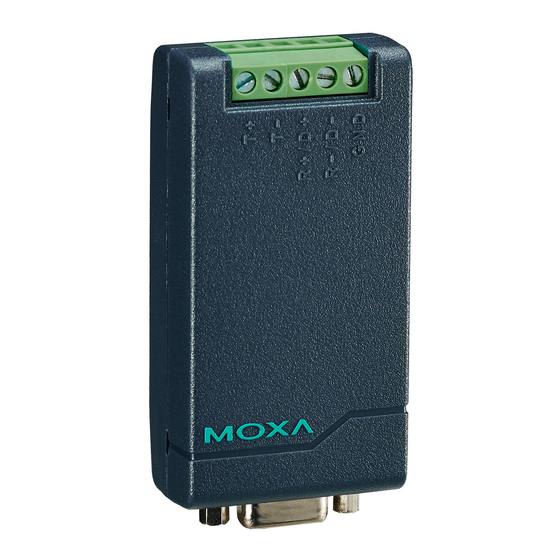

Overview
The TCC-80, which is powered by the RS-232 port,
provides complete signal conversion between
RS-232 and RS-422/485 devices. The TCC-80
converts back and forth between RS-232's TxD and
RxD lines, and either half duplex RS-485 or the
balanced signal of full duplex 4-wire RS-422/485.
In addition, the TCC-80 provides comprehensive 15
KV ESD protection for all serial lines. The TCC-80
is also designed to provide RS-485 auto data
a e l
direction control, in which the RS-485 driver is
enabled automatically when the circuitry senses the
TxD output from the RS-232 signal. Programming
is not required to control the transmission direction
of the half duplex RS-485 signal.
Package Checklist
• TCC-80 or TCC-80-DB9
• USB Power Cord
• User's Manual
P/N: 1802000800011
Applications
• Multipoint data acquisition
• Factory automation
• Remote serial device control
• Building security automation
• Critical industrial control
Features and Specifications
• Serial interfaces: RS-232, RS-422, and
2-wire/4-wire RS-485.
• Port types: Female DB9 for RS-232; Terminal
Block for RS-422/485
• Compact size.
• Auto senses baudrates up to 115.2 Kbps.
• Signals:
RS-232: TxD, RxD, GND
RS-422: TxD+ (B)/-(A), RxD+ (B)/-(A), GND
RS-485: Data+ (B)/-(A), GND
• RS-232 loopback:
RTS to CTS, and DTR to DSR and DCD.
• Supports automatic RS-485 data direction control
with no baudrate switch settings for RS-485.
• 15 KV ESD protection for all RS-232/422/485
signals.
• Built-in 120 ohm termination resistors for
RS-422/RS-485 (DIP switch selectable).
• Supports up to 32 units connected in an RS-485
multi-drop network.
• Serial Power Source: TxD, RTS, or DTR.
• External Power (jack): DC +5V to +12V adaptors
or a USB power cord (DC +5V).
• Operating temperature: 0 to 60°C (32 to 140°F).
• Dimensions: 42 × 80 × 22 mm.
• Case: ABS + PC.
• Weight: 50 ± 5 g.
• CE, FCC Class B approval.
• Power Consumption: 10 mA at +5 VDC
(termination disabled).
• Warranty: 5 years.
Third Edition.
©2008 Moxa Inc.
All rights reserved.
