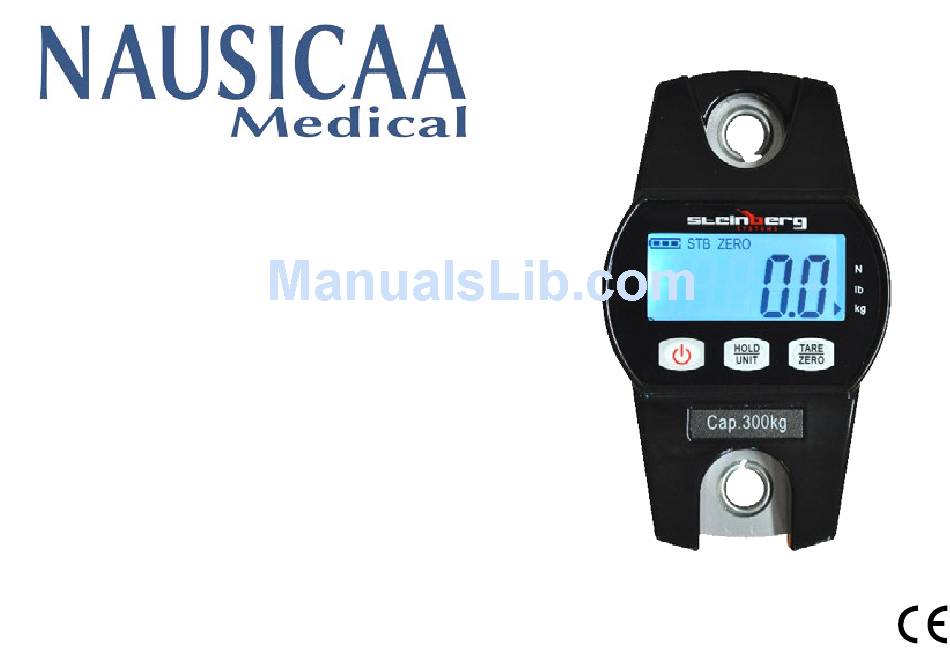

- Page 1 NAUSICAA WEIGHING SYSTEM ACCURACY : 100 g WEIGHT CAPACITY : 300 kg User Manual : NAUSICAA WEIGHING SYSTEM Distributed by NAUSICAA Médical S.A.S. / Approved by Ghizlane Labrosse (Biomedical Engineer) v03.04/17...
-
Page 2: Table Of Contents
• Battery Change • Warranty 12-13 Manufacturer : EXPONDO GmbH An den Treptowers 1 D-12435 BERLIN - ALLEMAGNE Distributed by NAUSICAA Médical S.A.S. User Manual : NAUSICAA WEIGHING SYSTEM Distributed by NAUSICAA Médical S.A.S. / Approved by Ghizlane Labrosse (Biomedical Engineer) -
Page 3: Assembling Instructions
- Disassemble the spreader bar and its vertical axis Step 2B : With simple hook - Insert the weighing system at the center of the fixation. User Manual : NAUSICAA WEIGHING SYSTEM Distributed by NAUSICAA Médical S.A.S. / Approved by Ghizlane Labrosse (Biomedical Engineer) - Page 4 - Mount the spreader bar on the lower part of the weighing system with the vertical axis and its fixation. Step 4 : - Close the spreader bar protection. User Manual : NAUSICAA WEIGHING SYSTEM Distributed by NAUSICAA Médical S.A.S. / Approved by Ghizlane Labrosse (Biomedical Engineer)
-
Page 5: Assembling Instructions
Assembling Instructions DIRECTIONS FOR USE : • Your weighing system is designed to weight people, do not use it for other purposes. • Check that the patient’s weight does not exceed the maximum weight that can be raised by the weighing system. -
Page 6: Instructions For Use
Instructions for Use The weighing system must be used with a well-balanced and stable load. Step 1 : POWER ON - Press _ for 1 second to boot up, battery tests and initializes. - - - - - 8.8.8.8.8 STB ZERO TARE HOLD... - Page 7 Instructions for Use The weighing system must be used with a well-balanced and stable load. Step 3 : TARE - Press _ to store weight as tare. TARE ZERO -“TARE” shows and weight turns zero. - If weight is over 100% of the measuring range, or less than 0, tare is not allowed.
- Page 8 Instructions for Use The weighing system must be used with a well-balanced and stable load. Step 5 : UNIT SWITCH - Press _ for 1 second to switch measuring HOLD UNIT unit between kg, lb and N. - If scale is tared, or held, unit switching is not allowed.
-
Page 9: Instructions For Use
Instructions for Use The weighing system must be used with a well-balanced and stable load. Step 7 : SETTING 1 / AUTO OFF (oFF) - Press _ and _ simultaneously and hold HOLD TARE UNIT ZERO two buttons for 1 second, to enter Setting Mode. -
Page 10: General Safety Guidelines
6. Do not expose the Weighing System to direct sunlight or heat. 7. Ensure that no moisture enters the electrical system. 8. The Weighing System should not be used as soon as abnormal noises, damages or any other mal- functions occur. In this case, inform us. -
Page 11: Cleaning & Maintenance
• Check the good fonctioning of the commands. • Clean the commands buttons with a dry cloth, if needed with a wet cloth. User Manual : NAUSICAA WEIGHING SYSTEM Distributed by NAUSICAA Médical S.A.S. / Approved by Ghizlane Labrosse (Biomedical Engineer) -
Page 12: Troubleshooting Guide
Large error in weight reading. • Re-calibration needed. • Re-calibrate the scale. • Improper unit. • Switch to proper unit. User Manual : NAUSICAA WEIGHING SYSTEM Distributed by NAUSICAA Médical S.A.S. / Approved by Ghizlane Labrosse (Biomedical Engineer) -
Page 13: Battery Change
Change the 3 batteries with the correct polarity. c) Close the trapdoor and carry out a test. User Manual : NAUSICAA WEIGHING SYSTEM Distributed by NAUSICAA Médical S.A.S. / Approved by Ghizlane Labrosse (Biomedical Engineer) -
Page 14: Warranty
Warranty • Article 1 : NAUSICAA Médical S.A.S. warrants this product against any defects in manufacturing and assembly of mechanical and electronic components. This warranty is for devices used only in accordance with NAUSICAA Médical S.A.S. terms of use. The warranty covers all electrical parts, except breakage. -
Page 15: Warranty
6 months from the date of repair or sending of the spare parts. • Article 10 : No distributor can unilaterally change the terms of this warranty. User Manual : NAUSICAA WEIGHING SYSTEM Distributed by NAUSICAA Médical S.A.S. / Approved by Ghizlane Labrosse (Biomedical Engineer) -
Page 16: Distributed By Nausicaa Médical S.a.s
Phone : +33 (0) 466 717 184 Fax : +33 (0) 466 532 305 Mail : export@nausicaa-medical.com Web : www.nausicaa-medical.eu Distributed by NAUSICAA Medical S.A.S. 12 allée du Piot - ZA Pôle Actif - 30660 GALLARGUES LE MONTUEUX - FRANCE...
