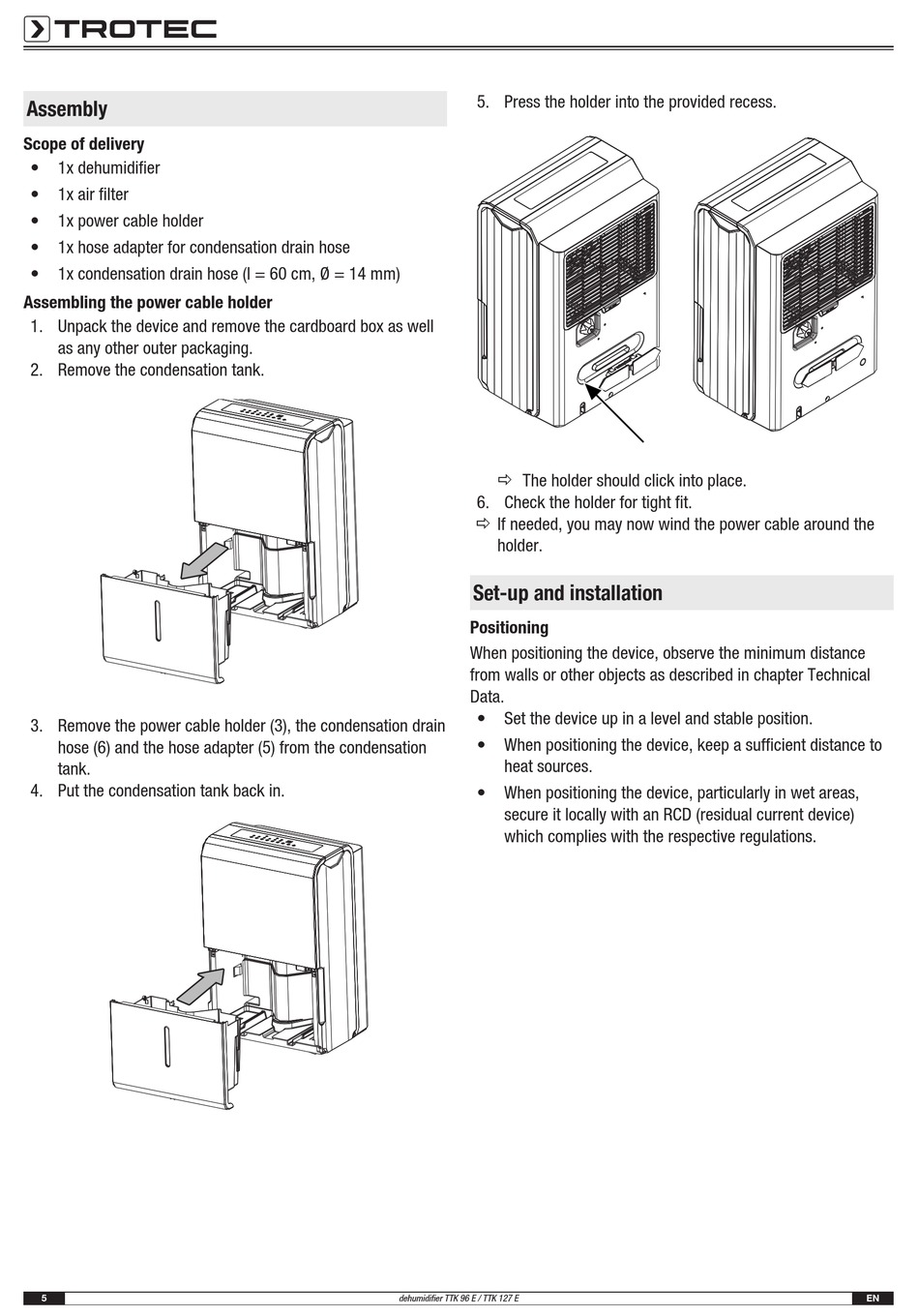

Assembly

Scope of delivery
• 1x dehumidifier
• 1x air filter
• 1x power cable holder
• 1x hose adapter for condensation drain hose
• 1x condensation drain hose (l = 60 cm, Ø = 14 mm)
Assembling the power cable holder
1. Unpack the device and remove the cardboard box as well
as any other outer packaging.
2. Remove the condensation tank.
3. Remove the power cable holder (3), the condensation drain
hose (6) and the hose adapter (5) from the condensation
tank.
4. Put the condensation tank back in.
5
5. Press the holder into the provided recess.
ð The holder should click into place.
6. Check the holder for tight fit.
ð If needed, you may now wind the power cable around the
holder.

Set-up and installation

Positioning
When positioning the device, observe the minimum distance
from walls or other objects as described in chapter Technical
Data.
• Set the device up in a level and stable position.
• When positioning the device, keep a sufficient distance to
heat sources.
• When positioning the device, particularly in wet areas,
secure it locally with an RCD (residual current device)
which complies with the respective regulations.
