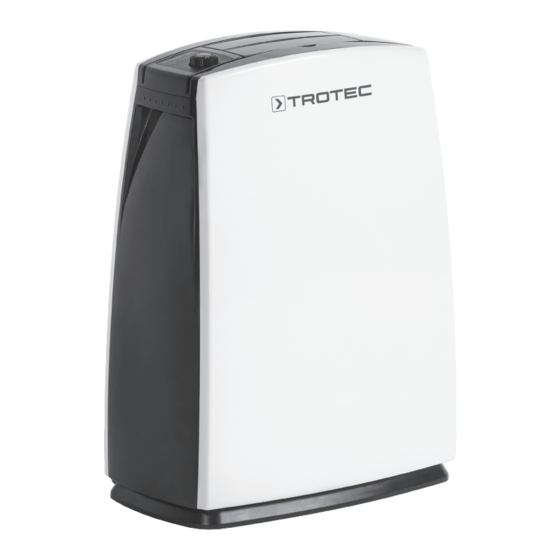

- Page 1 TTK 29 E / TTK 51 E / TTK 70 E OPERATING MANUAL DEHUMIDIFIER...
-
Page 2: Table Of Contents
Declaration of conformity ............ 15 and colour are reserved. The scope of delivery may vary from product images. This ® document was created with all due care. TROTEC accepts no Notes regarding the operating manual liability whatsoever for possible mistakes or omissions. -
Page 3: Information About The Device
Device depiction Information about the device Description of the device This device uses the principle of condensation to automatically dehumidify rooms. The fan sucks damp room air through the air inlet (5) and the air filter. The air is cooled until it is under the dew point. The water vapour contained in the room air precipitates on the evaporator fins and is discharged in form of condensate. - Page 4 Technical data Parameter Value Model TTK 29 E TTK 51 E TTK 70 E Dehumidifying capacity, max. 10 l 16 l 20 l Operating temperature 5 to 32 °C Air flow rate, max. 110 m³/h 126 m³/h 135 m³/h Electric connection 220 to 240 V / 50 Hz Power consumption, max.
-
Page 5: Safety
Personnel qualifications Safety People who use this device must: Read this manual carefully before starting or using the • be aware of the dangers that occur when working with device. Store the manual near the device or its site of use! electric devices in damp areas. -
Page 6: Transport
Transport Operation To make the device easier to transport, it is fitted with wheels and Positioning recessed handles. When positioning the device, observe the minimum distance from walls or other objects as described in chapter Technical Data. Before transporting the device, proceed as follows: 1. - Page 7 Setting the humidity level Operating elements Note: The selected humidity value must be lower than the current humidity level in the room where the device is positioned. • Adjust the desired humidity level via the rotary switch (12). The following table contains guide values for the settings: Rotary switch position Guide value for humidity CONT.
- Page 8 Emptying the condensation tank Operation with hose attached to the condensation connection 1/2″ Operating Manual – Dehumidifier TTK 29 E / 51 E / 70 E...
-
Page 9: Errors And Faults
• Wait for 10 minutes before restarting the device. If the device is not starting, have the electrics checked by a specialist company for cooling and air-conditioning or by TROTEC®. The device runs but forms no condensation: • Check the float in the condensation tank for damages. If necessary, clean the float and condensation tank. -
Page 10: Maintenance
Maintenance Maintenance intervals at least every at least every at least every at least annu- Maintenance and care interval before every start as needed 2 weeks 4 weeks 6 months ally empty condensation tank check air inlets and outlets for dirt and foreign objects and clean if necessary clean housing visually check the inside of the device for dirt... - Page 11 4. If you see a thick layer of dust, have the inside of the device cleaned by a specialist company for cooling and ® air-conditioning or by TROTEC 5. Put the air filter back in. Operating Manual – Dehumidifier TTK 29 E / 51 E / 70 E...
- Page 12 Cleaning the air filter Caution! Ensure that the air filter is not worn or damaged. The corners and edges of the air filter must not be rounded or misshaped. Before reinserting the air filter, ensure that it is dry and is not damaged! Read the chapter Maintenance intervals and replace the air filter in due time!
- Page 13 Overview and list of spare parts TTK 29 E Note! The position numbers of the spare parts differ from those describing the positions of other parts mentioned in this operating manual. No. Spare part No. Spare part No. Spare part front panel humidity switch round filter...
- Page 14 TTK 51 E Note! The position numbers of the spare parts differ from those describing the positions of other parts mentioned in this operating manual. No. Spare part No. Spare part No. Spare part front panel left side panel capillary...
- Page 15 TTK 70 E Note! The position numbers of the spare parts differ from those describing the positions of other parts mentioned in this operating manual. No. Spare part No. Spare part No. Spare part front panel pvc gasket evaporator show pcb condenser fan motor control panel...
-
Page 16: Disposal
