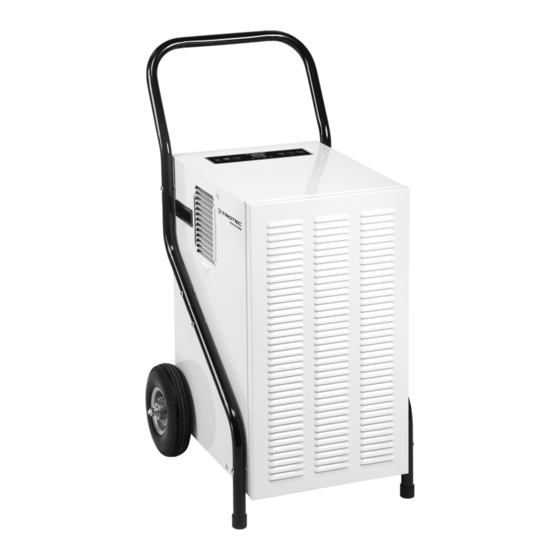

- Page 1 TTK 171 ECO ORIGINAL INSTRUCTIONS DEHUMIDIFIER...
-
Page 2: Table Of Contents
• Check accessories and connection parts for possible Follow the manual damage prior to every use of the device. Do not use any Information marked with this symbol indicates that the defective devices or device parts. instructions must be observed. dehumidifier TTK 171 ECO... - Page 3 Keep all safety signs, stickers and labels in legible condition. • Only transport the device in an upright position with an emptied condensation tank or drain hose. • Discharge the collected condensate before transport and storage. Do not drink it. Health hazard! dehumidifier TTK 171 ECO...
-
Page 4: Information About The Device
Because of the heat radiation generated during operation, the room temperature may rise slightly. Furthermore, the device can be switched on and off automatically with time delay. The according number of hours can be set in hourly increments (1 h to 24 h). dehumidifier TTK 171 ECO... - Page 5 Device depiction Designation Transport handle Operating element Recessed handle Transport wheel Feed-through for condensation drain hose Air outlet Condensation tank Venting slots Power cable holder Foot Air inlet with air filter dehumidifier TTK 171 ECO...
-
Page 6: Transport And Storage
• Leave the device to rest for 12 to 24 hours, so the refrigerant can accumulate within the compressor. Wait 12 to 24 hours before switching the device back on! Acting contrary might lead to compressor damage and a malfunctioning device. If so, any warranty claims will be voided. dehumidifier TTK 171 ECO... - Page 7 Prior to initial start-up, the transport handle must be attached to the device. To do so, please proceed as follows: 1. Mount the transport handle (1) to both feet (10) using two screws. 3. Then mount the wheels. dehumidifier TTK 171 ECO...
- Page 8 • Make sure that no curtains or other objects interfere with the air flow. • When positioning the device, particularly in wet areas, secure it locally with an RCD (residual current device) which complies with the respective regulations. dehumidifier TTK 171 ECO...
- Page 9 Without the air filter, the inside of the device will be correctly. heavily contaminated. This could reduce the performance and result in damage to the device. • Make sure that the air filter is installed before switching the device on. dehumidifier TTK 171 ECO...
-
Page 10: Operation
(1 h to 24 h) 20 Timer button For enabling or disabling the automatic switch-on timer function For enabling or disabling the automatic switch-off timer function 21 On / Off button For switching the device on or off dehumidifier TTK 171 ECO... - Page 11 After a power failure during operation the device will automatically be switched back on. The selected settings are saved. Auto stop function If the water tank is full, not inserted correctly or the relative room humidity has been reached, the device will stop automatically. dehumidifier TTK 171 ECO...
- Page 12 • If the device is disconnected from the power supply, all settings for automatic switch-on are deleted. • Manually switching the device on disables the automatic switch-on function. • If you select 0 hours, the timer will be off. dehumidifier TTK 171 ECO...
-
Page 13: Available Accessories
• From the outside, check the condenser for dirt (see chapter Maintenance). If the condenser is dirty, have it Errors and faults cleaned by a specialist company or by Trotec. The device has been checked for proper functioning several • When using the condensate pump: Check the times during production. - Page 14 Only then switch the device back on. Your device still does not operate correctly after these checks? Please contact the customer service. If necessary, bring the device to a specialist company for cooling and air-conditioning or to Trotec for repair. dehumidifier TTK 171 ECO...
-
Page 15: Maintenance
Check the air filter for dirt and foreign objects and clean or replace if necessary Replace the air filter Check for damage Check the attachment screws Test run Empty the condensation tank and drain hose dehumidifier TTK 171 ECO... - Page 16 10. Date: ........11. Date: ........12. Date: ........Signature: ........ Signature: ......... Signature: ......... Signature: ......... 13. Date: ......... 14. Date: ........15. Date: ........16. Date: ........Signature: ........ Signature: ......... Signature: ......... Signature: ......... dehumidifier TTK 171 ECO...
- Page 17 3. Allow the filter to dry completely. Do not insert a wet filter Refrigerant circuit into the device! • The entire refrigerant circuit is a maintenance-free, hermetically sealed system and may only be maintained or repaired by specialist companies for cooling and air-conditioning or by Trotec. dehumidifier TTK 171 ECO...
- Page 18 • Reconnect the device to the mains. If you do not intend to use the device for a considerable time: • Store the device according to the Storage chapter. 2. Empty the condensation tank over a drain or sink. dehumidifier TTK 171 ECO...
-
Page 19: Technical Annex
Sound pressure level 60 dB(A) Dimensions (length x width x 525 x 450 x 900 mm height) Minimum distance to walls and other objects A: top 50 cm B: rear 50 cm C: side 50 cm D: front 50 cm Weight 36.5 kg dehumidifier TTK 171 ECO... -
Page 20: Declaration Of Conformity
Declaration of conformity In accordance with the EC Machinery Directive 2006/42/EC, Annex II, part 1, Section A Herewith, we – Trotec GmbH & Co. KG – declare that the machinery designated below was developed, constructed and produced in compliance with the requirements of the EC Machinery Directive in the version 2006/42/EC. - Page 21 Trotec GmbH & Co. KG Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
