Intova x4k Quick Start Manual

4
X
:
FCC STATEMENT
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
» Reorient or relocate the receiving antenna.
» Increase the separation between the equipment and receiver.
»
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
» Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate
the equipment.
K

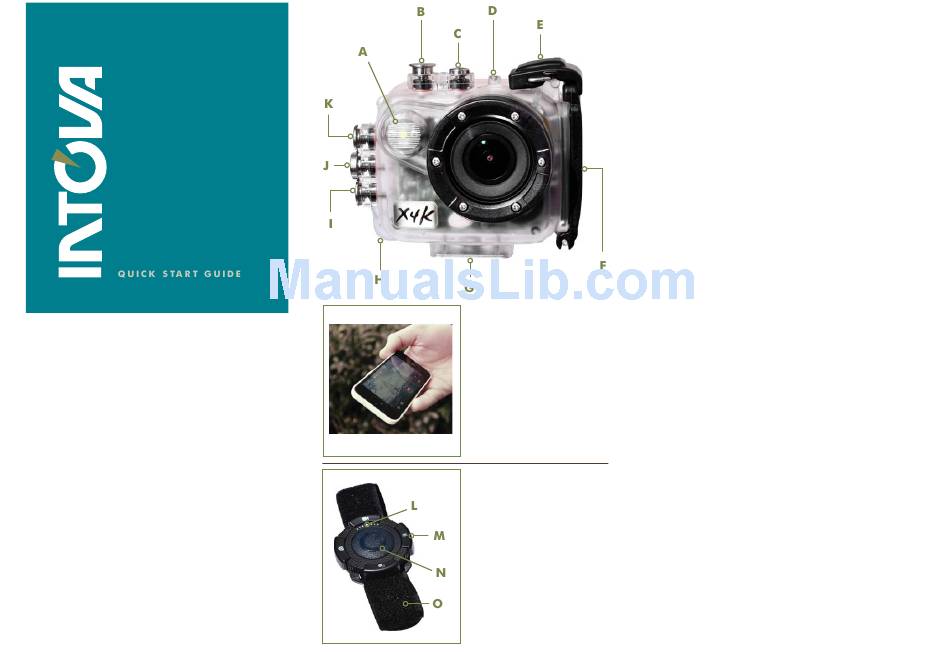

B U T T O N S A N D I N T E R F A C E
A. LED Video Light/Flash
B. Shutter Button
» Video mode: start/stop
» Photo mode: shutter button.
»
»
C. Power/Mode Button
» Power the camera on/off
» Select Video/Photo/View mode
» View mode: view thumbnails,
» Video/Photo Menus: exit menus/
» Playback menu: exit menu and
D. Indicator Light
» Red LED is ON while charging
WIFI REMOTE FUNCTION
(For use above water/on land only)
SPECIFICATIONS AND PRECAUTIONS
»
1. Download & install INTOVA WiFi app
onto an iOS or Android wireless device
such as a smart phone or tablet.
»
2. Turn on camera's WiFi by pressing
and holding MENU button for 2 sec
until "X" disappears from WiFi icon »
on lower left corner of LCD screen.
3. Connect to X4K camera
WiFi signal: INTOVA X4K
Password: 1234567890
»
4. Open INTOVA WiFi app to
control camera.
2.4G REMOTE »
(For use above water/on land only)
L. Selected mode indicator
» Align mode icon to select.
M. Mode selector ring
» Turn ring to select video/photo/ »
time lapse/slow motion modes .
N. Remote "shutter" button
»
» Press to start/stop video, take photo.
O. Adjustable Velcro strap
»
» Attach remote to wrist or arm.
»
The 2.4G remote is not waterproof.
LIMITED WARRANTY
Damage due to use underwater or
exposure to water is not covered
This product has a limited 1 year warranty, to the original purchaser, to be free
under warranty. from defects in materials and workmanship. Follow all product instructions
For complete instructions on WiFi and warnings as warranty does not cover damage due to misuse, improper
or 2.4G remote go to www.intova.com
care, accidents, or alterations. See www.intova.com for further details.
»
Flashes red when video recording
is in progress.
»
Flashes blue when remote control
function is activated.
recording.
E. Door Lock
F. Removable Housing Door
View mode: enter Playback menu
G. Tripod Mount
1) set Video Play mode
H. Float Strap Attachment
2) select single/all file delete
I. Down Button
Video Light/Flash on/off
» Scroll to select: menu/menu
(press & hold 2 seconds).
function/function choice/thumbnail.
» Video/photo mode: Digital zoom out.
» Video playback: speed up video
playback.
(press & hold 2 seconds).
» One touch LCD off/on.
(quick press). J. Menu/OK Button
» Access Menu.
» Select.
return to thumbnail view, exit
» One touch WiFi on/off.
view mode/go to video mode.
(press & hold 2 seconds)
» Playback mode: start/stop video.
menu functions/function choices.
K. Up Button
» Scroll to select: menu/menu
return to view mode.
function/function choice/thumbnail.
» Video/photo mode: Digital zoom in.
» Video playback: slow down video
playback.
and OFF when charge is complete.
A microSD card up to 128GB in size and minimum 95MB/s speed must be
properly inserted into the X4K camera's card port before use.
If using a microSD card that was previously used in a different digital
device, FORMAT memory card in a computer prior to use since previously
existing files on a memory card may cause camera to malfunction.
Use supplied mini USB cable plugged into a computer's USB port to
recharging camera's li-ion battery. If using a USB wall plug adapter, the
USB output must be 5V DC and 1A. Using a different output voltage can
cause damage to the camera and is not covered under warranty.
If camera is not used for a prolonged period of time, the li-ion battery
must be recharged periodically to maintain operating ability. Allowing
total discharge of the battery may cause it to become non-functional
and is not covered under warranty.
O-ring on waterproof door must be properly maintained by inspecting
and removing any dirt, sand, hair, debris, etc. before and after use.
Apply minimal amount of silicone grease to O-ring only when necessary.
Too much silicone grease applied at one time or a build up of excess
silicone grease can lead to leakage and is not covered under warranty.
Do not leave or store the camera in direct sunlight. Prolonged exposure to
direct sunlight can damage the camera and is not covered under warranty.
Do not aim camera directly into the sun for a prolonged period since this
can damage the image sensor and is not covered under warranty.
Store in a cool, dry environment.
Clean with a soft dry cloth and take special care around lens.
