Fike SHP-Pro Installation Instructions

SHP‐Pro® ENCLOSURE
Description

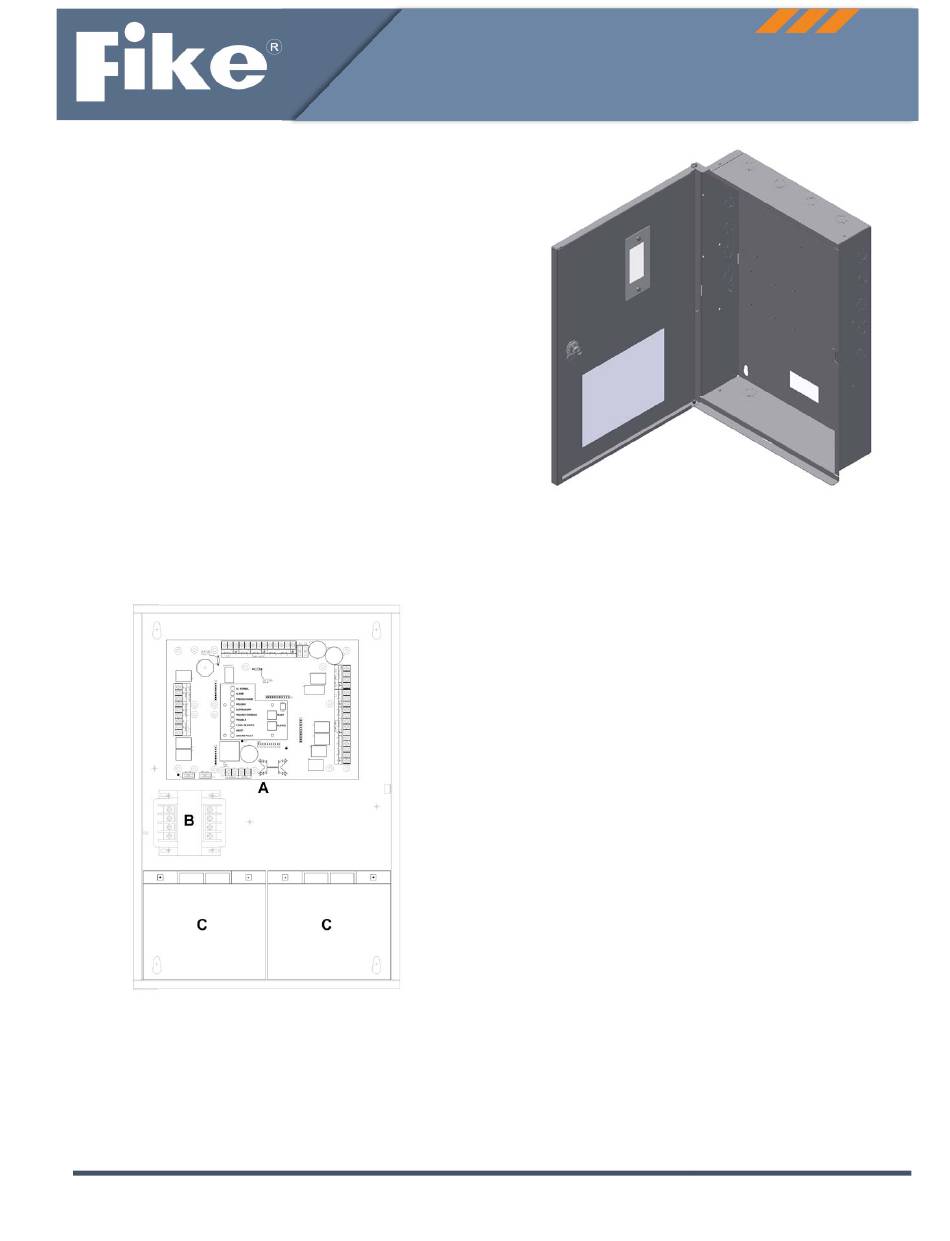

The SHP‐Pro enclosure, P/N 10‐2453‐X (See Exhibit 1) is
made of 18 gauge steel with a baked on enamel finish (red
or gray). It is designed so that it can be surface or flush
mounted. Numerous conduit knockouts are provided on
all four sides of the enclosure to facilitate easy wiring
access into the enclosure. The knockouts allow connection
of either ½" or ¾" conduit. The removable exterior door is
hinged on the left side of the back‐box and is equipped
with a key‐lock to prevent unauthorized access to system
components.
Threaded press‐studs are supplied in enclosure back‐box
for easy installation of the following SHP‐Pro system
components:
A. SHP‐Pro Controller
B. AC Power Transformer
C. Two 18 AH batteries (maximum)
See Exhibit 2 for component layout within the enclosure.
Exhibit 2: Enclosure Layout
This document is subject to Fike's full disclaimer at http://www.fike.com/disclaimer.
Fike reserves the right to change product designs or specifications without obligation and without further notice.
Installation Instructions
Supplied Mounting Hardware
The following mounting hardware is supplied with the
enclosure for future installation of the electronic
components. Store inside the enclosure after installation.
02‐12034
02‐12014
Exhibit 1: SHP‐Pro Enclosure
Standoff Kit
02‐2593 MF Standoff, 1.5" (qty. 5)
Hardware Kit
02‐12025 Key (qty. 1)
4153‐142 Lock Washer, #6 (qty. 2)
02‐1361 6‐32 Hex Nut (qty. 2)
02‐4992 Ground Wire (qty. 1)
02‐4035 Nut and star washer kit
(contains 20 nuts and washers)
Page 1 of 4
Doc. P/N 06‐425
Rev. 1 / July, 2017
