Larson Electronics APM-GL20004 Instruction Manual

Do not attempt operation until you are familiar with all warnings, precautions, and procedures outlined within this
instruction sheet. Read carefully before operating. Retain these instructions for future reference.
WARNING:
•
KEEP PLUGS AND RECEPTACLES DRY.
•
DO NOT TOUCH HOT LENS OR ENCLOSURE.
•
DO NOT REMAIN IN LIGHT IF SKIN FEELS WARM.
•
DO NOT LOOK DIRECTLY AT LIGHTED LAMP.
•
KEEP LAMP AWAY FROM MATERIALS THAT MAY BURN.

USING THE TRIPOD

1. Utilize a pre-existing pole mount or purchase a TPM-MOUNT.
2. Place telescoping pole in mount and secure.
3. Place LED Golight lamp over the top pole and tighten hand screw.
4. Loosen the black adjustment knob for each adjustment sleeve to extend the
tripod. Start with the top section when lifting.
5. Tighten adjustment knob once desired height is achieved.

VEHICLE WIRING

•
Connect cord to light via the deutsch connector and coil cord to
Voltage: 12V DC
A single 2-pin Deutsch IPD / LADD DT04-2P connector allows for quick connections to
and from spotlight. Plug the Deutsch Connector into the the light, and connect other
end to a compatible power source (12V DC). For cords supplied with flying leads,
attach the positive and negative leads to their respective polarities on your power
source. For cords with cigarette plugs, connect to matching receptacle.

LED OPERATION

Wireless Dash Control

BATTERY INSTALLATION AND REMOVAL FOR TRANSMITTER

Remove battery cover: for wireless hand-held transmitter, remove Phillips head screw
to remove cover. With battery compartment now exposed, insert batteries according to
the correct polarity or gently remove batteries by grabbing the positive end and lifting
up.

PROGRAMMABLE REMOTE INSTRUCTIONS

The LED spotlight is controlled with a programmable remote with 2187 different
channels. This feature allows you the freedom to change the channel selection, and
the receiver relearns the new selection. This light has been pre-programmed at the
factory, and it is not necessary to re-program the transmitter, unless you experience
outside interference.
To program transmitter:
1. IMPORTANT: Disconnect power.
2. Remove battery cover from remote control.
3. Set the 7 dip switches to a selection of your choice. There are 3 positions on each; positive, negative and neutral. Use
a small screwdriver and select a position for each dip switch. *Please note that the orientation of the +/- switch
positions may vary among different models of wireless remote controls.
4. Insert both GP 23A 12V batteries. Be sure batteries have adequate charge.
5. Replace battery cover.
a. Depress the on/off button and hold it down. Red LED will light.
Larson Electronics, LLC

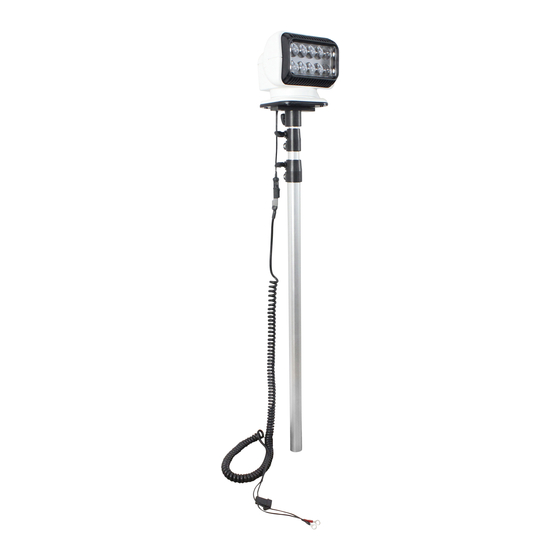

Golight LED Spotlight w/Telescoping Pole
Instruction Manual
cigarette plug receptacle.
Phone: (800) 369-6671 Fax: (903) 498-3364

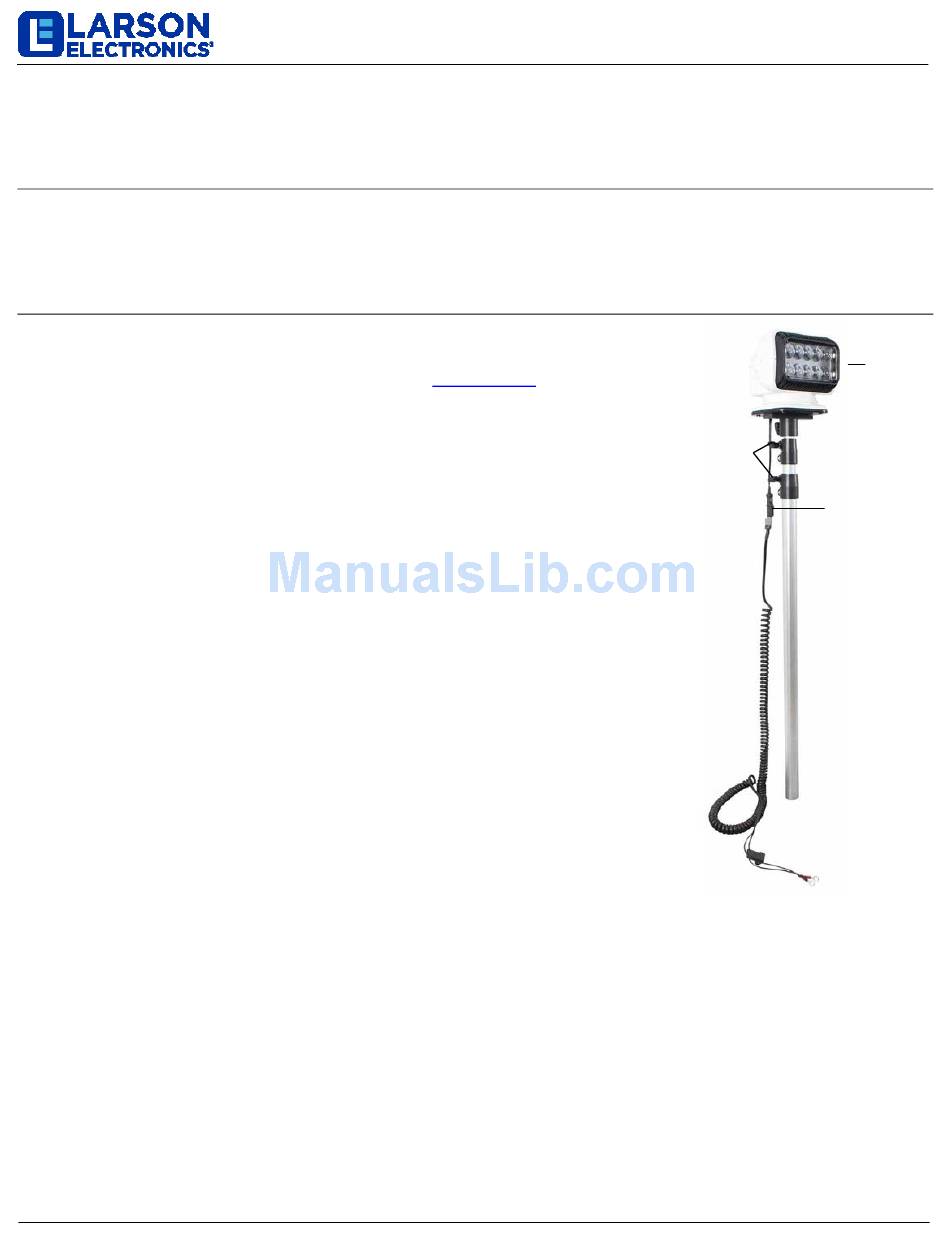

ADJUSTMENT
POINTS
www.larsonelectronics.com
APM-GL20004
LED
LAMP
DEUTSCH
CONNECTOR
1 of 2
