Pinout Diagram - TDT PZ2 Manual

System 3

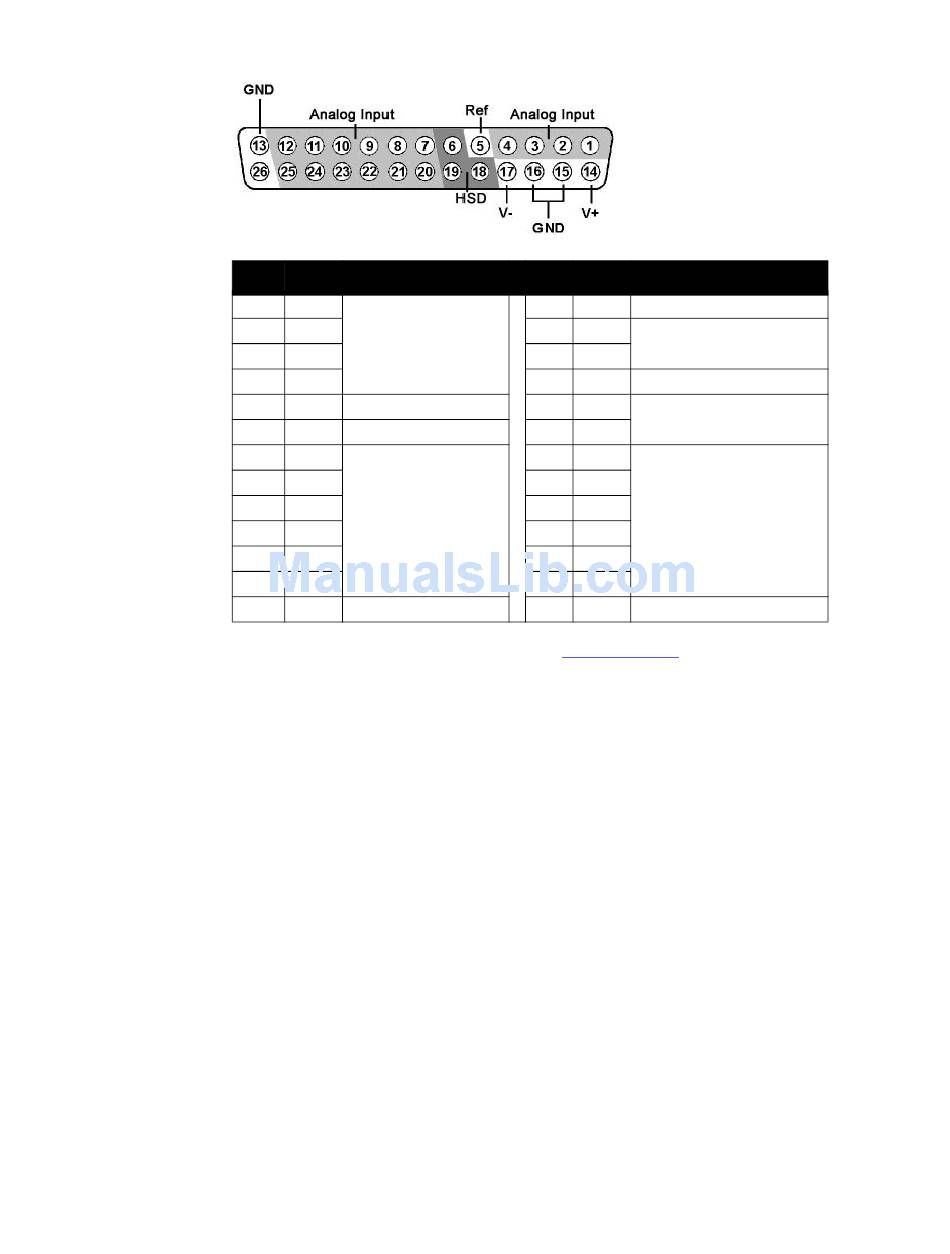

Pinout Diagram
Pin
1 A1
2 A2
3 A3
4 A4
5 Ref
6 HSD
7 A5
8 A7
9 A9
10 A11
11 A13
12 A15
13 GND
Note: TDT technical support (386-462-9622 or support@tdt.com) before attempting to
make any custom connections to pins 6, 18, or 19.
Name Description
Analog Input Channels
Reference
Headstage Detect
Analog Input Channels
Ground
Pin Name Description
14 V+ Positive Voltage (+1.5V)
15 GND Ground
16 GND
17 V- Negative Voltage (-1.5V)
18 HSD Headstage Detect
19 HSD
20 A6
21 A8
22 A10
Analog Input Channels
23 A12
24 A14
25 A16
26 NA Not Used
6-9
PZ2 PreAmp
