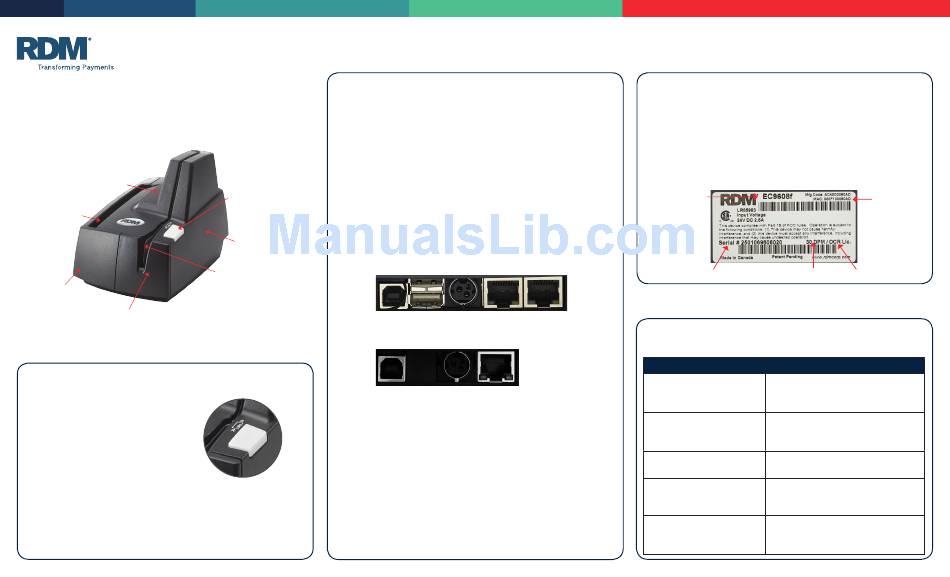

RDM EC9600i Quick Start Manual

EC9600i network scanner
®

Quick start guide

Endorsement
printer cover
Exit pocket
Exit extension
Insertion extension

Getting your scanner ready

Unpack your scanner
Please see "Understanding
Choose location
• Flat surface
• Adequate ventilation
• Protection from elements
• Near electrical outlet
• Away from electromagnetic sources
(e.g. fans, power supplies)

Power up your scanner

• Insert the round end of the power cord into power port on back
of scanner with flat side facing up, connect to power adapter and
into electrical outlet
• Scanner will initialize itself

Connecting your scanner

Your scanner has been designed with embedded software that
eliminates the need to install drivers. Just a simple setup is required
within your payment application.
1. Use either USB or Ethernet cable provided to connect to a
computer or a local network (Ethernet only)
• When connected via Ethernet:
− You can connect scanner directly to a computer or
network. Refer to User Guide section "Connecting the
EC9600i network scanner" for more details.
Application button
& light signals
− To identify the scanner on your network (if required) enter
the Network Device Name as:
For example,
Front cover

Connection ports (AF models):

Insertion hopper
USB

Connection ports (SF models):

light signals" chart
USB

2. Set up the scanner with your application

• May require some or all of the following, depending on your
application:
− Install a security certificate on your computer
need to have administrator rights to do this)
− Make changes to your browser's security settings
− Configure or select your scanner model
− Enter your scanner's serial number into the application
(as pictured in "Identifying your scanner")
Please refer to your scanning application requirements for complete setup
information.
rd<scannerserialnumber>
rd2501069608020
USB hub Power Ethernet switch
Power Ethernet
(you may

Identifying your scanner

There is a label on your scanner that includes the following details:
• Scanner model number
• MAC address
• Scanner serial number
• Speed of your scanner
• If scanner is licensed for OCR (optical character recognition)
You can locate the label on the bottom or back of your scanner,
depending on the model.
Model number
Serial number Scanner speed

Understanding light signals

The scanner's status is shown through a single multi-state LED light.
The tables below describe typicals status signals/meaning.
Signals Meaning
The scanner is initializing itself.
Upon power up:
Duration is less than one minute after
Solid red followed by varying
power up.
green/red flashing cycles
Depending on scanner The scanner is ready and idle.
connection:
Green solid or green flashing
When prompted to scan: The scanner is waiting for the user to
insert a document into the feeder.
Green flashing
The scanner is processing the
During scanning:
documents. Wait for the scanner to
Green and red flashing cycle
finish.
When scanning: Error during document processing.
Check your application for instructions,
Red flashing
or contact your application provider.
