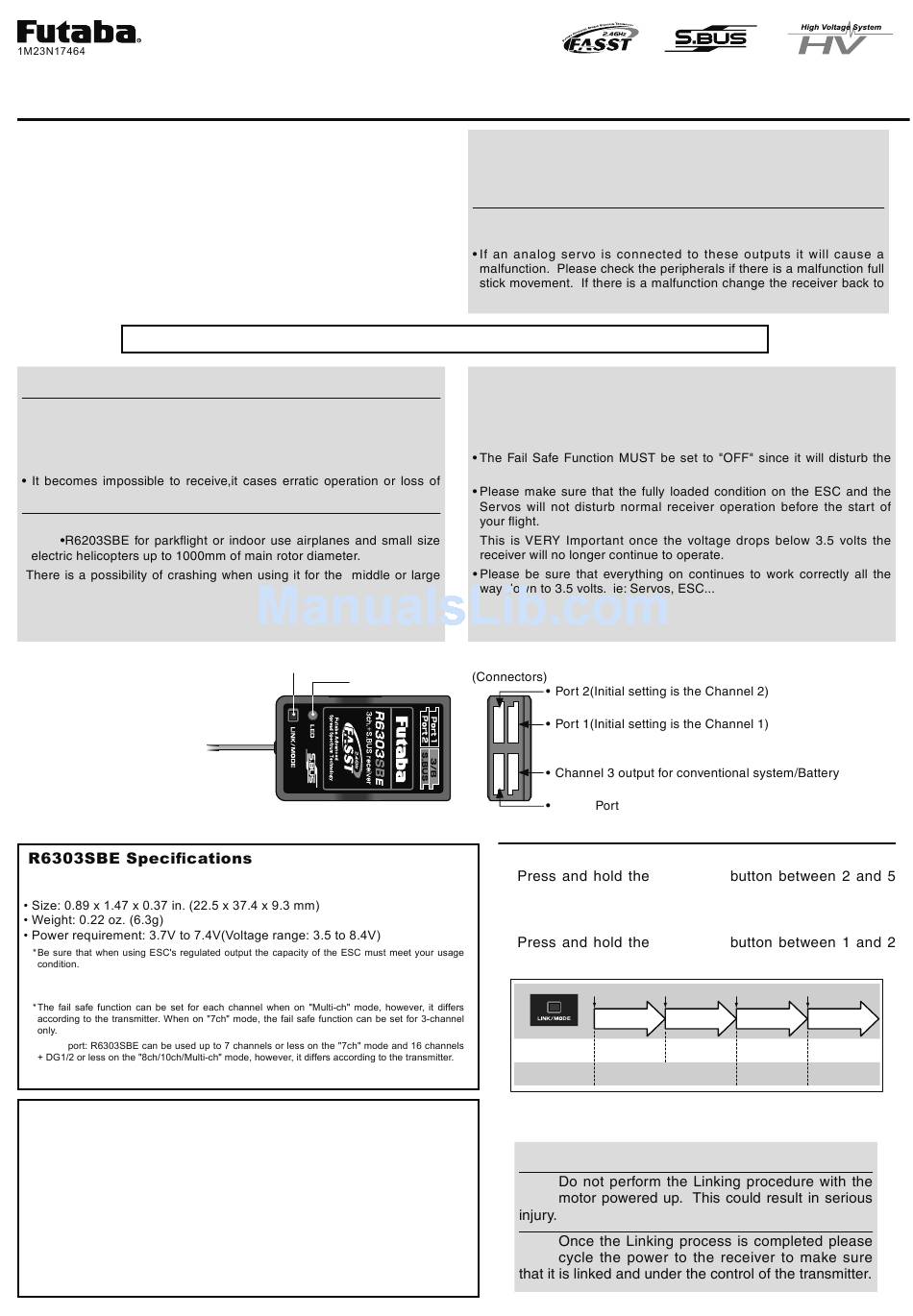

FUTABA R6303SBE User Manual

R6303SBE
Thank you for purchasing a Futaba R6303SBE FASST-2.4GHz receiver.
The R6303SBE has an S.BUS system output port and 3 conventional
system channel outputs. It can also be used with conventional system
servos, etc. in addition to S.BUS system compatible servos and gyros,
etc. When the linking procedure is performed, R6303SBE recognizes the
signal mode (FASST-2.4GHz 7ch mode or 8ch/10ch/Multi-ch mode)
automatically.
The R6303SBE can change the output CH from seven groups (CH group
table).
In addition, the operating mode (high-speed mode/normal mode) can be
selected.
Applicable systems: FASST-2.4GHz 7ch or 8ch/10ch/Multi-ch system
WARNING
If a part of the fuselage is made of conductive
materials such as metal and carbon, install
the receiver so that it is never covered with these
materials and the antenna never touch them.
control.
Do not use it for a middle or large scale model.
scale model.
FASST-2.4GHz (7ch/8ch/10ch/Multi-ch) system/S.BUS port and 3 channels for
conventional system/high-speed receiver
* The Battery F/S voltage is set for 4-cell NiCd/NiMH battery. Battery F/S function doesn't
work properly when other type battery is used.
* S.BUS
Compliance Information Statement
(for U.S.A.)
This device, trade name Futaba Corporation of America, model number R6303SBE,
complies with part15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesiredoperation.
The responsible party of this device compliance is:
Futaba Service Center
3002 N Apollo Drive Suite 1, Champaign, IL 61822 U.S.A.
TEL (217)398-8970 or E-mail: support@futaba-rc.com (Support)
FASST-2.4GHz (7ch/8ch/10ch/Multi-ch) S.BUS port and 3 channels for
conventional system High-Speed receiver
for parkflight or indoor use airplanes / small size electric helicopters.
Link/Mode button
LED
R6303SBE
Usage condition for conventional system output
(Ch1-3) on "High Speed mode"
CAUTION
The "High Speed mode" accept the digital servos only or
most type of peripherals.
"Normal mode."
Power Source Precautions
It is not recommended to use a power source of less then 4.0V.
However if less than 4.0V is used please keep in mind the conditions
below..
normal operation of the receiver.
The input voltage must not exceed the servo rating or 8.4V which ever
is lower.
terminal
S.BUS
Link to the Transmitter
1
seconds.
Re-adjust the 3CH F/S position (only for TM-8)
1
seconds.
0 sec.
0 to 1 sec.
Press and Hold
With TM-8
No function
(not included in this set)
Other than TM-8
(not included in this set)
WARNING
Link/Mode
Link/Mode
1 sec. 2 sec. 5 sec.
1 to 2 sec. 2 to 5 sec. More than 5 sec.
To set the F/S Re-link(ID set) and to
CH change mode
position(No re-link) set the F/S position
No function Re-link(ID set) CH change mode
