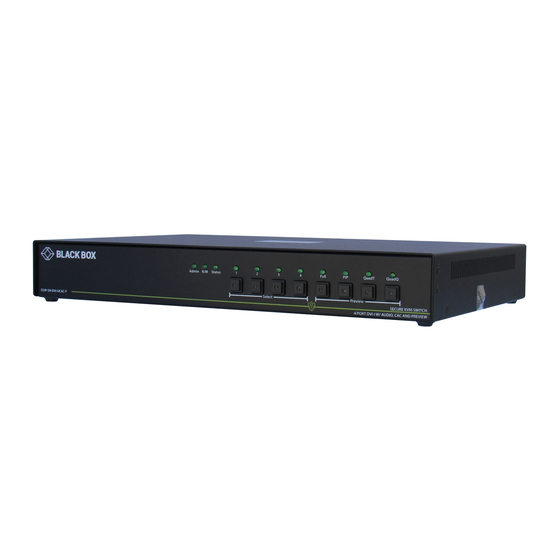

4-port single-head secure pro dvi-d kvm switch with kb/mouse usb emulation, cac and preview screen
Hide thumbs Also See for SS4P-SH-DVI-UCAC-P:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Configuration Manual
USER GUIDE
4-Port Single-head Secure Pro
DVI-D KVM Switch with
KB/Mouse USB emulation,
CAC and Preview Screen
USM-2S0-421
SS4P-SH-DVI-UCAC-P
CONSOLE
DVI-D OUT
K/M
12VDC3.0A
CAC
Audio
MODELS:
• SS4P-SH-DVI-UCAC-P
REV: 1.1A
Preview
IN-4
DVI-D
DVI-D
K/M
Audio
4-port Secure DVI-D KVM Switch with Audio, CAC Support and Preview Screen
1
2
3
4
Select
IN-3
IN-2
DVI-D
CAC
CAC
K/M
Audio
Audio
DATE: 07/03/2018
Full
PIP
QuadT
QuadQ
Preview
SECURE KVM SWITCH
4 PORT DVI-D W/ AUDIO, CAC AND PREVIEW
IN-1
DVI-D
DVI-D
CAC
CAC
K/M
K/M
Audio
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SS4P-SH-DVI-UCAC-P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Black Box SS4P-SH-DVI-UCAC-P

Summary of Contents for Black Box SS4P-SH-DVI-UCAC-P

  • Page 1 4 PORT DVI-D W/ AUDIO, CAC AND PREVIEW Preview IN-4 IN-3 IN-2 IN-1 CONSOLE DVI-D DVI-D DVI-D OUT DVI-D DVI-D DVI-D 12VDC3.0A Audio MODELS: Audio Audio Audio Audio • SS4P-SH-DVI-UCAC-P 4-port Secure DVI-D KVM Switch with Audio, CAC Support and Preview Screen...

  • Page 2: Table Of Contents

    USER GUIDE TABLE OF CONTENTS TECHNICAL SPECIFICATIONS WHAT’S IN THE BOX? SECURITY FEATURES SECURE KVM SWITCH FRONT AND REAR SECURE KVM SWITCH PREVIEW INSTALLATION CAC INSTALLATION: COMMON ACCESS CARD, SMART CARD READER CAC PORT CONFIGURATION AUDITING: Dumping the Event Log via User Menu Options RESET: Restore Factory Default LED’s BEHAVIOR SYSTEM OPERATION...

  • Page 3: Technical Specifications

    USER GUIDE TECHNICAL SPECIFICATIONS VIDEO Format DVI-D Single Link Host Interface (4) DVI-D 29-pin (female) User Console Interface (2) DVI-D 29-pin (female) Max Resolution 1920 x 1080 5 volts p-p (TTL) Input Equalization Automatic Input Cable Length Up to 20 ft. Output Cable Length Up to 20 ft.

  • Page 4: What's In The Box

    SECURE KVM SWITCH 4 PORT DVI-D W/ AUDIO, CAC AND PREVIEW Port Selection Push Buttons CAC Backlight LEDs Preview IN-4 IN-3 IN-2 IN-1 CONSOLE Figure 4-1: SS4P-SH-DVI-UCAC-P Front panel DVI-D OUT DVI-D DVI-D DVI-D DVI-D DVI-D Full QuadT QuadQ Select Preview 12VDC3.0A...

  • Page 5: Installation

    INSTALLATION SYSTEM REQUIREMENTS 1. Black Box Secure PSS is compatible with standard personal/portable computers, servers or thin-clients, running operating systems such as Windows or Linux. 2. The peripheral devices that are supported by the Secure KVM Switch are listed in the following table:...

  • Page 6: Secure Kvm Switch Preview

    SECURE KVM SWITCH 4 PORT DVI-D W/ AUDIO, CAC AND PREVIEW SS4P-SH-DVI-UCAC-P Figure 6-1: SS4P-SH-DVI-UCAC-P IMPORTANT WARNINGS - FOR SECURITY REASONS: • This product does not support wireless devices. Do not attempt to use a wireless keyboard or a wireless mouse with this product.
  • Page 7 Audio Audio Audio Audio Audio DVI-D IN CAC IN DVI-D OUT PC Workstation AUDIO IN USB IN Figure 7-1: SS4P-SH-DVI-UCAC-P SS4P-SH-DVI-UCAC-P DVI-D IN 1 DVI-D IN 2 DVI-D IN 3 DVI-D IN 4 DVI-D OUT PREVIEW IN-4 IN-3 IN-2 IN-1 12VDC3.0A...

  • Page 8: Cac Installation: Common Access Card, Smart Card Reader

    USER GUIDE CAC (COMMON ACCESS CARD, SMART CARD READER) INSTALLATION INSTALLATION The following steps are intended for the system administrator or IT manager only. If you have the optional CAC ports there will be 1 port on a single host port Secure KVM Switch, 2 ports on a 2 host ports Secure KVM Switch and 4 ports on a 4 host ports Secure KVM Switch.

  • Page 9: Auditing: Dumping The Event Log Via User Menu Options

    USER GUIDE AUDITING: Dumping the Event Log via User Menu Options The following steps are intended for the system administrator. Note: Only one computer connected to port 1 is required for this operation The Event Log is a detailed report of critical activities stored in the Secure KVM Switch or Secure KVM Switch memory. A comprehensive feature list and guidance for Administration and Security Management Tools can be found in the Administrator’s Guide available for download from: https://www.blackbox.com/NIAP3/documentation To view or dump the Event Log:...

  • Page 10: Led's Behavior

    Secure KVM Switch has been TAMPERED with and all functions are Flashing EDID problem – Learn EDID to fix the problem permanently disabled. Please contact Black Box User Console Interface – CAC LED: technical support at info@blackbox.com...
  • Page 11 USER GUIDE Front Panel Control To switch to an input port, simply push the desired input button on the front-panel of the KVM. If an input port is select- ed, the LED of that port will turn on. Preview Selection To switch display modes, press the desired preview mode button on the front control panel.

  • Page 12: System Operation

    USER GUIDE SYSTEM OPERATION Front Panel Control To switch to an input port, simply push the desired input button on the front-panel of the Secure KVM Switch. If an input port is selected, the LED of that port will turn on. TROUBLESHOOTING No Power •...

  • Page 13: Limited Warranty Statement

    B. Limitations of warranty To the extent allowed by local law, neither Black Box nor its third party suppliers make any other warranty or condition of any kind whether expressed or implied with respect to the Black Box product, and specifically disclaim implied warranties or conditions of merchantability, satisfactory quality, and fitness for a particular purpose.
  • Page 14 USER GUIDE NOTICE The information contained in this document is subject to change without notice. Black Box makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for particular purpose.
