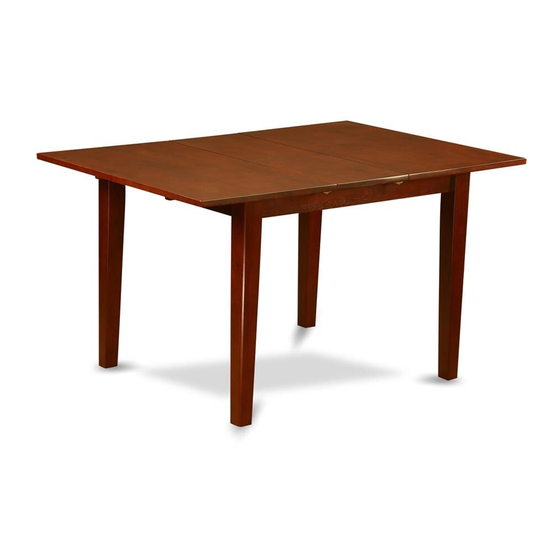

- Page 1 ASSEMBLY INSTRUCTIONS Description : MILAN RECTANGULAR TABLE 36”x54”WITH 12" BUTTERFLY LEAF Dimension : W.36" x D.42"(54") x H.30" Cube size 44.8”x38.3”x 5.5” NW: 63.8 GW: 70.4 MILAN RECTANGULAR TABLE 36”x54”WITH 12" BUTTERFLY LEAF - 1 -...
- Page 2 When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have all of the following hardware: Description Sketch Description Sketch Lock washer Bolt (M8x70mm) ( Φ8.5xΦ13mm) Flat washer Allen key (4mm) ( Φ8.5xΦ19mm) MILAN RECTANGULAR TABLE 36”x54”WITH 12" BUTTERFLY LEAF - 2 -...
- Page 3 Place legs (B) in position as shown below. Use bolts (1) and washers (2),(3) to attach legs, tighten with the Allen key (4). STEP 2 Stand the table, unlock the table top underneath and pull the 2 side tops to outside direction. MILAN RECTANGULAR TABLE 36”x54”WITH 12" BUTTERFLY LEAF - 3 -...
- Page 4 STEP 3 Fold the center leaf top and put it underneath, or spread it as your demand, then lock the top as below image. MILAN RECTANGULAR TABLE 36”x54”WITH 12" BUTTERFLY LEAF - 4 -...
