3.) Interface Description

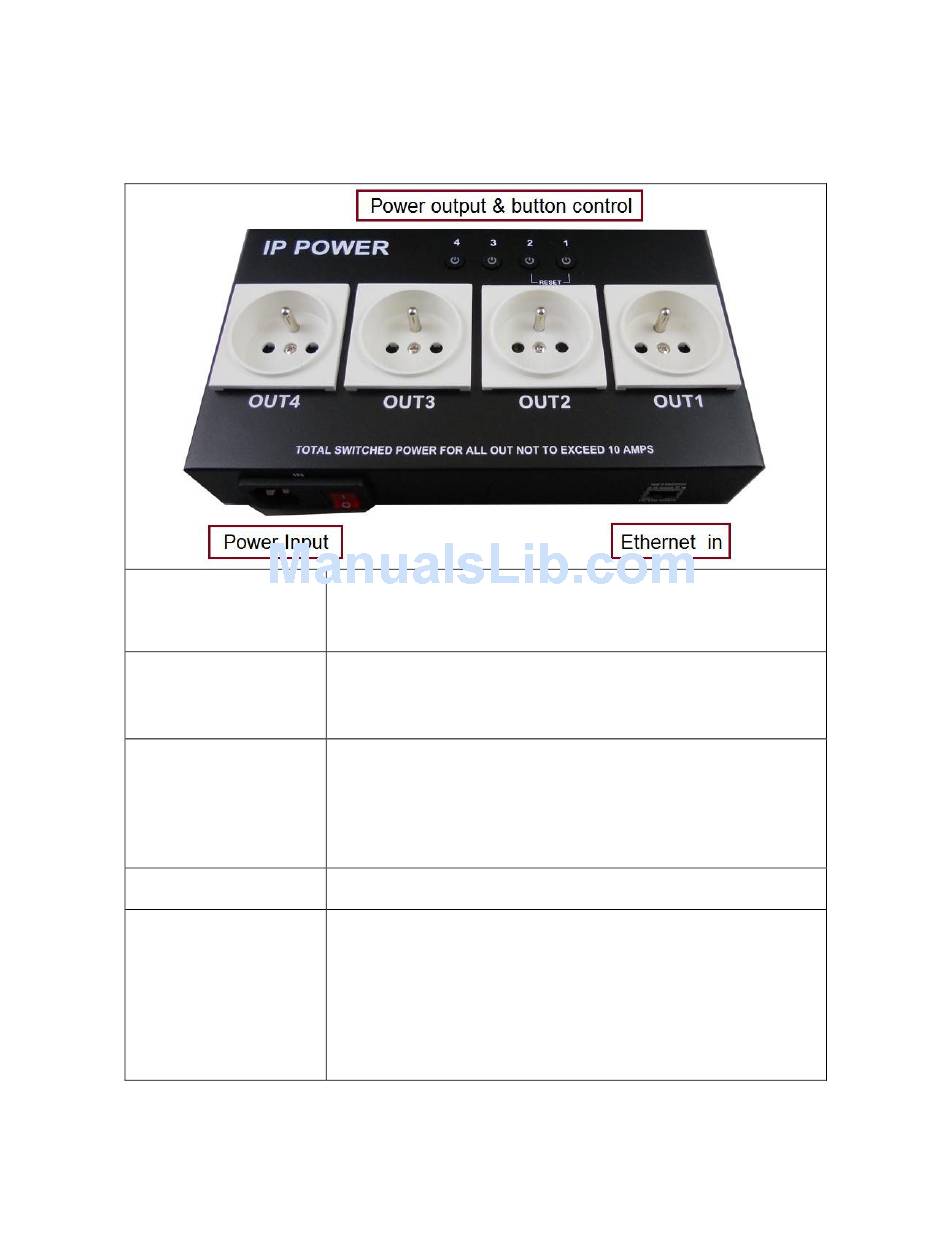

Hardware Interface

Power Output
4 Buttons Control
Reset
Ethernet port :
Power Input:
Simply plug & play in the device that you would like to
power control. (Comes in different plug standards)
* ON/OFF Control : User can control each output
ON/OFF by keep pressing each button for few seconds.
The button light is RED as turn off or Blue as turn ON .
To revert to manufacturer default, please turn off the
power input switch then keep hold button #1 & #2 .
Switch on the power and wait for a long beep sound then
release the button #1 & #2 . After the long beep sound
you should log in as default value.
Plug in the RJ45 Ethernet cable to the Ethernet port
The Power Input locates on the back of the device.
Include On/ Off Switch , plug input and fuse socket :
* Plug : For power in. Support 100VAC ~240VAC
* Fuse Socket : To prevent damaging from over
loading . 9258xx comes with fuse and there is one spare
fuse in the socket. Fuse type: U/C GFE 10A 250V (PF)
