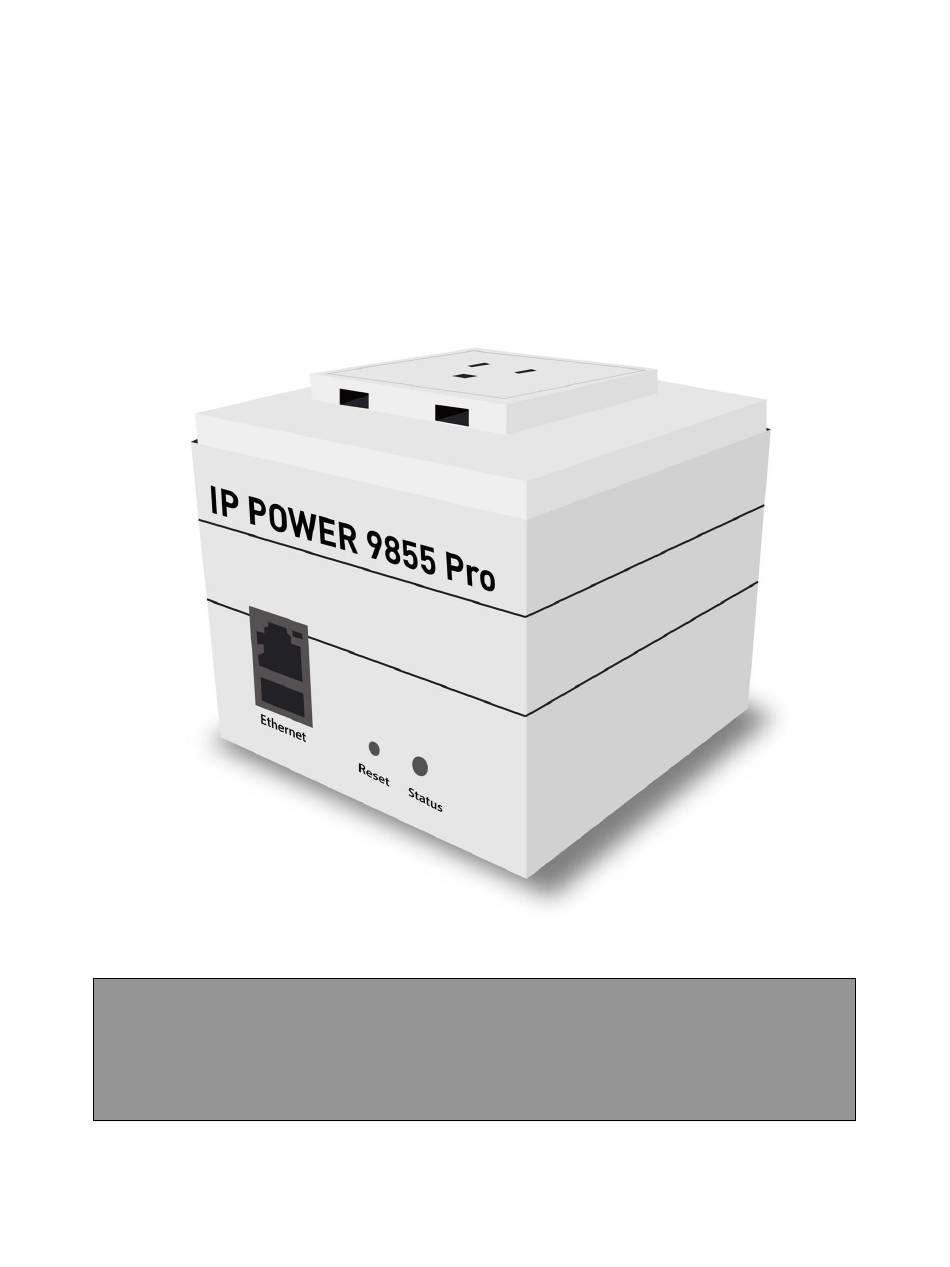

- Page 1 IP Power 9855 PRO User Manual Version: 1.00 Firmware Version: V1.00 Date Released: Feb. 2023 - 1 -...
- Page 2 Warning: Any changes made to this equipment without permission may cause damages to the device! IMPORTANT NOTICE 1. IP Power 9855 PRO was designed for indoor use, we carry no responsibility for possible damages caused by outdoor use, especially in the rain.
-
Page 3: Table Of Contents
Table of Content 1.Introduction ......................5 2.Product Information ....................6 2.1 Features ................................6 2.2 Minimum System Requirements ........................7 2.3 Package Contents .............................. 7 2.4 Interface Description ............................8 3.Setting up your device .................... 9 3.1 Before Starting ..............................9 3.2 Change settings .............................. - Page 4 4.5.3 Email ................................. 37 4.5.4 System Log ............................... 38 4.5.5 Backup / Flash firmware ........................... 40 4.5.6 Reboot ............................... 41 4.5.7 Network UPS Tools ..........................41 4.6 Application ..............................43 4.6.1 IP Service ..............................43 4.6.2 Watchcat ..............................45 4.6.3 Wake on Lan ............................. 47 4.6.4 SNMP ...............................
-
Page 5: Introduction
1.Introduction IP Power 9855 PRO is a new generation of the Power Distribution Unit (PDU) & Remote add "Active Spike Filter Design” in the Power Control (RPC) system which hardware design and make the system with higher grade stability. With embedded web server and HTTPS protection, 9855 PRO supports higher grade security as working on Internet. -
Page 6: Product Information
12. Specific software developed by Aviosys and provided free of charge : - SDK Available : HTTP Command - Windows software “ IP Power Center “ : Control Multiple Aviosys IP Power devices in one software - CNT software ( Cross Network Technology )- allows user eliminate set up work on any Router without port forwarding , simply Plug &... -
Page 7: Minimum System Requirements
Phase shift switching circuit prevent contact EMI and spike. 2.2 Minimum System Requirements ⚫ Network & Web Browser & Internet Connection ⚫ Ethernet Cable & Power Cord 2.3 Package Contents ⚫ 9855 PRO Unit ⚫ Online CD note : www.aviosys.com/cd - 7 -... -
Page 8: Interface Description

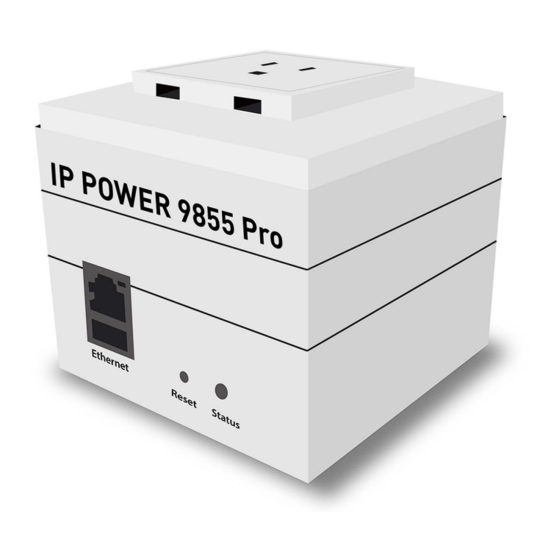

2.4 Interface Description Outlook Front : Ethernet LAN 10/100 Mbps network for Internet USB port Connect for UPS to get power information. LED (status) Display the outlets as ON ( Green ) or OFF ( RED) Reset Please keep pressing the button for 7 seconds and then release. -
Page 9: Setting Up Your Device
3.Setting up your device 3.1 Before Starting *Before setting up the device make sure of the following: 1.) All the package contents are all included if anything is missing please contact the dealer where the device was purchased from. 2.) Check the power input cable is working correctly. Check all cables to make sure there are no problems with it. - Page 10 If you want to change the setting once and for all, then click Save & Apply, the changes setting will apply immediately. But if you want to save the setting but don’t want apply immediately, click the save bottom. Save: If you want to change the settings, only click the save bottom, it will happen like this.
-
Page 11: Hardware Connection
3.3 Hardware Connection Before hardware connection, please make sure that there is no more than 2 net work cards( include dynamic network card ). If there are more than two network card in your PC. You may not get the IP address of 9855 PRO Please connect the 9855 PRO under your router or to the PC directly. -
Page 12: Software Installation
“ IPEDIT “ 3.3.1 LAN connect by IP search software IP Edit is a search tool designed to search, configure, or access the IP Power 9855 PRO from a local network computer. IP Power 9855 PRO Default Login / Password Default IP: 192.168.1.168... - Page 13 Please use our IP Search tool “IPEDIT.exe “ to get the IP address of 9855 PRO . In the local devices section user will see user device shows up if connection is correct. For example: The default IP of 9855 PRO is 192.168.1.168 . To log in to the 9855 PRO directly, please make sure the IP address of you PC is also the same segment as the 9855 PRO, like 192.168.1.XXX ( XXX = 1~254) or you may not log in the 9855 PRO webpage as different segment .
-
Page 14: Internet Setup
( X can the value of 1~254 ) , user PC can get into the webpage of 9855 PRO . 3.3.2 Internet Setup To connect the IP Power 9855 PRO on Internet, there are two ways ⚫ Setup Port Mapping / Port Forwarding in your router. Please check your Router owner’s manual . -
Page 15: Using Ip Service
3.3.3 Using IP Service IP Service is a function which allows user to search for the device easily without having to remember long complicated IP address. Instead, if user know the device’s name of user’s IP Power device and user can easily find IP Address with IP Service. To log in the webpage of 9855 PRO on Internet , user still need to do the “Port Forwarding “... -
Page 16: Web Interface
The Control Console The right side Menu of the Web Interface for controlling the functionality and setup of the IP Power 9855 PRO. The IP Power 9855 PRO Console consists of six main sections which will be explained in details below. ⚫... -
Page 17: Top Column
This section show the device name. You can change the device name here: Application → IP Service → Device name Change name “ IP POWER 9855 PRO “ as “Enjoy 9855 PRO “ Notice : Please do not use symbol like !@#$%^&*()_+ as the character of the device name . -
Page 18: Date And Time
4.2.2 Date and Time In this section, it shows Time at Year – Month – Date, Hours : Minutes : Seconds . To setup the Time, Please go to “ System → Management → System (System properties) → General Settings “, In Sync section, user can select the time to sync with local PC browser or with assigned NTP server please press “... -
Page 19: Current Usage & Temperature
Notice: As using NTP server, as webpage time count will be slower than the device time, please refresh the webpage or use the telnet command “ to confirm the device time. 4.2.3 Current Usage & Temperature ⚫ Temperature: the sensor is in 9855 PRO box. Range 0~50 ℃ or 32-122 (℉) ⚫... -
Page 20: Power Control
4.3 Power Control The IO Control Section allows you to directly / automatically control the outlets of the 9855 PRO as well as schedule Once, Daily, Weekly, and power cycles. There are 3 sections: Control, Schedule, Ping 4.3.1 Control There are 2 setting pages in this Section. One is “ Power Control “ and another one is “Advance Setup “... - Page 21 For example : ( sec = seconds ) Original Outlet as “ OFF “ , select final status as “ ON “ & fill 15sec : After press power cycle button, the outlet will turn OFF for 15 seconds and then turn ON . OFF ( 15 sec ) →...
- Page 22 B. Advance Setup : User can do the following 8 advance operation in this page : ⚫ Port Name setting: User can name each power by click the name above the power button The number of character is max. 12 characters and Please change the name in English only and do not use symbol like !@#$%^&*()_+ ⚫...
-
Page 23: Schedule
4.3.2 Schedule In this section, user can see the setting schedule list first up to 30 rules . To setup each schedule, please press “ Schedule Setting “ , then user can get the “ Schedule List “ page as following : Please click the button to switch between “... - Page 24 4. Choose the Action : Enable power # by clicking in the small square to mark “ v “ , and select one from the power action of OFF/ON/cycle/reboot as you need. Once the scheduler has been Set Up, hit the “ ADD No.:X Power Schedule “ button and you will see your setting located on the bottom of the Action section.
-
Page 25: Ping
4.3.3 Ping The Ping function allows the device to Ping an IP Address automatically to act as a watchdog to make sure the device getting Ping and working properly. Please Click the button to switch between “ Ping Setting “ & “ Ping List “ . User can hide the setting section by press “ Ping List “... - Page 26 2. Ping Set: ⚫ Ping Interval : The number of seconds ( Sec., 1~9999 ) between each ping . ⚫ Ping Response : The number of milliseconds ( ms. ,1~9999) of the device will wait for a response from the Pinged device if no ping is detected within this time it will be considered a Ping failure.
- Page 27 ⚫ Ping IP : Input the IP Address ( ex: 122.116.123.138) or Host - web address ( ex: www.google.com) user would like to Ping. User can use the “ ping test “ bottom to check the address valid or not ⚫...
-
Page 28: Network
4.4 Network LAN Network Settings The network status is connected by ether cable with RJ45 connector. There are 2 ways to connect the network : By Static address / DHCP 4.4.1 Interfaces The interface shows the basic information of device’s network, to change the setting, click the “edit”... - Page 29 A. Static Mode (fixed IP) Setup IP address, DNS and Port manually. This allows the 9855 PRO to obtain an IP Address automatically from user`s server connected to Internet. Recommended for users who need to control through Internet. Please do fill up the correct gateway / port for login from Internet . Please do fill up the correct DNS server for sending / receiving email ( alarm) .
- Page 30 B. DHCP Mode Obtain IP address via DHCP mode. setup the DNS and port This allows the 9855 PRO to obtain an IP Address automatically from user`s server connected to Internet. Recommended for non- advance users. User can only revise the Host Name under DHCP mode. This is also the default setting for fast LAN connection solution.
-
Page 31: Web Port
4.4.2 Web Port A lightweight single-threaded HTTP(S) server General Settings: For example: Device’s IP: 0.0.0.0, (ex: 192.168.1.xx or 10.33.122.xx) port: 80(HTTP). 443(HTTPS) ( the ports number depends on the router setting) 1. HTTP listeners (address: port): Bind to specific interface:port(by specifying interface address. (1) Port section: “0.0.0.0”... - Page 32 (2) Under development. green “+” (3) Type new port : Click the bottom, add port and IPV6 section, click save & apply, settings complete. 2. HTTPS listeners (address: port): Bind to specific interface:port(by specifying interface address. Same procedure as “1. HTTP listeners” 3.
-
Page 33: System Setting
4.5 System Setting 4.5.1 Management In this section there are 4 settings: System, System password, SSH Access and SSH-Keys. System: (1) General setting: 1-1 Sync: Sync the local time through browser or NTP-server 1-2 Timezone: Change your time zone setting. - 33 -... - Page 34 (2) Time Synchronization: Enable NTP client and DHCP function, and set your NTP server candidate. (3) Language and Style: There are 3 language option of 9855 PRO .The default langrage is English. The other two languages are “Chinese(Simplified) “ and “ Taiwanese(Traditional Chinese)“ . - 34 -...
- Page 35 System Password: Change the administrator password for accessing the device. SSH Access: Dropbear offers SSH network shell access and an integrated SCP server. - 35 -...
-
Page 36: Information
SSH-Keys: Public keys allow for the passwordless SSH logins with a higher security compared to use of plain passwords. In order to upload a new key to the device, paste an OpenSSH compatible public key line or drag a .pub file into the input field. 4.5.2 Information User can get the system information here. -
Page 37: Email
4.5.3 Email ⚫ Email Setting : User can get e-mail advice as one of the following situation happen: Receive E-mail with IP information & MAC Address as 9855 PRO device boot up. Receive E-mail as ON/OFF status change in each output . Notice : To send out the e-mail successfully , please double check the setting of user DNS . -
Page 38: System Log
For example : Get Email alarm as outlet changed : User can enable the email alerts in the advance setting section : Power Control → Control →Advanced setting 4.5.4 System Log In this section, user can get the 9855 PRO system operation information and send the information to assign Server IP address ( not support name ) . - Page 39 Log list: - 39 -...
-
Page 40: Backup / Flash Firmware
4.5.5 Backup / Flash firmware Flash Operation: Please only use the file supply from Aviosys distributor or Aviosys. There are three sections: Backup, Restore and Upgrade Firmware The firmware update function only support in LAN connection. Before update, please DO READ THE HI-LITE MESSAGE BLOW: Backup: To download a tar archive of the current configuration files. -
Page 41: Reboot
4.5.6 Reboot Reboots the operation system of your device. 4.5.7 Network UPS Tools This function can detect the electricity through UPS, plug by the USB port. After setting your user name and password, move to the (CGI) section, And click to “ NUT CGI”, you can see the status of UPS. 1. - Page 42 (1) Username: Setting the username to login (2) Password: Setting the password to login (3) Role: Switch device role to Master or Slave Except NUT users, don’t change others settings in the red square, these function still under-development, please wait for our device. 2.
-
Page 43: Application
4.6 Application 4.6.1 IP Service In this section, user can setup setting(Search) IP Server CNT2 ( MQTT ) - 43 -... - Page 44 A. IP Service & CNT Setting : The IP SERVICE allow 9855 PRO to be accessed easily on the internet by our IP Power Center or IP EDIT. With this feature anyone can find its device with no problems. IP Service Server: Allows user can find user of 9855 PRO on the internet without having to remember long IP Addresses.
-
Page 45: Watchcat
B. CNT (MQTT) – For developing only. 9855 PRO supports MQTT function. Please contact with your distributor for the details if you would like to develop own system. 4.6.2 Watchcat Watchcat allows to configure a periodic reboot and/or when internet connection has been lost for a certain period of time. - Page 46 (2) Periodic reboot mode: In this mode, ping host and period are removed. The device will reboot based on the period time you set. For example, if the device set 24h to reboot, the reboot will follow the setting until the times up or reset the setting.
-
Page 47: Wake On Lan
4.6.3 Wake on Lan Wake on LAN is a mechanism to remotely boot computers in the local network. ⚫ Network Interface to use: Specifies the interface the WoL, packet is sent on. (1) Broadcast on all interfaces: All the function below will broadcast at the same time. (2) eth0: Device’s MAC address (3) wlan0: Wireless lan (4) br-lan: Ethernet... - Page 48 SNMP Version: IP9855 PRO provide V1, V2 and V3 version. V1 and V2 remain the same settings, when you switch to V3, user can see the difference in the second picture. SNMP V3: Version V3 add new function, these are: auth, MD5 and DES (1) auth: this function provide the certified and encryption to the device.
-
Page 49: Other Ways To Control
5. Other ways to control Besides HTTPS/CGI command and SSH we supply here, 9855 PRO also support SNMP (MIB), Please check page #47 to check and enable the function. 5.1 CGI HTTP Commands CGI Commands allow you to easily integrate the 9855 PRO with other systems and programs. Please read the instructions carefully on how to use the Http:// Commands To use http:// Commands open up a web browser and type in the command that you would like to use. - Page 50 2.3 To get the status of power on/ off： getpower http://192.168.1.18/set.cmd?cmd=getpower System return： CGI Command : Data follows p61=0, 2.4 To set the power on / off ：setpower&p6x=0 or 1 p6x=0 means off，p6x=1means ON， Example : Turn on POWER1 and turn off POWER1： http://192.168.1.18/set.cmd?cmd=setpower&p61=1 System return：...
-
Page 51: Ssh Commands
5.2 SSH commands To login to the 9855 PRO in SSH 1) Open the putty and select SSH, after typing your ID address, putty will appears the command line and ask for login. Login : root Password : 12345678 (2) Command list: - 51 -... -
Page 52: Faq
6. FAQ : Q1: Why can`t I see the 9855 PRO`s IP address in IPEDIT.exe Ans.: Please check if your 9855 PRO had boot up successfully. There is a short beep sound to show 9855 PRO boot up successfully after device power up for 45 seconds. There are several possibilities for this issue as 9855 PRO boot up successfully : 1.
