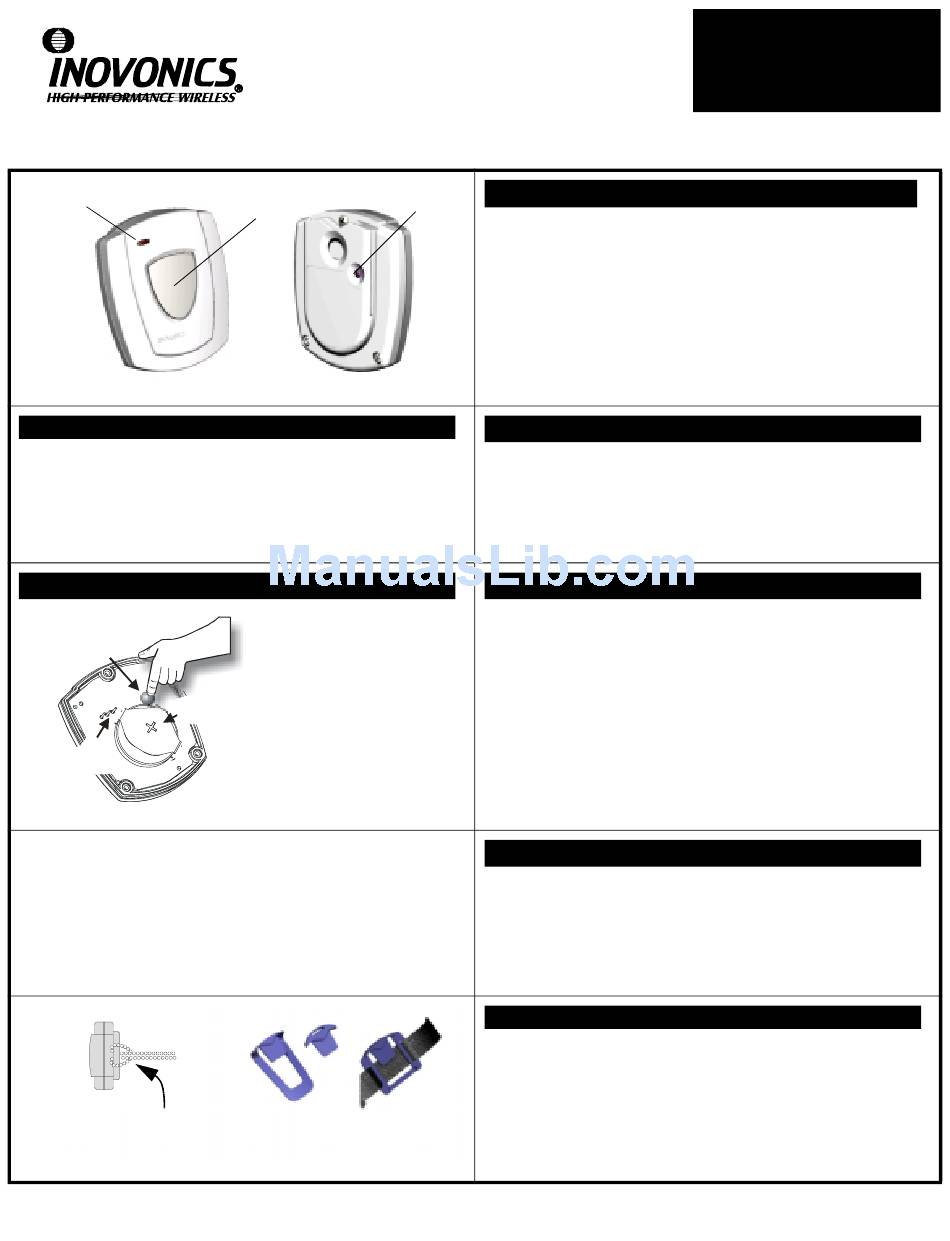

Inovonics FA223S-LTH Installation Instructions

Transmit LED
• To activate the FA223S, press and hold the Transmit Button for at least
1 second. (Actual minimum activation interval is .700 second.)
• Alarm signals are transmitted multiple times, and are indicated by the
blinking transmit LED.
• When the button is released, the FA223S-LTH will complete its alarm
transmission, then will continue to send alarm signals every 3 seconds
until the Reset is pushed. It then sends a restoral signal.
Changing the battery
Internal
Reset Button
3-pin
programming
header
! ! ! !
"
Inovonics recommends that pendants always be supervised.
Pendants should also be tested at least once per week.
Recommended method of attaching
the neck cord to the FA223S
© 1999 Inovonics support@inovonics.com phone: 800.782.2709
Transmit
Button
Operation
Changing the battery:
1) Remove 3 screws from the
back of the housing.
2) Make sure that the battery is
inserted with the positive (+) ter-
minal facing the indicated side of
the holder.
3) After replacing the battery,
Battery Positive
press the internal reset button to
Indicator
reset the transmitter to its most
recent programming.
4) Replace back cover and care-
fully re-tighten screws evenly for
tight seal
5) Thoroughly test the unit before
returning to service.
Neck cord Clip
Belt Clip
Wrist Band (optional)
Installation
Instructions
FA223S-LTH Single-button Pendant Latching Transmitter
External
Reset Button
Intended use: The FA223S-LTH portable transmitter utilizes Ino-
vonics 900MHz Frequency Agile
intended to be installed and serviced by licensed professionals,
transmits messages to an Inovonics receiver. Once activated, the
transmitter "latches" in alarm mode until manually reset.
The FA223S-LTH has a water-resistant housing that protects the
pendant when worn in the shower, rain, or other environments
where the pendant may be splashed with water. It is not, how-
ever, designed to be submerged.
Battery (BAT609): 3.0V lithium Sanyo CR2450
1. Open the transmitter housing by removing three phillips-head screws.
2. When prompted by the programming device to plug in the transmitter,
connect the programming cable to the 3-pin programming header.
3. Press the internal reset button.
4. Disconnect the programming cable.
5. Re-assemble and thoroughly test the transmitter.
NOTE: FA223S-LTH transmitters retain programming data in non-volatile
memory. They do not require reprogramming after loss of power. Install new
battery and press either the internal or the external reset button to re-initialize
the transmitter and restore programming.
IMPORTANT: The FA223S-LTH should always be programmed for super-
vision.
Factory Default
Suggested check-in interval: 5 minutes
External contacts: N/O
! ! ! !
For information on supervision programming options, request
Tech Notes TN1025 and TN1032.
Wearing the FA223S: Neck cord, Belt Clip or Wrist Band
The FA223S-LTH can be carried in 3 convienient ways:
• Around the neck as a pendant (standard).
• On a belt with the beltclip attachment (standard).
• On the arm with optional wristband accessory (ACC634W).
WARNING: The neck cord provided with the FA223S-LTH is designed for user
(ACC623W)
www.inovonics.com
FA223S-LTH
®
technology. The transmitter,
Specifications
Dimensions: 2.22" x 1.925" x0.725"
Weight: 1.4 oz.
Typical battery life:1 to 2 years
—or—
(The battery is always supervised.)
Programming
/
Recommended Programming
Internal contact: No
EOL resistor: No
! ! ! !
Caution: Neck Cord Safety
safety.
Substitution of stronger cords or chains may result in injury to the
wearer.
223latch.fm rev 1.01 12/16/99
Renata CR2450N
