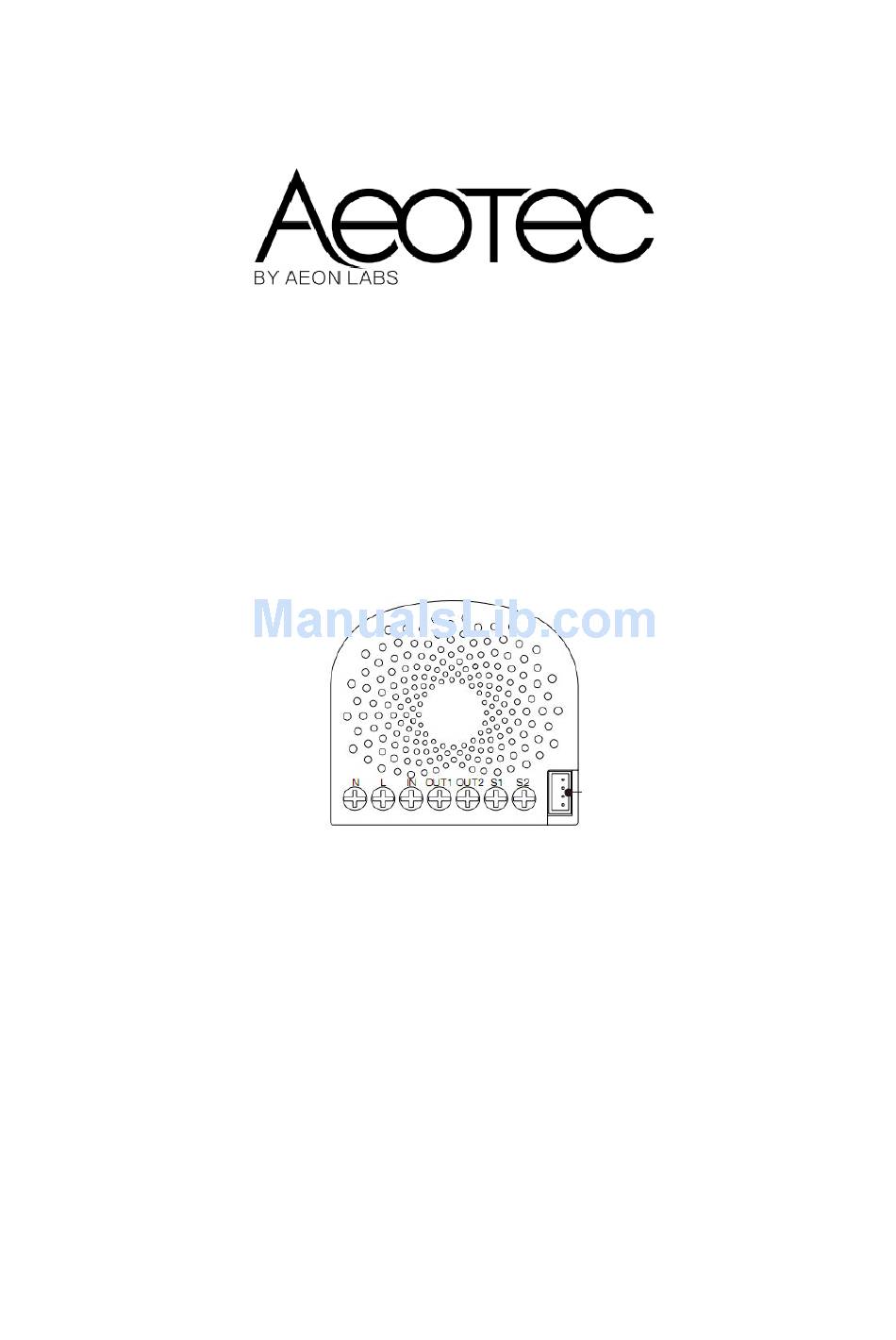

- Page 1 Nano Shutter Page 1...
- Page 2 The wireless module is powered from the mains supply. In the event of power failure, non-volatile memory retains all programmed information relating to the units operating status. Nano Shutter is also a security Z-Wave plus device and supports Over The Air (OTA) feature for the products firmware upgrade.
-
Page 3: Quick Start
Let your Nano Shutter to be connected to the AC power supply. The following instructions tell you how to link your Nano Shutter to your Z-Wave network. If you are using other products as your main Z-Wave controller, such as a Z-Wave gateway, please refer to the part of their respective manual that tells you how add new devices to your network. - Page 4 Nano Shutter’s settings to their factory defaults. To do this, press and hold the Action Button for 20 seconds and then release it. Your Nano Shutter will now be reset to its original settings, and the green LED will be solid for 2 seconds and then remain the colourful gradient status as a confirmation.
-
Page 5: Association Information
230V 50Hz, Max: 2.5A 865.22 M Hz 230V 50Hz, Max: 2.5A 868.42 MHz 120V 60Hz, Max: 2.5A 908.42 MHz Association information Nano Shutter supports 2 association groups and Max 5 nodes for every group. Association Nodes Send Send commands Group Mode Group 1... - Page 6 0x55 (85) Set the operation mode of external switch. 0 = Operation Mode 1. 1 = Operation Mode 2. For detailed instructions for Operation Mode 1 and 2, see end of this table. 0x78 (120) Set the external switch mode of S1 0 = Unidentified mode.
- Page 7 Press Moving Stop Moving Stop button once 100% Operation Mode 2: Extern button 1 / Extern button 2 Current state At 0% Moving Moving At 100% Stop 100% Press Moving Stop Stop Moving Toggle button once 100% Page 7...
