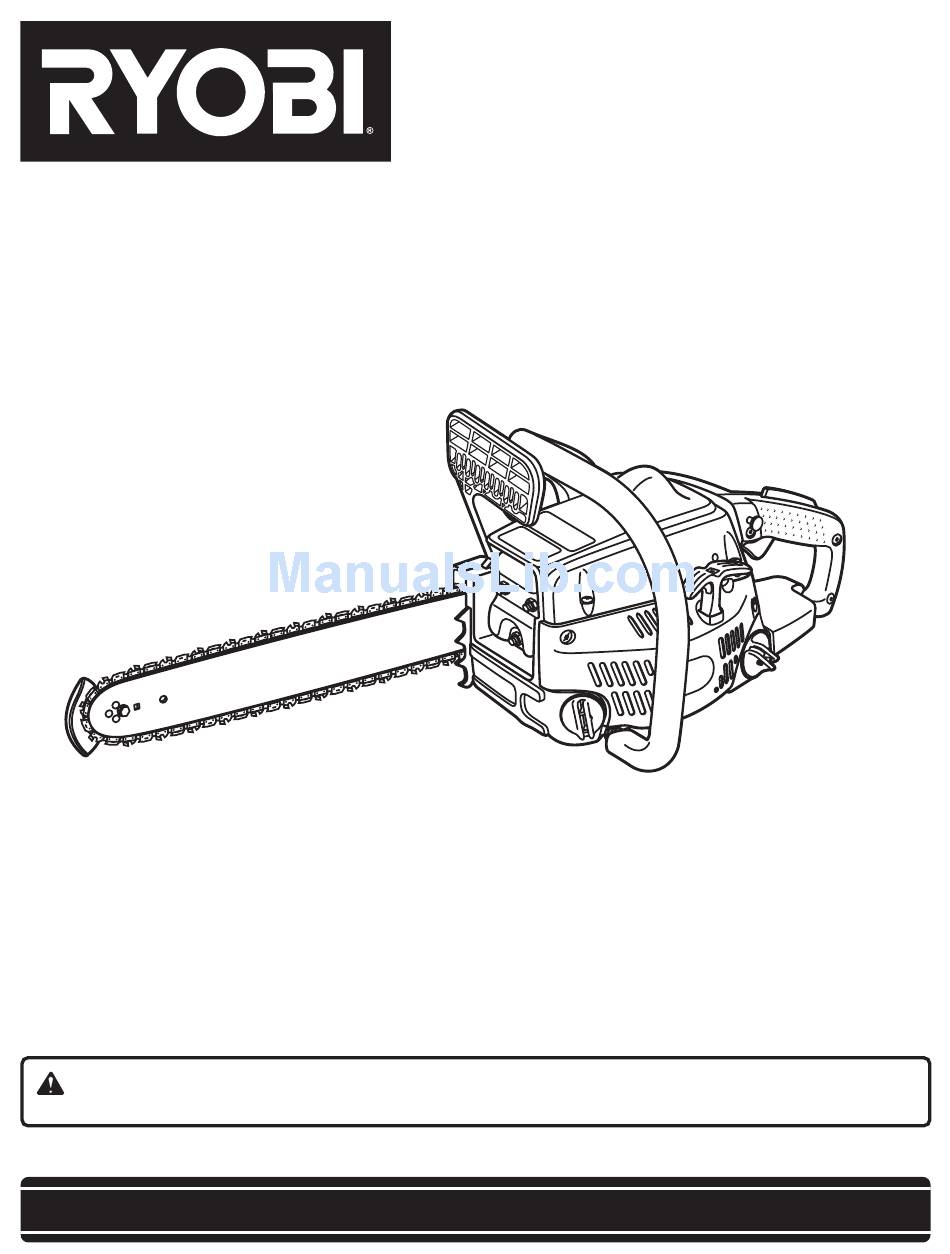

OPERATOR'S MANUAL
356 mm (14 in.) 33cc Chainsaw
PCN3335
Model No. RY74003D
Your new chainsaw has been engineered and manufactured to Ryobi's high standard for dependability, ease of operation,
and operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.
WARNING:
To reduce the risk of injury, the user must read and understand the operator's manual before
using this product.
Thank you for buying a Ryobi chainsaw.
SAVE THIS MANUAL FOR FUTURE REFERENCE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ryobi RY74003D
Summary of Contents for Ryobi RY74003D
- Page 1 356 mm (14 in.) 33cc Chainsaw PCN3335 Model No. RY74003D Your new chainsaw has been engineered and manufactured to Ryobi’s high standard for dependability, ease of operation, and operator safety. Properly cared for, it will give you years of rugged, trouble-free performance. WARNING: To reduce the risk of injury, the user must read and understand the operator’s manual before...
-
Page 2: Table Of Contents
When servicing use only identical Ryobi replacement parts. For safe operation, read and understand all instructions before using the chainsaw. Follow all safety instructions. Failure to follow all safety instructions listed below may result in serious personal injury. -
Page 3: General Safety Rules
7. Only use replacement bars and chains specified by the manufacturer or the equivalent. ■ ■ ■ ■ ■ DO NOT OPERATE A CHAINSAW WITH ONE HAND. Serious injury to the operator, helpers and/or 0bystanders may result from one-handed operation. A chainsaw is intended for two-handed use. -
Page 4: General Precautions
■ ■ ■ ■ ■ OPERATE THE CHAINSAW ONLY in well-ventilated areas. ■ ■ ■ ■ ■ DO NOT OPERATE A CHAINSAW IN A TREE unless you have been specifically trained to do so. WARNING: The warnings, labels, and instructions found in this section of the operator’s manual are for your safety. - Page 5 BASIC PRECAUTIONS IN THE CUTTING/ WORK AREA ■ ■ ■ ■ ■ Do not operate a chainsaw in a tree. ■ ■ ■ ■ ■ Do not cut from a ladder: this is extremely dangerous. ■ ■ ■ ■ ■ Keep bystanders and animals out of the work area.
-
Page 6: Symbols
Important: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and more safely. SYMBOL Safety Alert Symbol Read Your Operator’s Manual Eye, Hearing, and Head Protection SAFE-T-TIP Nose Guard No Smoking... -
Page 7: Symbols
Petrol Mix Petrol and Oil SAVE THESE INSTRUCTIONS Weight - No bar, chain, fuel or oil ... 4.4 kg (9.7 lbs.) Fuel tank capacity ... 575 cm Oil tank capacity ... 350 cm Bar lengths ... 33 - 41 cm (12 - 16 in.) Chain pitch ... -
Page 8: Features
WARNING: The warnings and instructions in this section of the operator’s manual are for your safety and to prevent serious personal injury. UNDERSTANDING YOUR CHAINSAW SAFETY DEVICES SAFE-T-TIP® ANTI-KICK-BACK NOSE GUARD See Figure 2. The SAFE-T-TIP® (A) prevents kick-back because it covers the tip of the bar where rotational kick-back is generated. -
Page 9: Chain Oil System
Do not rely exclusively upon the safety devices built into your saw. As a chainsaw user, you should take several steps to keep your cutting jobs free from accident or injury. KICK-BACK PRECAUTIONS See Figures 4 and 5. -
Page 10: Starting The Engine
Release the throttle trigger and let the engine return to idle. To stop the engine, move the ignition switch to the “O” stop position (L). Do not put the chainsaw on the ground when the chain is still moving. For additional safety, set the chain brake when the saw is not in use. -
Page 11: Adjusting The Carburettor
(A) when cutting on the bottom edge of the bar and the PUSH (B) when cutting along the top edge. NOTE: Your chainsaw has been fully factory tested. It is normal to find some slight oil residue on the saw. -
Page 12: Adjusting Idling Speed
1. Start the engine and grasp the front and rear handles securely with both hands. 2. Pull the throttle trigger to bring the chainsaw up to full speed. Using the back of your left hand, engage the chain brake (A) by pushing the chain brake lever/hand guard toward the bar while the chain is rotating rapidly. -
Page 13: Limbing And Pruning
After you complete the cut, reinstall the tip immediately. 5. As tree starts to fall, stop the chainsaw and put it down immediately. Retreat along the cleared path, but watch the action in case something falls your way. -
Page 14: Assembling The Bar And Chain
OPERATION WARNING: Spring poles are dangerous and could strike the operator causing the operator to lose control of the chainsaw. This could result in severe or fatal injury to the operator. MAINTENANCE 13.Tighten the bar mounting nuts finger tight only. The bar must be free to move for tension adjustment. -
Page 15: Chain Maintenance
NOTE: New chain tends to stretch, check the chain tension frequently and tension as required. CAUTION: A chain tensioned while warm may be too tight upon cooling. Check the “cold tension” before next use. CHAIN MAINTENANCE See Figures 51 and 52. CAUTION: Check that the switch is in the STOP “... -
Page 16: Cleaning The Air Filter
MAINTAINING DEPTH GAUGE CLEARANCE See Figures 51, 59, and 60. ■ Maintain the depth gauge (A) at a clearance of 0.6 mm (0.025 in.). Use a depth gauge tool for checking the depth gauge clearances. ■ Every time the chain is filed, check the depth gauge clearance. -
Page 17: Chain Brake
WARNING Silencer surfaces are very hot during and after operation of the chainsaw, keep all body parts away from the silencer. Serious burns may occur if contact is made with the silencer. -
Page 18: Maintenance
STORING THE CHAINSAW (1 MONTH OR LONGER) 1. Drain all fuel from tank into a container approved for petrol. 2. Run the engine until it stops. This will remove all fuel-oil mix that could become stale and leave varnish and gum in the fuel system. -
Page 19: Guarantee - Statement
PROBLEM POSSIBLE CAUSE Carburettor requires adjustment. Engine starts, runs, and accelerates but will not idle. 1. Chain oil tank empty. Engine starts and runs, but chain is not rotating. 2. Check chain tension for overtight condition. 3. Check for oiler function. 1. -
Page 20: Ec Declaration Of Conformity
Ryobi Technologies Inc., 1428 Pearman Dairy Road, Anderson, SC 29625 Declare in sole responsibility that the product: PCN3335 (RY74003D) - to which this certificate applies, conforms to the basic health and safety requirements of the Machinery Directive 98/37/EC and other relevant directives, like EMC Directive 89/336/EEC and Outdoor Directive 2000/14/EC.
