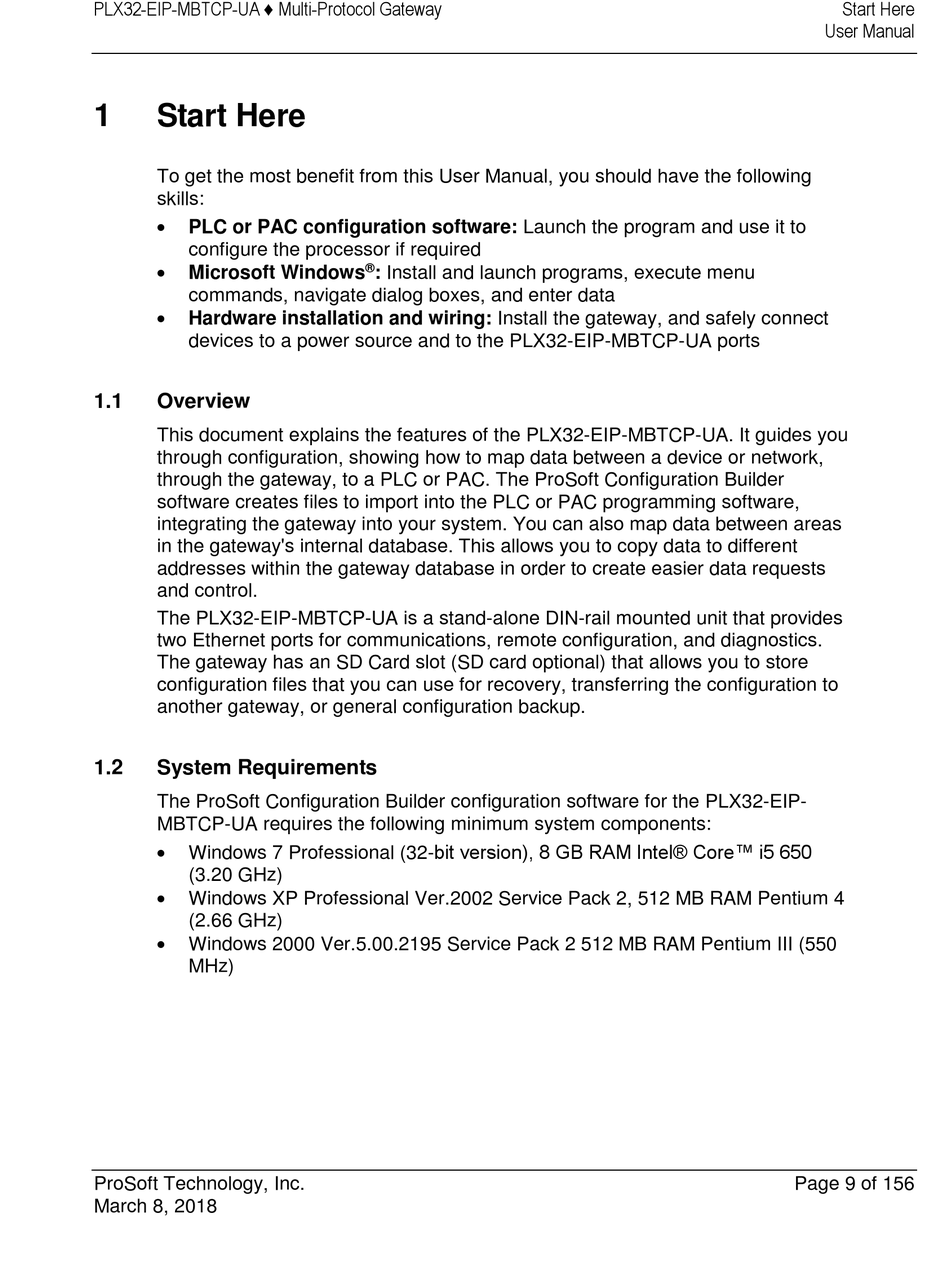

Start Here

To get the most benefit from this User Manual, you should have the following
skills:

PLC or PAC configuration software: Launch the program and use it to
configure the processor if required

Microsoft Windows
commands, navigate dialog boxes, and enter data

Hardware installation and wiring: Install the gateway, and safely connect
devices to a power source and to the PLX32-EIP-MBTCP-UA ports
1.1

Overview

This document explains the features of the PLX32-EIP-MBTCP-UA. It guides you
through configuration, showing how to map data between a device or network,
through the gateway, to a PLC or PAC. The ProSoft Configuration Builder
software creates files to import into the PLC or PAC programming software,
integrating the gateway into your system. You can also map data between areas
in the gateway's internal database. This allows you to copy data to different
addresses within the gateway database in order to create easier data requests
and control.
The PLX32-EIP-MBTCP-UA is a stand-alone DIN-rail mounted unit that provides
two Ethernet ports for communications, remote configuration, and diagnostics.
The gateway has an SD Card slot (SD card optional) that allows you to store
configuration files that you can use for recovery, transferring the configuration to
another gateway, or general configuration backup.
1.2

System Requirements

The ProSoft Configuration Builder configuration software for the PLX32-EIP-
MBTCP-UA requires the following minimum system components:

Windows 7 Professional (32-bit version), 8 GB RAM Intel® Core™ i5 650
(3.20 GHz)

Windows XP Professional Ver.2002 Service Pack 2, 512 MB RAM Pentium 4
(2.66 GHz)

Windows 2000 Ver.5.00.2195 Service Pack 2 512 MB RAM Pentium III (550
MHz)
