7.11 UA Client Connectivity

The following example shows how the UA Client can read data from the
gateway's UA Server.

7.11.1 Data Map Example

In this example, you will map the live data into the gateway's user data
1
range (0 to 3999). The mapped data includes the Revision Number and
Program Cycle Counter of the PLX32-EIP-MBTCP-UA. The DATA MAP
feature in PCB accomplishes this.

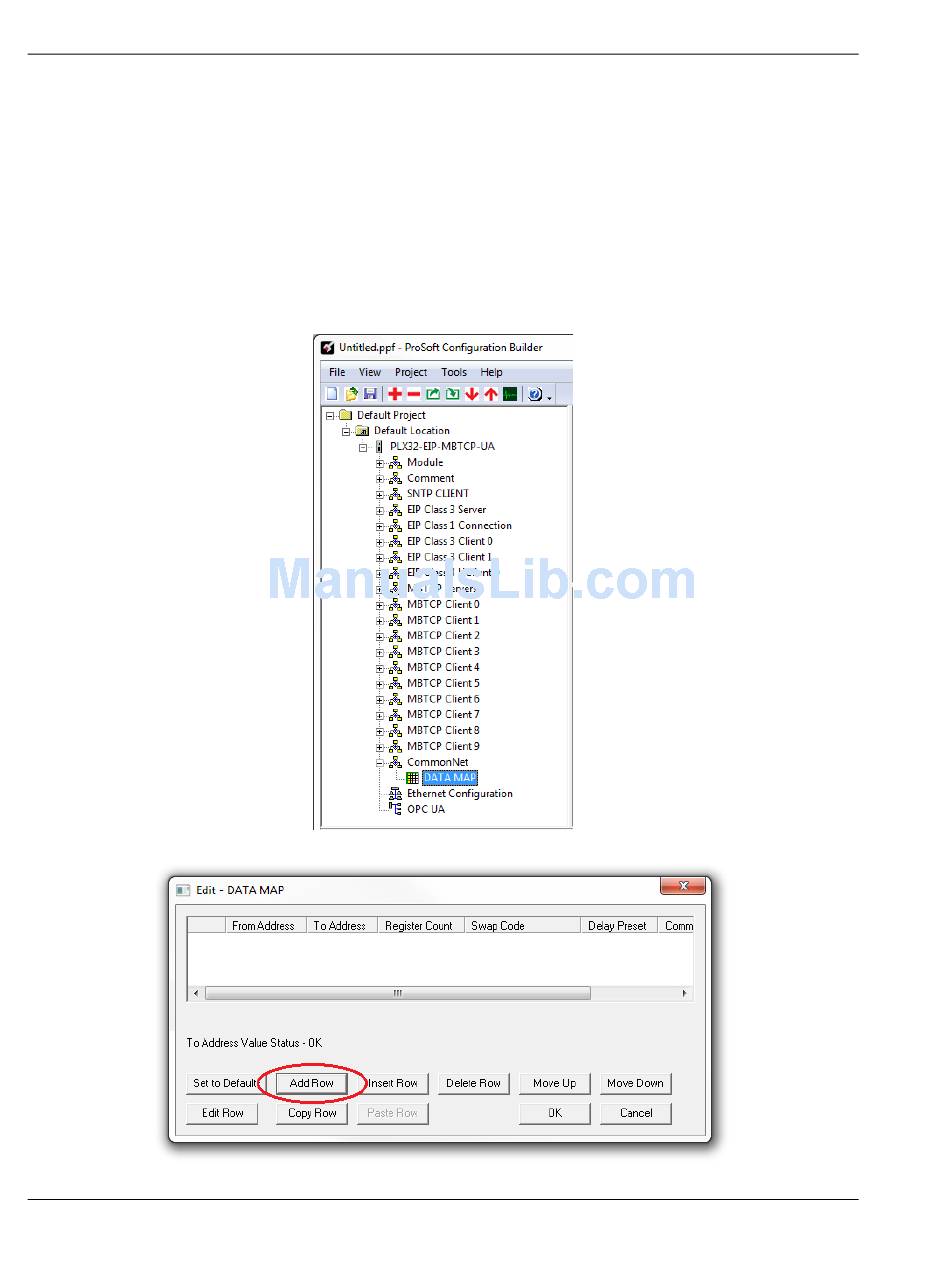

2 In PCB, double-click on the DATA MAP icon.
The Edit – DATA MAP dialog box opens. Click on the A
