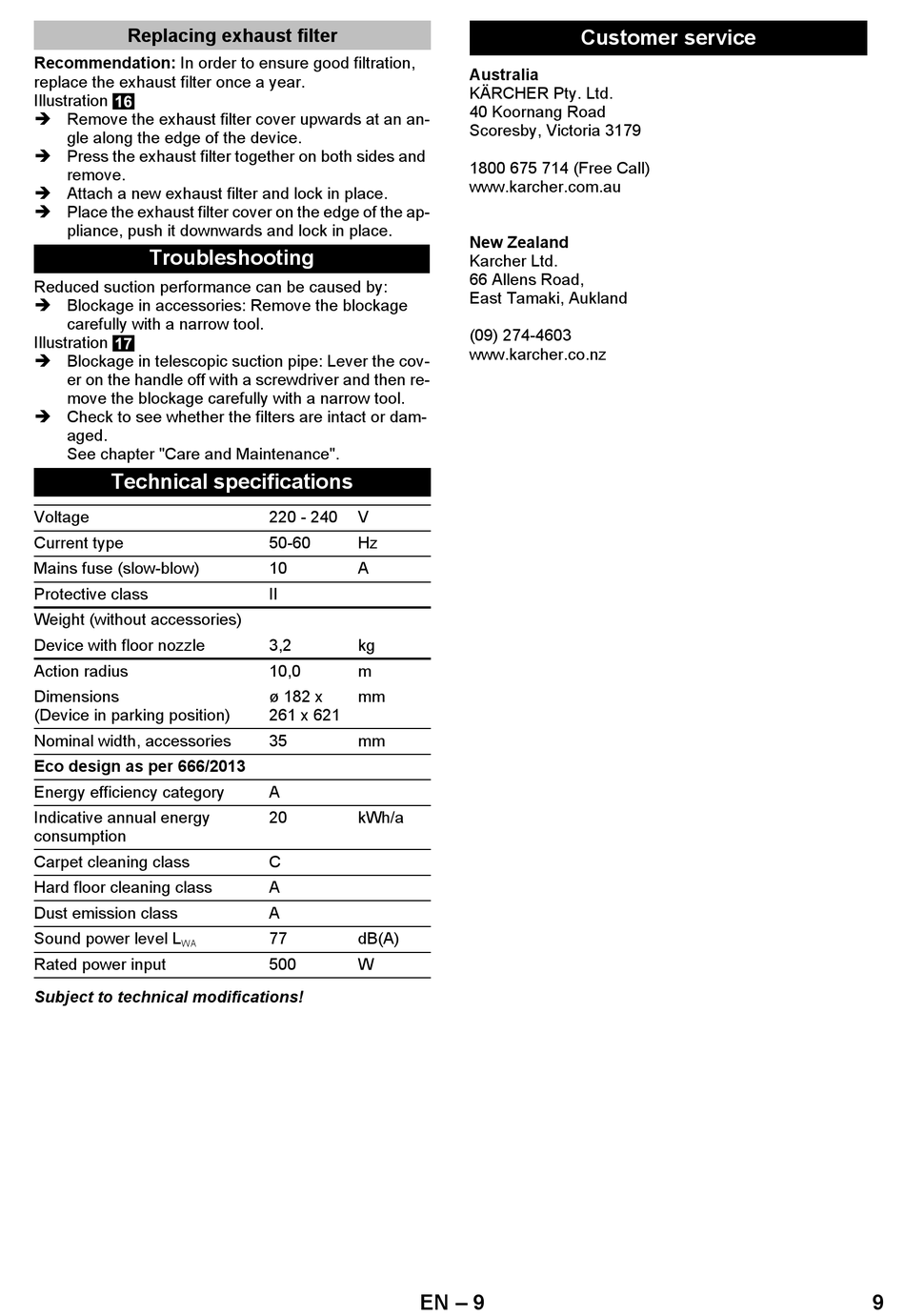

Replacing exhaust filter

Recommendation: In order to ensure good filtration,
replace the exhaust filter once a year.
Illustration
 Remove the exhaust filter cover upwards at an an-
gle along the edge of the device.
 Press the exhaust filter together on both sides and
remove.
 Attach a new exhaust filter and lock in place.
 Place the exhaust filter cover on the edge of the ap-
pliance, push it downwards and lock in place.
Troubleshooting
Reduced suction performance can be caused by:
 Blockage in accessories: Remove the blockage
carefully with a narrow tool.
Illustration
 Blockage in telescopic suction pipe: Lever the cov-
er on the handle off with a screwdriver and then re-
move the blockage carefully with a narrow tool.
 Check to see whether the filters are intact or dam-
aged.
See chapter "Care and Maintenance".
Technical specifications
Voltage
Current type
Mains fuse (slow-blow)
Protective class
Weight (without accessories)
Device with floor nozzle
Action radius
Dimensions
(Device in parking position)
Nominal width, accessories
Eco design as per 666/2013
Energy efficiency category
Indicative annual energy
consumption
Carpet cleaning class
Hard floor cleaning class
Dust emission class
Sound power level L
WA
Rated power input
Subject to technical modifications!
220 - 240
V
50-60
Hz
10
A
II
3,2
kg
10,0
m
ø 182 x
mm
261 x 621
35
mm
A
20
kWh/a
C
A
A
77
dB(A)
500
W
EN
Customer service
Australia
KÄRCHER Pty. Ltd.
40 Koornang Road
Scoresby, Victoria 3179
1800 675 714 (Free Call)
www.karcher.com.au
New Zealand
Karcher Ltd.
66 Allens Road,
East Tamaki, Aukland
(09) 274-4603
www.karcher.co.nz
– 9
9
