The CAM6.6 has two Zone Audio outputs, on
Zone 1 and Zone 2. Each of these zone audio
output connections features a stereo line out
RCA connection plus a switch to allow for either
a fixed or a variable line level output.
When set to Variable, the keypad volume level
affects this output. In the Fixed position, the key-
pad volume level will not change the output level.
MAKING CONNECTIONS
Zone Fixed/Variable Audio Outputs

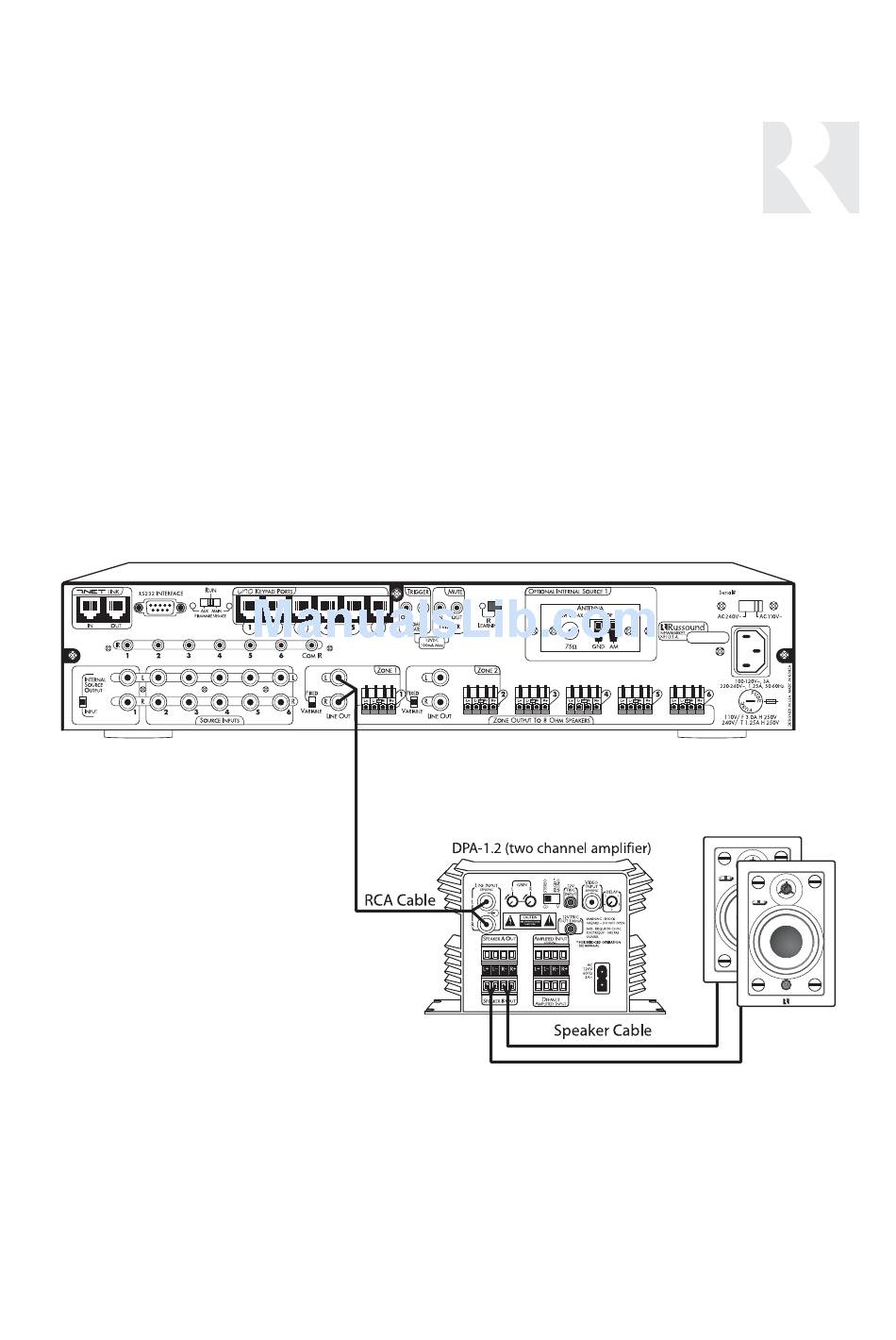

The fixed or variable audio outputs can be used
if additional amplification is desired (e.g.,
Russound DPA-1.2 two-channel amplifier). Use
quality RCA signal cables to ensure a constant
quality audio signal.
INSTALLER
CAM6.6
33
