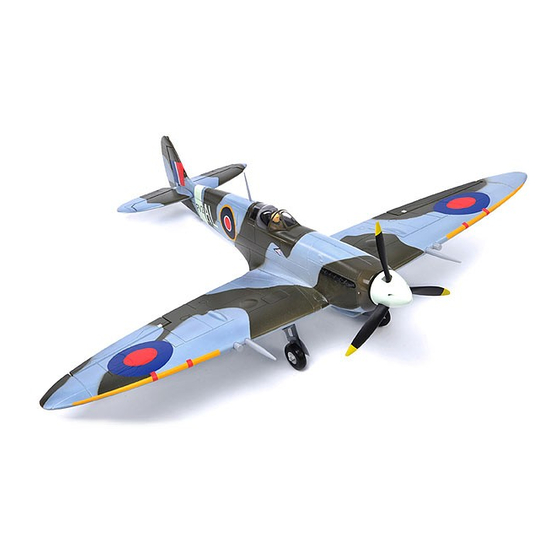

FMS Spitfire Operating Manual

Please read before operating this system!
We would like to thank you for purchasing an innovative new product, designed for the
hobby enthusiast. The SPITFIRE incorporates the use of a Radio Transmitter, a speed
controller, a electronic motor, and electronic servos to provide long time enjoyment and
give the user an introduction into the excitement of R/C flight.
Main specification
SPECIFICATION
WINGSPAN : 1400mm (55.2 inches)
LENGTH : 1180mm ( 46.4inches)
WEIGHT : 1600g (56.4 oz)
: 14.8V Li-Po Battery
BATTERY
POWER SYSTEM : Outrunner Brushless Motor
RC SYSTEM : 6 Channel, 7 Servos And 1 Brushless ESC
The airplane offers the following characteristics
High speed, high scale performance, and suitable for mediate or a above level
modelers.
1
Notice!
Don't fly the airplane until one hour later after finishing assembly, as the glue may not
function well.
Preparation before flight
1 . C h a r g e t h e b a t t e r y, G r e e n 2. Throttle in lowest level,and put
l i g h t m e a n s f u l l c h a r g e d . trim in middle level.
3.Turn on the transmitter. 4.Connect power battery, adjust the
elevator and rudder.
6
Shenzhen Famous Electronic Tech Co.,Ltd.
rd
Add: 4/F,Building5,The 3 Industry Zone, Tangtou, Shiyan Town,
Bao'an District, Shenzhen City, China 518105
Tel: +86-755-29681351
Fax: +86-755-29512328
Email: info@fmsmodel.com
Http:// www.fmsmodel.com
Statement
1 This is not a toy. lt is for experienced modelers only. You are responsible for the safe
operation of this model and any damage or harm it may cause;
2 Please adjust this plane according to instruction and make sure finger and other parts
out of rotating parts of plane, or it may cause damage to the plane or injury.
3 Users should follow all instructions properly and assemble the model
correctly. it is your responsibility to insure the battery's charged
correctly, following these instructions.
Safety precautions！
Please read this section until you fully understand!
(1) Do not fly in strong wind or bad weather
(2) Never fly the model in crowded areas, where there are lots of people, automobiles
on the road or power lines overhead. Also do not to fly around the airport. Please
make yourself enough room for the flying and operating, as the plane can travel at
high speed. Remember you are responsible for the safety of others.
2
SPARE PART LIST
Fuselage Main Wing Set Elevator Rudder
Spinner Propeller Canopy Linkage Rod
Brushless Motor 9g Servo Brushless ESC
Screw Set 17g Servo Landing Gear Set Battery
Motor Mount 6CH 2.4GHz Receiver
Sticker Cowl Motor Board 6CH 2.4GHz
Transmitter
CENTER OF GRAVITY (C.G.)
100mm
7
SPITFIRE
OPERATING MANUAL
Shenzhen Famous Electronic Tech Co.,
(3) Children under the age of 12 should have an adult guide.Never recommend for the
children under the age of 14.
(4) Never leave the charger in wet conditions.
(5) The SPITFIRE is made from PA and polythene which are tinder. When it meets the
heat, transfiguration can easily happen, so you must keep it away from heat.
3
Flight Preparation
Make sure that batteries in your transmitter are fresh and the antenna is extended all the
way up. This will ensure full range for your aircraft. lf you notice the plane is going to crash,
cut throttle immediately. This will minimize damage.
Flight adjustment
1. SPITFIRE will fly better with fully-charged batteries.
2. Keep flight straight: when you find it is difficult to fly straightly, please adjust the trim
on the transmitter. For example, when you find SPITFIRE always fly leftward please push
the trim on the transmitter in versedirection---right, as this will move the rudder to
compensate.
3. Keep flight horizontal: when you find it is difficult to fly SPITFIRE straightly, please
adjust the trim on the transmitter. For example, when you find it always fly upward; please
push the trim on the transmitter toward the top, as this will adjust the position of the
elevator.
Flight attention
1. Never fly in strong wind.
2. Do not fly at any place where another same-frequency model is flying.
3. Taking off:
Always take off toward the wind
lf you want to launch SPITFIRE by hands, maximize the power(including the micro
adjustment)and run several meters to accelerate yourself, at last throw it horizontally.
lf you want to launch SPITFIRE on the ground, maximize the power and let it accelerate,
keep it running straightly, after it runs more than 60 feet, you can pull the elevator joy stick,
8
ltd.
(6) Do not attempt to catch the SPITFIRE while flying, please do not touch propeller.
(7) Never leave this system unattended around children with battery in the unit, as injury
may be caused due to children's turning on the transmitter or the plane.
(8) During the preparation for the flight, please remember to turn on the transmitter before
connecting the battery pack.
(9) Close the throttle on the transmitter before connecting battery otherwise the motor may
operate
4
4. Course: you need only 30% of the maximum power to keep SPITFIRE flying. lt is a
good idea to fly with power for a while and glide for a while .
In this way You can increase your maximum flight time and familiarize yourself with
landing approaches.
5. Landing: Before landing, switch off the power, fly toward the wind, and when SPITFIRE
flies near to the ground, you may pull the elevator joystick and it will land gently. It really
needs practice, although it sounds easy. it may be difficult for yo until you do this many
times.
Battery Charger User Manual
The design of FMS-08001 Li-battery balance charger conforms to the latest technology,
enabling the stable and balance charge to battery. This product has various advantages of
easy-to-use, safety and reliability etc, ensuring to avoid the reduction of battery
performance caused by unbalanced discharge and the risks resulted from unbalanced
charge.
Please read this manual carefully prior to use this product, ensuring to fully understand the
performance of FMS-08001 and product safety.
Power Supply Sizing
1. It is recommended to use 11-14V,20W,DC power supply, or use
Vehicle Battery>15AH, 12V(safety charge voltage range from 11V14V).
2. Do not use DC power supply>14V.
Technical Data:
1. Input: DC 11v-14v,1A,output:DC 12.6V,800mA (+-10%).
2. Available to balanced or unbalanced charge 2 or 3 battery blocks.
3. Dimension size:73×50×25mm.
4. The typical value of voltage difference among 3 full-charged battery blocks is lower than
40mV.
5. The cut-off voltage of charger ranges from 4.19V-4.21V.
9
A S S E M B LY
1. Install the main wing
7. Install the rudder.
Screw-PA2.6X40(2PCS)
4. Install the bracket
3. machine-gun hole .
5. Install the propeller. 6. Install the spinner.
7. Install the antenna. 8. Install the canopy.
5
Danger:
1. Do not charge 2 or 3 batteries at the same time.
2. Do not charge other batteries than Li-battery. Or else, It will cause battery
abnormal(over-heat or fire). The battery type must be validated prior to charging,
Warning:
In case of FMS-08001 in use, please stay and take care of the charging process .If any
accident occurs, terminate the charging process immediately. In addition, stop charging
immediately if the battery is overheating.
Notes:
1. In case of FMS-08001 in use, keep the charger away from inflammable thing. The
electric spark caused by connecting or disconnecting battery is highly dangerous to
cause explosion.
2. During the charger in use, please stay and take care of the charging process. If any
accident occurs, terminate the charging process immediately. In addition, stop charging
immediately if the battery is overheating.
3. Do not charge other batteries than Li-battery.
4. Do not charge immediately in case of battery in tepidity.
In case that charge the battery in tepidity, the battery can't be fully
charged to the highest capacity,
and thus can't reach the maximal performance. This maybe result into the failure due to
overheated. Therefore, the battery must be charged after battery is fully cooled.
5. Do not disassembly FMS-08001 and its accessories.
The disassembly or re-assembly of FMS-08001 and its accessories may cause
malfunction or failure, and also cause malfunction of abnormal operation.
Introduction:
1. Connect the charger with regulated power supply, the red LED of power supply is on.
2. Connect the battery to be charged , the green LED is on, and then start the constant-
current-restricted –voltage charging mode with 800mA.
3. The green LED will be off after charge fully completed.
10
