Summary of Contents for PP Systems SBA-5

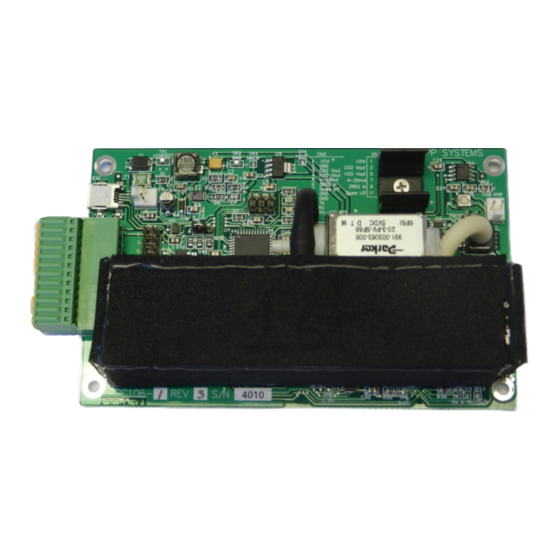

- Page 1 SBA-5 CO Analyzer Version 1.06 © 2015 PP Systems. All Rights Reserved 04 November 2015 PP Systems Inc. 110 Haverhill Road, Suite 301 Amesbury, MA 01913 U.S.A. Tel: +1 978 834-0505 Fax: +1 978 834-0545 Email: support@ppsystems.com Web Site: http://www.ppsystems.com...
- Page 3 This page is left intentionally blank.
-
Page 4: Table Of Contents
Indicating LEDs ........................12 Installation ......................12 Mounting the SBA-5 ..................13 SBA-5 Gas Circuit .................... 14 SBA-5 CO2 Gas Analyzer with Enclosure ............15 Gas Connection ....................15 Terminal Block on Enclosure ................16 SBA-5 Recalibration ..................17 Recalibration Procedure .................. 17 SBA-5 Communication .................. - Page 5 Servicing The SBA-5 ..................30 Pump ....................... 30 Removing a Pump ........................30 Servicing a Rotary Vane Pump ....................30 Infrared Source ....................31 Zero Valve ....................... 31 User Notes ......................32 SBA-5 CO2 Analyzer Operation Manual – Version 1.06 - 5 -...
-
Page 6: Preface
User Registration It is very important that ALL new customers register themselves with us to ensure that our user’s list is kept up to date. If you are a PP Systems’ user, please register yourself electronically on our web site at: http://www.ppsystems.com/user_registration2.htm... -
Page 7: Service & Warranty
If for some reason, a fault is covered under warranty, it is the responsibility of the customer to return the goods to PP Systems or an authorised agent for repair or replacement of the defective part(s). -
Page 8: Technical Specification
Dual 0-5V linear (CO 4-20 mA (CO only) Digital Interface RS-232 (Terminal block) USB (Miniature 5 pin) Humidity Sensor Input Power Supply 6-18 VDC SBA-5 CO2 Analyzer Operation Manual – Version 1.06 - 8 -... - Page 9 Enclosure (Part No. AGA407 and AGA408) Includes the SBA-5 PP Systems is continuously updating its products and reserves the right to amend product specifications without notice. All brand/product names are trademarks of their respective owners. SBA-5 CO2 Analyzer Operation Manual – Version 1.06...
-
Page 10: Introduction & Overview
(PCB). All components are located on the board. Powering up the SBA-5 The SBA-5 requires a 6-18V DC input to power up the analyzer. Power can be applied to 3 different connectors on the SBA-5 board (CN2, CN3 or CN4). See sections below for appropriate connections. -
Page 11: Sba-5 Warm-Up
C and performed the first ZERO. SBA-5 Warm-up We recommend allowing the SBA-5 to warm up for at least 30 minutes to ensure best operation. For the first 10-15 minutes, warm-up messages are output via digital lines (RS232 and USB). -
Page 12: Input/Output Header (Cn4)
18. Power and Signal Ground Indicating LEDs There are a couple of LEDs located on the SBA-5 board to assist with system troubleshooting: LED1 HB Represents the ‘heartbeat’ of the SBA-5. It flashes at 5 Hz indicating that the system is operating properly. -
Page 13: Mounting The Sba-5
4 Mounting Locations. Ø3.5 mm plated thru holes electrically connected to power ground. Ø6.5 allowance for screw head on both sides. 30.6 [1.205] IRGA 13.4 [0.526] 0.0 [0.000] -4.0 [-0.157] SBA-5 CO2 Analyzer Operation Manual – Version 1.06 - 13 -... -
Page 14: Sba-5 Gas Circuit
Introduction & Overview SBA-5 Gas Circuit The following diagram illustrates the gas circuit used by the SBA-5. SBA-5 Plumbing with Pump Downstream S ensor E x haust Optional Pum p S am ple Inlet Zero Valve IRGA S odalim e CO 2... -
Page 15: Sba-5 Co2 Gas Analyzer With Enclosure
“Auto-Zero” where CO2 free gas is periodically flushed through the sample cell. (See Measurement Principle on page 10. Normally this is done using a CO2 scrubber such as soda lime. If required, PP Systems can supply an absorber column and soda lime for providing this function. See below. Absorber... -
Page 16: Terminal Block On Enclosure
Power and Signal Ground Power and Signal Ground RS-232 TX to PC Serial Port D9-2 RS-232 RX from PC Serial Port D9-3 RS-232 Ground to PC Serial Port D9-5 SBA-5 CO2 Analyzer Operation Manual – Version 1.06 - 16 -... -
Page 17: Sba-5 Recalibration
It is vital that both of these references are accurate. Recalibration Procedure 1. Power up the SBA-5 and connect it to your computer and execute the GAS software and allow the SBA-5 to warm-up for approximately 30 minutes. 2. To avoid excess pressure in the SBA-5 sample cell and possible damage to the analyzer, you must connect the sample line with a “T”... -
Page 18: Sba-5 Communication
The spare I/O pin on the terminal block CN3 and the I/O header CN4 can be set to different modes of operation. On power up or if a “J0” command is sent to the SBA-5, the spare I/O pin is a digital 0-5V output representing data valid. -
Page 19: 4-20 Ma Output
SBA-5 will power-up in the desired mode. The SBA-5 main voltage input can be any voltage between about 6.5 V and 18 V. If only 6.5 V is supplied, then the 4-20 mA output will only be able to provide 20 mA output when the the total resistance of the wire leads and the data logger shunt is 300 Ohms or less. -
Page 20: Command Summary
If the command received by the SBA-5 is valid, then the command is returned to the PC as a response. If a command received by the SBA-5 is not valid, then an error message will be returned to the PC as a response. Commands that include a value or range must be terminated with a Carriage Return (CR) i.e. -
Page 21: Measurement Command Response
For example, when value is 212 (=128+64+16+4) the output string will be “M aaaaa bbbbb ccc.ccc dd.d gggg j” SBA-5 CO2 Analyzer Operation Manual – Version 1.06 - 21 -... -
Page 22: Zero Valve Related Commands
Default is Short in which the autozero sequence is approximately 20 sec long. Longer duration zero cycles can be useful if the flow rate through the SBA-5 is lower than 100 ml/min or the measured gas concentration is above 10,000 ppm to insure fully purging measurement gas from the cell prior to recording a zero reading. -
Page 23: Co2 Related Commands
User should set USF to 1.00 prior to performing recalibration measurements. Note: U command was added in V2.04. See additional note at end about upgrading an SBA-5 from V2.03 and earlier to V2.04 or later. L<value>CR Low CO2 In [ppm] alarm. range: 0-100000 (floating point). In... -
Page 24: Other Commands
SBA-5. Restore the factory default configuration and calibration to the volatile memory working area. At SBA-5 power on, the non-volatile memory working area is copied to the volatile memory working area. SBA-5 CO2 Analyzer Operation Manual – Version 1.06 - 24 -... -
Page 25: Command Files
Any of the commands can be included in a text file created by a program such as Microsoft Notepad. This file can be downloaded to the SBA-5 by using the HyperTerminal menu item Transfer>Send Text File…. Command a zero operation before transferring the command file to ensure the maximum time until the next zero operation. -
Page 26: Upgrading Sba-5 Firmware
2.03 and below, the CO2 will read 0 until the User Scale Factor is set to 1.00. After upgrading the firmware, send the command “U1.00” to the SBA-5 to set the USF to 1.00, then send the command “X” to save the USF to non-volatile memory. -
Page 27: Maintenance
Maintenance Maintenance The SBA-5 is virtually maintenance free. If proper care is taken, the SBA-5 should last for many years. The user should make sure that the sample air is adequately filtered to protect the analyzer from dirt, dust, moisture, toxic gases, etc. In some PP Systems products, PTFE hydrophobic membranes with 3 micron pore size (Millipore FSLW-14200) are mounted into 12.5... -
Page 28: Soda Lime
There is also a small “O” ring on each of the absorber end cap fittings. These should be in good condition. Replacement “O” ring and filter sets can be ordered from PP Systems if required. See figure below for location of “O” rings and foam pads. The white plastic filter disks are located on the black end caps inside the absorber column. - Page 29 Eye Contact Irrigate thoroughly with clean water. Obtain medical attention. Ingestion Wash out mouth thoroughly. Drink water. Obtain medical attention. HAZARD LABELLING Transport Codes None required. Hazard Classification None. SBA-5 CO2 Analyzer Operation Manual – Version 1.06 - 29 -...
-
Page 30: Servicing The Sba-5
Pump The sampling pump provided by PP Systems is a “rotary vane” style pump and components wear with prolonged use and material from the vanes may build up within the pumps. The risk of this situation occurring can be minimized by regular pump servicing. -
Page 31: Infrared Source
When finished, run the pump in air for at least 15 minutes to allow any residual alcohol to evaporate. Ideally, let the pump dry overnight before plumbing back up to the SBA-5. If the pump is reconnected prematurely, the soda lime in the absorber column will exhaust quicker than usual. -
Page 32: User Notes
User Notes User Notes SBA-5 CO2 Analyzer Operation Manual – Version 1.06 - 32 -...
