Installation Instructions
Electrical Installation
1.
Connect the PTU 025 unit to the C-option port.
Ensure that the connectors are secure in sockets on
both ends and secure the cable inside the enclosure
with cable binders. See Illustration 1.5.
2.
Wire the outputs for the related signals and statuses.
3.
Mount the front cover of the frequency converter.
4.
Power up the frequency converter. Ensure that the
frequency converter identifies the PTU 025 unit.

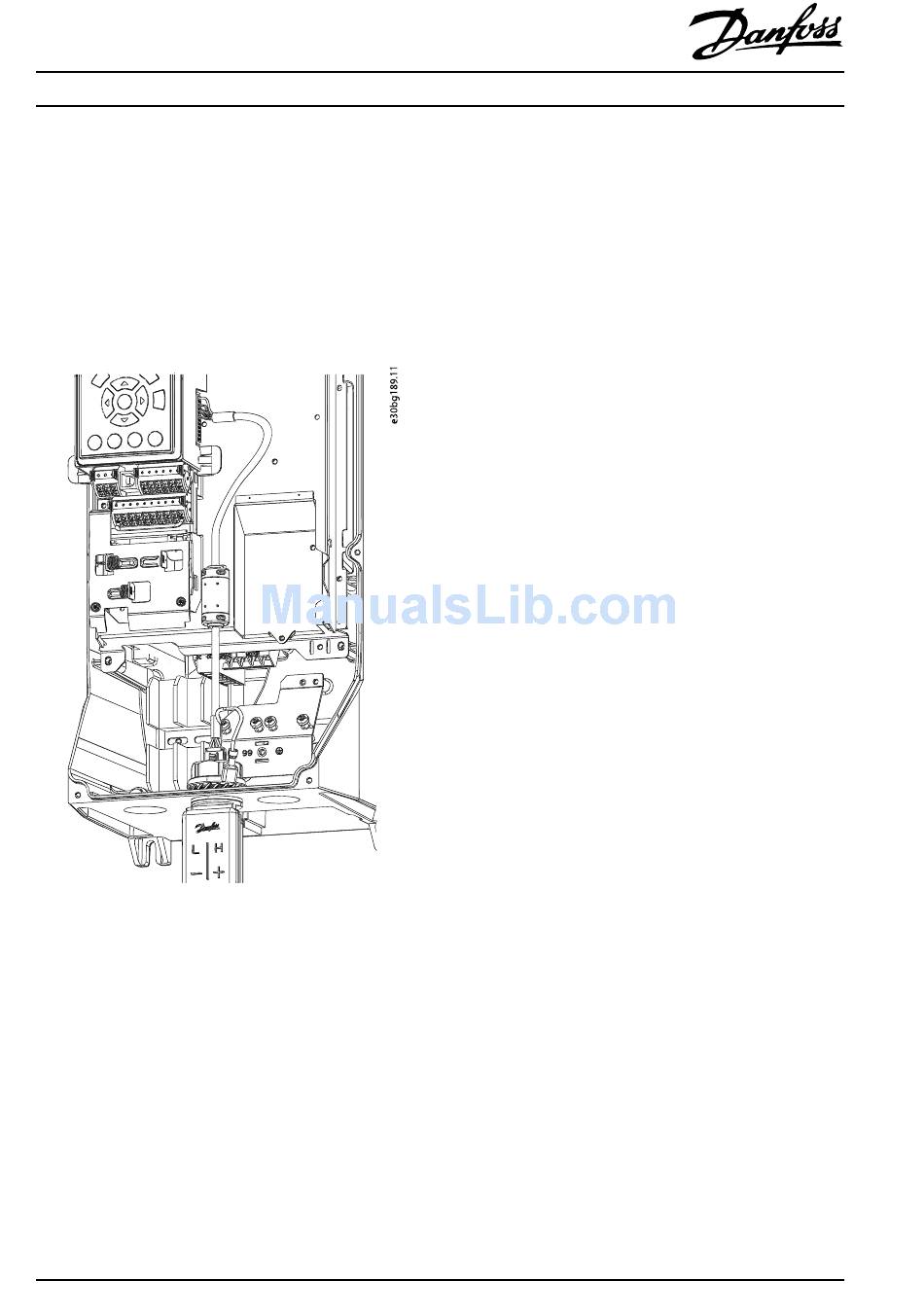

Illustration 1.5 PTU 025 Electrical Connection to the C-option Port
4
Pressure Transmitter Unit PTU 025
®
VLT
HVAC Drive FC 102
Danfoss A/S © 12/2017 All rights reserved.
MI08A102
