PRELIMINARY

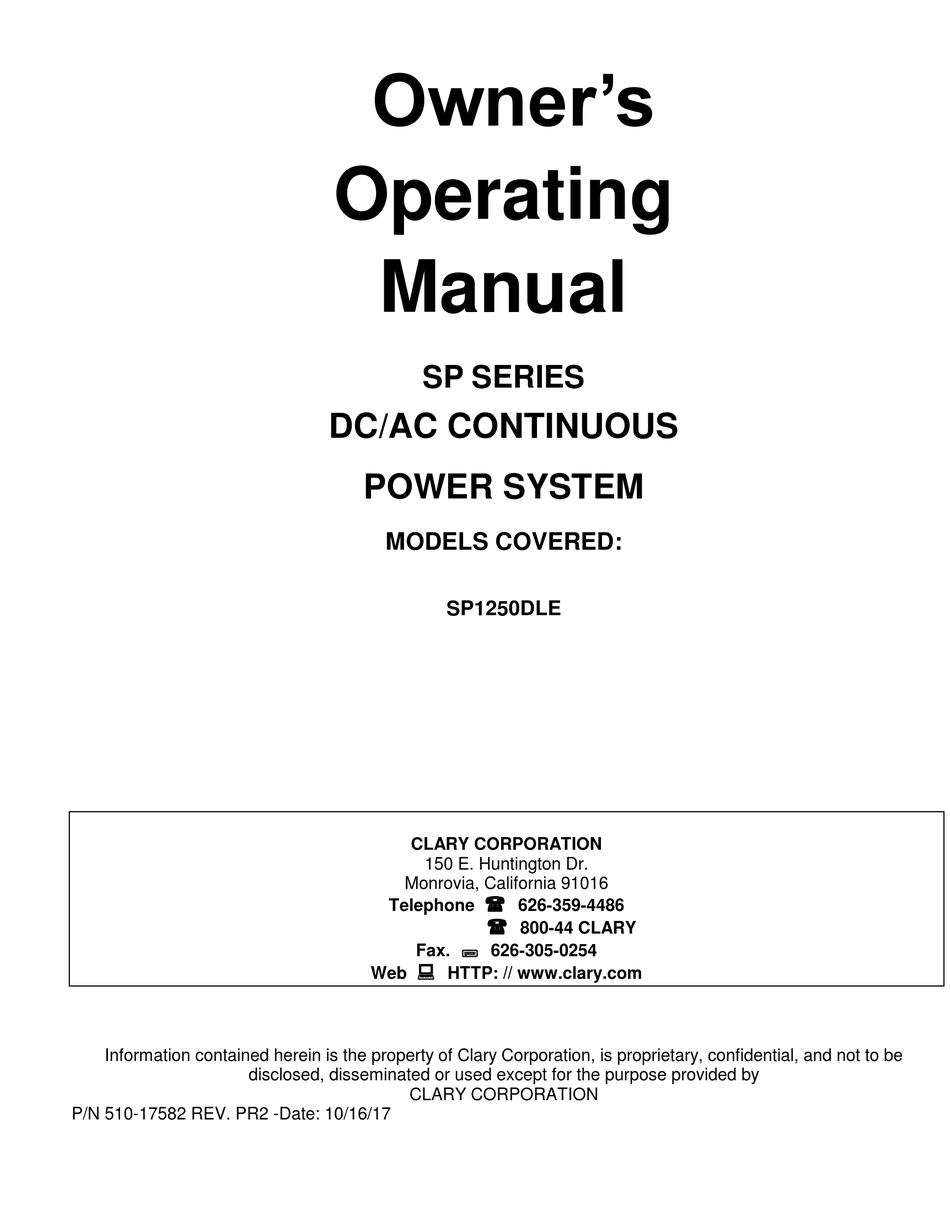

Owner's
Operating
Manual
SP SERIES
DC/AC CONTINUOUS
POWER SYSTEM
MODELS COVERED:
SP1250DLE
CLARY CORPORATION
150 E. Huntington Dr.
Monrovia, California 91016
Telephone
626-359-4486
800-44 CLARY
Fax.
626-305-0254
Web
HTTP: // www.clary.com
Information contained herein is the property of Clary Corporation, is proprietary, confidential, and not to be
disclosed, disseminated or used except for the purpose provided by
CLARY CORPORATION
P/N 510-17582 REV. PR2 -Date: 10/16/17
Advertisement
Table of Contents
Related Manuals for Clary Corporation SP1250DLE
Summary of Contents for Clary Corporation SP1250DLE
- Page 1 Fax. 626-305-0254 HTTP: // www.clary.com Information contained herein is the property of Clary Corporation, is proprietary, confidential, and not to be disclosed, disseminated or used except for the purpose provided by CLARY CORPORATION P/N 510-17582 REV. PR2 -Date: 10/16/17...
-
Page 2: Table Of Contents
T H E C O N T I N U O U S P O W E R C O M P A N Y TABLE OF CONTENTS TITLE PAGE TABLE OF CONTENTS INTRODUCTION TECHNICAL DESCRIPTION PACKAGING PHYSICAL DESCRIPTION SP1250DLE INSTALLATION OPERATION SIGNALS AND INTERFACING USB SETUP SPECIFICATIONS BYPASS BOX (SPH-302) CARE AND MAINTENANCE... -
Page 3: Introduction
INTRODUCTION This Owner’s Operating Manual is provided with your ongratulations! You have selected the new SP Series UPS. It will enhance your highest quality protection for your continuous understanding of the product and its functions. WE power needs. This unit offers a quiet and STRONGLY URGE YOU TO READ THIS MANUAL compact package with superior performance you can COMPLETELY, PRIOR TO BEGINNING... -
Page 4: Technical Description
When the input AC utility line fails, the battery circuit The SP1250DLE Series is a true on-line, DC/AC within this system takes over to ensure continuous continuous power source. This product is a design power. -
Page 5: Packaging
PACKAGING our UPS has been carefully packaged to These units are encapsulated in a protective wrap withstand most abuse sustained during that comes apart once the product is removed from shipment. The packing material has been the shipping carton. Save all packing material for specifically designed to protect this system for future use. -
Page 6: Physical Description Sp1250Dle
The important function confirmation. This feature has been attributes of the SP1250DLE Series unit are implemented into the system design to avoid numbered to assist you in locating them on your... - Page 7 SP1250DLE 24VDC FUSE SYSTEM DC IN 15A/120V 12VDC SIGNAL +12V SP1250DLE FRONT PANEL VIEW AC IN ALARM LED AC IN FUSE COLD START/TEST SWITCH AC OUT – LOAD 1 LOAD 1 SWITCH AC OUT – LOAD 2 LOAD 2 SWITCH...
- Page 8 Max. Current DC OUTPUT 48 VDC-8 Amp 24 VDC-6 Amp 12 VDC-6 Amp 24VDC 12VDC 48VDC SP1250DLE REAR PANEL VIEW 48VDC OUTPUT 12VDC OUTPUT 24VDC OUTPUT SNMP (OPTIONAL) Page 8...
-
Page 9: Summary Of Indicators And Controls
INPUT FUSE – Input Inlet protection. 15A, 250VAC, 3AG. AC OUT – IEC Outlet C13 type used to supply 120VAC Inverter generated power provided. The SP1250dLE provides two outlets labeled Load 1 and Load 2. They can be separately controlled via the Load 1 and Load 2 switches. -
Page 10: Installation
INSTALLATION breathing space the system has, the cooler it The system is lightweight and can be easily moved. operates. Some important points to consider when positioning The air should remain free from excessive dust a unit for operation: The installation site should maintain an ambient air and chemical fumes. -
Page 11: Operation
OPERATION nce the system has been properly installed, it is ready to operate. The following procedures will explain how to start-up the system while plugged into rated electrical power and also how to start-up with no AC power available. Normal Operation on AC Start-Up: ... -
Page 12: Signals And Interfacing
SIGNALS AND INTERFACING here is one DB-9, subminiature, female connector and two USB Connectors. These connectors are provided for communications links to a computer or sophisticated monitoring device. Use the USB Type B connector when using the Clary Universal Traffic software which can be downloaded at www.Clary.com. See following page for USB setup instructions. -
Page 13: Usb Setup
USB SETUP 1. You may download the necessary software from our website at www.Clary.com/ftpsite/ Download and unzip these two files: o SP560/SP1250LE Software o CDC_PCDriver 2. Connect the USB cable from your computer to the UPS’s USB port (use the USB type B (Square) port). - Page 14 6. Select the “Include this location in the search:” then click “Browse”. Select the CDC_PCDriver Folder then click “Next”. 7. The driver will then be installed. Page 14...
- Page 15 Driver is now installed. Click “Finish”. 9. Go to your device Manager, then click on the “Ports (COM & LPT)” tab. You will see the USB CDC serial port emulation (Com 1, 2, 3…etc.). This will be the com port assigned to your USB port.
-
Page 16: Specifications
SPECIFICATIONS ELECTRICAL Input Voltage 120VAC 85VAC to 155VAC (without Battery discharge) Frequency 45Hz to 65Hz Output Voltage/Max Current 120 VAC +3% 7.3 Amps Max Rated Power..875W Total 48 VDC +3% 8 Amps 24 VDC +3% 6 Amps 12 VDC+3% 6 Amps Frequency 50Hz or 60Hz +.25% (software selectable) for 120VAC Output Crest Factor Ratio... -
Page 17: Bypass Box (Sph-302)
BYPASS BOX (SPH-302) AC-OUT AC-IN SPH-302 BYPASS - SWITCH -OFF CB1-15A AC-OUT AC-IN SPH-302 BYPASS BOX VIEW AC-IN – 3 Position Connector BYPASS SWITCH (SW1) CIRCUIT BREAKER – 15A AC-OUT – 3 Position Connector GENERATOR IN – IEC C14 UPS AC-OUT - IEC C14 UPS AC-IN –... - Page 18 SUMMARY OF INDICATORS AND CONTROLS (SPH-302) BYPASS SWITCH – When switch is in the “ON” Position, bypass box AC-Out will provide inverter power from the UPS as long as inverter power is available. If inverter power is not available, bypass power will be supplied at the output.
-
Page 19: Care And Maintenance
CARE AND MAINTENANCE his device is designed to be maintenance-free. CAUTION - A battery can present a risk of electrical It can be cleaned with a damp cloth or shock and high short circuit current. The following nonabrasive cleanser. precautions should be observed when working on WARNING: Do not use ACETONE-BASE batteries. -
Page 20: Service And Repair
SERVICE AND REPAIR our SP1250DLE Series UPS is backed by one of the finest customer service teams available. Write or call them at any time to The RMA number issued to you should appear on obtain more information about your unit. -
Page 21: Warranty
TIME AND SCOPE OF WARRANTY: 1.1. Clary Corporation hereby warrants parts shipped under this Agreement to be free from defective workmanship for a period of 2 years following date of shipment. Accidental damage, misuse or normal wear and tear shall not be construed as a defect.
