Projector Description

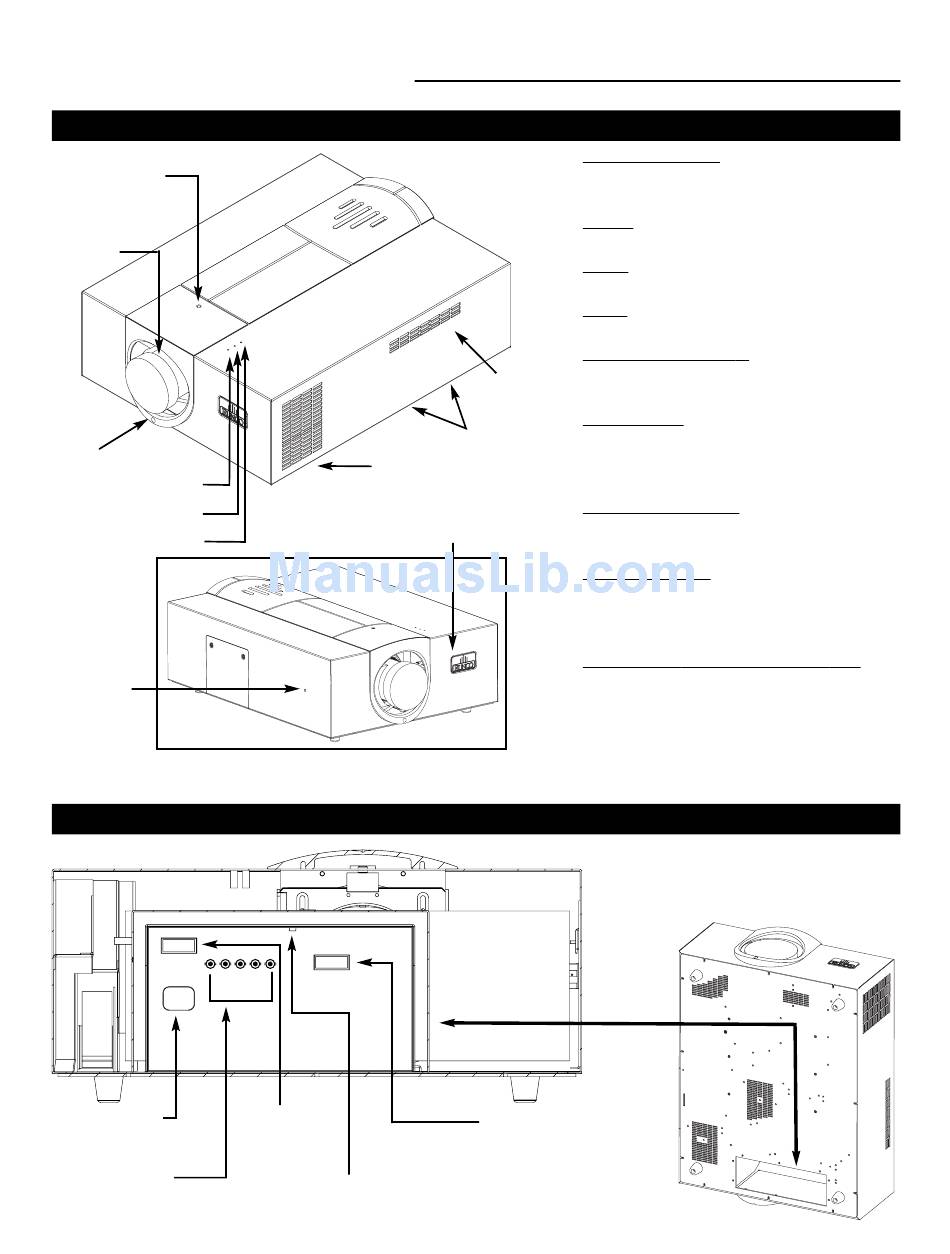

Top View

Vertical
Lens Shift
Motorized
Focus &
Zoom
Cover Screw
Power
Lamp
Temp
Horizontal
Lens Shift

Input Panel

AC Power In
(100-240 VAC)
RGB Input
(from DHD Controller)
Bottom Intake Vents
Exhaust Vent
Lens IR Receiver
DVI-I IN
PC INPUT
Service Reset
To be used by Authorized
Runco Service Technicians
Vertical Lens Shift: Using the provided
adjustment tool, turn this to move the lens up
and down.
Power: Led is red when unit is in
standby, blue when it is in operation.
Lamp: When the lamp is on, this LED is blue.
When the lamp is off, this LED is off.
Temp: If the Projector has overheated and
shut down, this will light red.
Intake & Bottom Vents: This is where cooler
air enters the Projector. Ensure that it is never
Intake Vents
blocked or overheating will result.
Exhaust Vent: This is where hot air exits the
Projector. This air can be quite hot. Ensure
that there are no heat-sensitive objects near it
and that it is never blocked.
Horizontal Lens Shift: Using the
provided adjustment tool, turn this to move the
lens left and right.
Lens IR Receiver: Located behind the logo
plate. Used for IR Focus & Zoom via the IR
Receiver. (Must turn logo plate 1/4 turn to
operate)
Reflectance Volume Regulation (RVR):
Allows motorized iris control of contrast ratio
versus light output for the best imaging per-
formance.
Note: Manual Zoom & Focus available on
fixed 0.8 lens only.
ComLink In
Connect the ComLink cable
from the DHD Controller here
9
Access to the Input Panel is through
the bottom of the Projector
