Addonics Technologies CPR5SA User Manual

Addonics
T E C H N O L O G I E S
Compact RAID
User's Guide
Technical Support
Phone: 408-453-6212
Hours: 8:30 am - 6:00 pm PST
Email: http://www.addonics.com/support/query/
CPR5SA

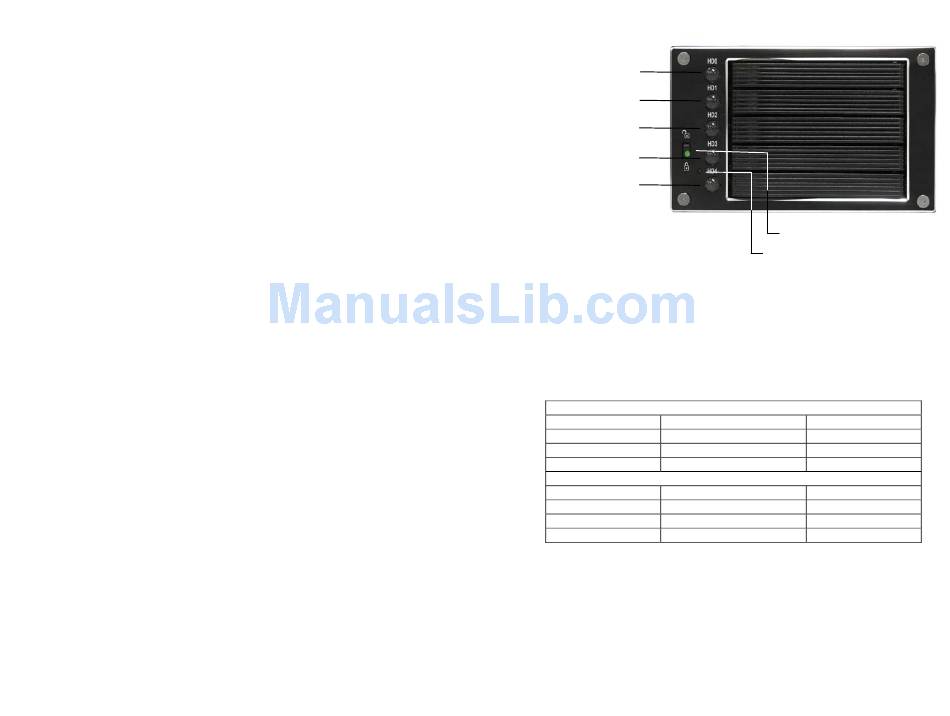

Enclosure Overview
HD0
HD1
HD2
HD3
HD4
HD0 – HD4 Button Functions:
A. Push-Open Button
- Press button for each drive slot to open the front HDD panel
- If the locking mechanism is set to LOCK position, the button cannot
be pressed. Put the locking mechanism to UNLOCK position to be
able to press the push-open button and open the front HDD panel
B. Drive Activity LED
Power LED
Action Message
Light On Power starting
Light On System is ready
Light Off Power is OFF
Drive Activity LED
Light On Hard drive installed
Light Off Hard drive uninstalled
Light On Hard drive fail
Flash Hard drive access
Power Switch
A. Power switch / Buzzer disable button
a. Buzzer disable: press button less than 2 seconds
b. Power switch: press button over 2 seconds
B. Reset Device / Change Mode button
a. Reset Device: press button less than 2 seconds
b. Change Mode: press button over 2 seconds
Locking Mechanism
Power LED
Color
Blue
Purple
No
Blue
No
Red
Blue
