Sniper EFI HyperSpark Distributor [Timing Control]

Sniper EFI HyperSpark distributors are designed to work with Sniper EFI systems for timing control. The design of
these distributors includes a Hall Effect Sensor for Crank Signal. The precision machined shutter wheel design
ensures accurate timing, even at very high engine speeds making them an excellent choice for Sniper installations
utilizing timing control.
Refer to the Instructions that came with the HyperSpark Distributor for complete instructions on installation.
Use the adapter harness supplied with the HyperSpark Distributor to connect to the Sniper EFI.
To configure the Sniper EFI correctly, choose the HyperSpark option for the Ignition type while running the wizard. If
changing the ignition type after having run the Sniper EFI already, make sure to set the Ignition type to HyperSpark
and set the reference angle to 57.5 degrees.

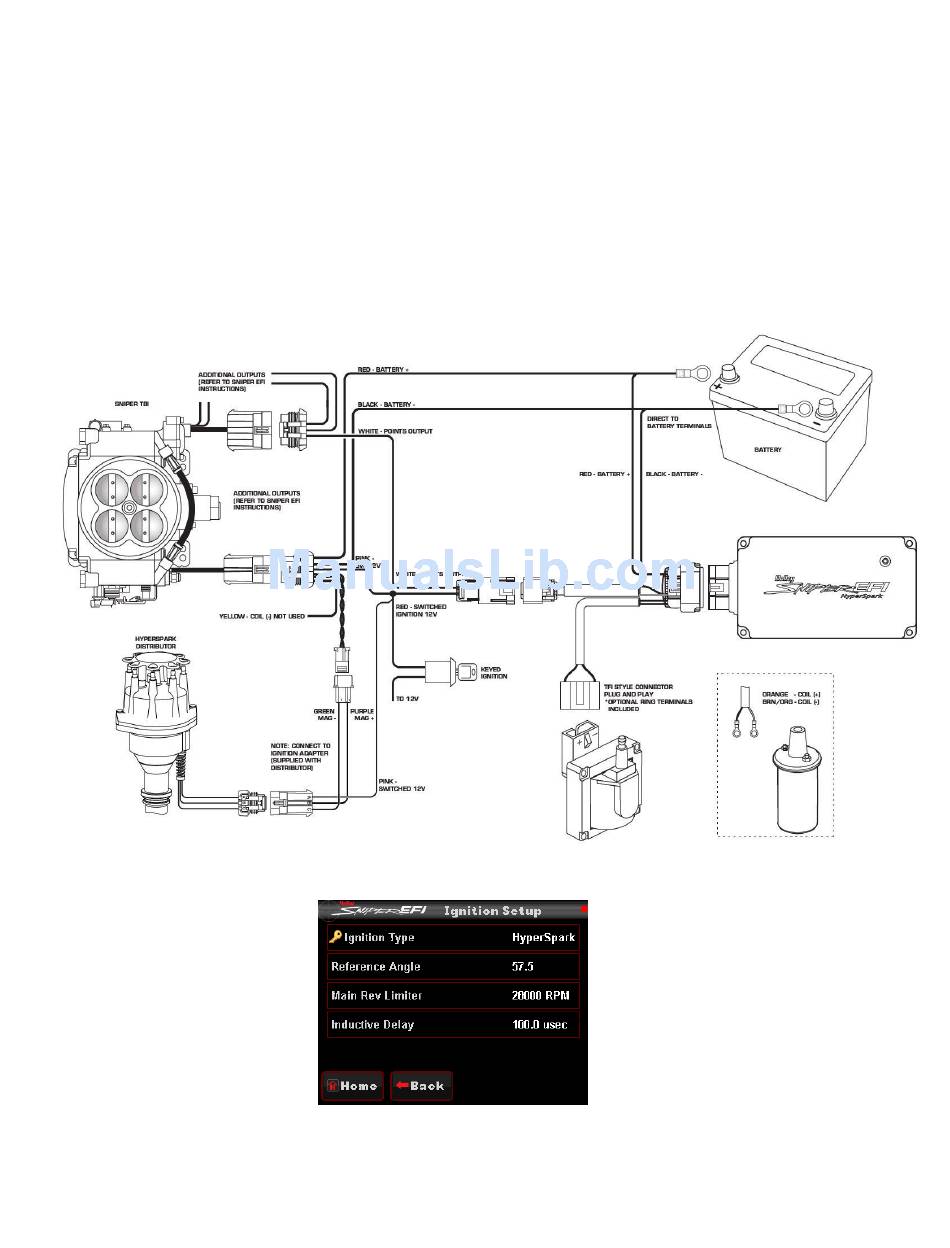

Diagram below shows how to properly wire the Sniper EFI with a HyperSpark Distributor.
Ignition Setup Screen for HyperSpark Distributor
31
