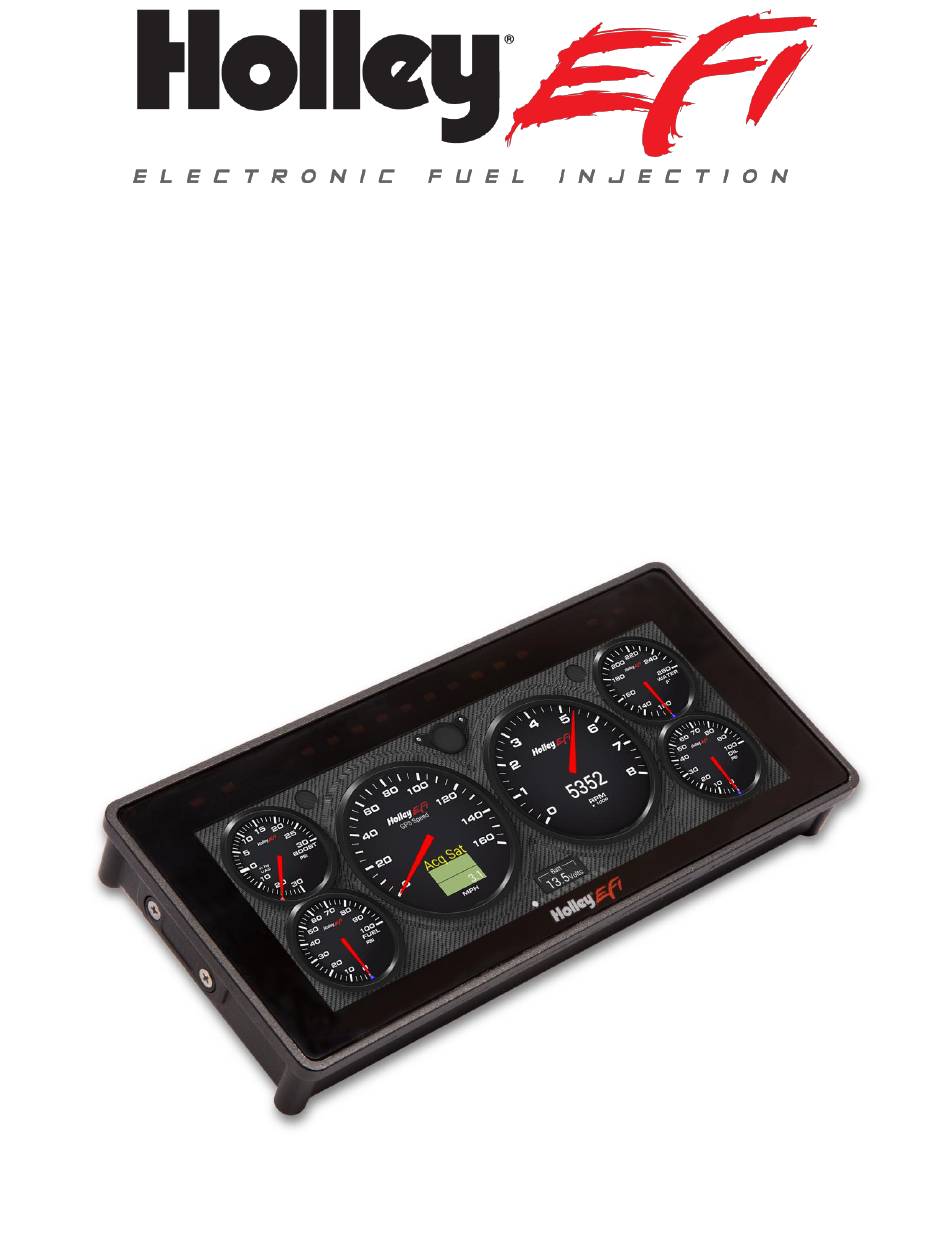

- Page 1 6.86” Pro Dash Quick Start Guide 553-112...
-
Page 2: Table Of Contents
Customizing the Gauge ..........................11 Backup/Restore ............................... 13 Data Log Playback ............................14 Firmware Upgrade ............................14 ATTENTION! THE USB FLASH DRIVE INCLUDED WITH YOUR PRO DASH CONTAINS A DETAILED USER MANUAL. ONE MAY www.holley.com. ALSO BE FOUND ONLINE AT... -
Page 3: Package Contents

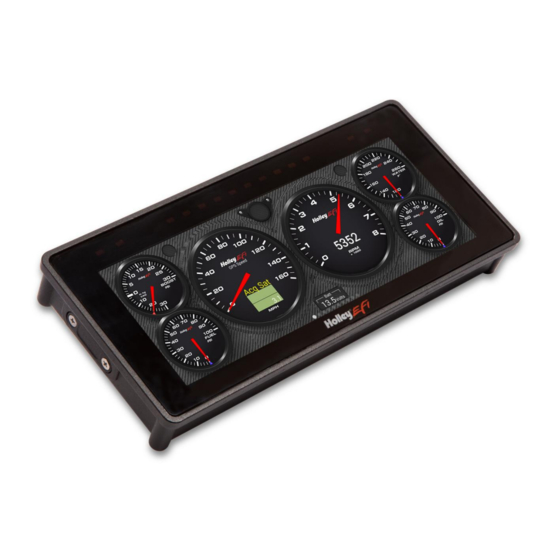

Introduction The Holley EFI 6.86” Pro Dash is customizable with a variety of gauge and indicator screens that can be programmed to display any parameter you need from a Holley EFI system. It also includes an integrated ten LED shift light as well as two LED’s on the top left and two on the top right that can be programmed as desired. -
Page 5: Connections
CAN Extension Cable Holley EFI main harnesses use two types of CAN connectors. Earlier harnesses use a 2 pin metripak connector. The kit includes an adapter to go from this to the 4’ extension harness (note the white power and black ground wires are NOT needed for the Pro Dash, but need to be connected if other CAN devices require it for their power supply). -
Page 6: Can Extension Harness
Note that the Pro Dash does not use the CAN cabling to supply power and ground for it, unlike some other Holley EFI CAN devices, nor does the Pro Dash supply power to the CAN cabling, which is provided by the EFI harness. -
Page 7: Usb
The unit has two standard USB type C locking receptacles (USB 2.0). Connect the supplied locking cable to either of the USB ports on the back of the unit and tighten the thumbscrews. This cable provides a type ‘A’ receptacle that can accept USB flash drives for saving data logs, uploading gauge screen layouts, background images, or firmware updates. -
Page 8: Main Menu
Main Menu Pressing anywhere on a gauge screen will bring up the navigational buttons. To access the main menu choose ‘Menu’ in the upper right corner of the screen. ECU Tuning View live Retrieve, Modify dash Utilities Gauge delete, and (HP &... - Page 9 Preconfigured Gauge Screens (HP and Dominator default screens shown, Sniper and Terminator X defaults will vary slightly) Layout 1 Layout 2 Layout 3 Layout 4 Layout 5 Layout 6 Layout 7 Layout 8 Layout 9...
-
Page 10: Modifying Channels On A Preconfigured Layout
Modifying Channels on a Preconfigured Layout Choosing ‘Customize’ from the Main Menu enables the gauge customization mode. Entering this mode will allow any of the preconfigured layouts to be modified, or one may be built from scratch. Any gauge channel can be changed to meet user needs. To do this, touch the gauge you wish to modify and push ‘Customize’. -
Page 11: Rename And Save
Rename and Save The export function (below) will allow any gauge layout to be renamed and saved internally or to the included USB flash drive. To export a layout (single screen), touch any bare area of the background. Choose Layout >Export NOTE: The last ‘saved’... - Page 12 Integrated LED Light Bar The 6.86” Pro Dash contains 14 integrated LED lights that can be user programmed for many functions. The Center 10 LED’s are used for a shift light. The outer four (LED’s A, B, C, D) can be custom configured for many uses.
-
Page 13: Backup/Restore
The “Orientation/Style” is the direction the lights will activate. The “Normal” selection will activate the lights from left to right. The “Inverted” selection will activate the lights from right to left. The “Outside In” selection will activate the lights from the outside(s) to the center. LED A, B, C, D Configuration The two LEDs on each side, can be custom configured individually. -
Page 14: Data Log Playback
Data Log Playback The Holley EFI Pro Dash will play back logs that have been locally recorded using the ‘Record’ button or retrieved from an HP or Dominator ECU. Pressing the ‘Playback’ button on the right side of the dashboard screen allows you to play back these logs from the dash’s internal storage or a USB flash drive.
