User Manual
QUICK SETUP GUIDE

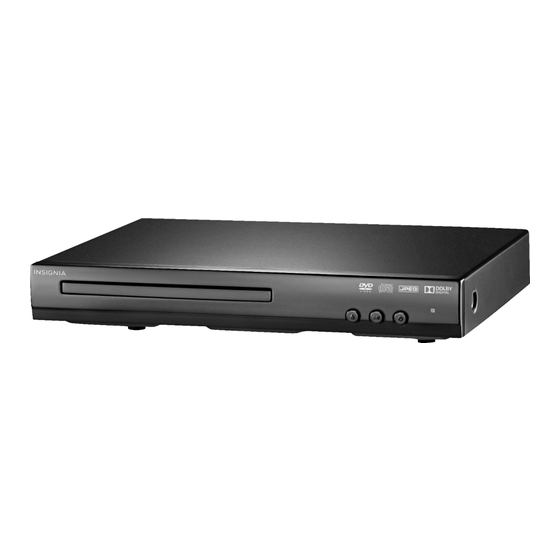

DVD Player
NS-HDVD18
PACKAGE CONTENTS
• DVD player
• Remote control
• AAA batteries (2)
• AV cable
• Quick Setup Guide
FEATURES
Front view
Power on/standby LED
Disc tray
Open/close disc tray
Play/pause Power on/off
Before using your new product, please read these instructions to prevent any damage.
Back view
Left audio output
Composite video output
Component video Pb output (blue)
Coaxial audio output
Component video Pr output (red)
Right audio output
Component video Y output (green)
Remote control
Open or close the disc tray
SUB-T (select subtitles)
Numbers
SEARCH
TOP MENU
ENTER (confirm selection)
Menu navigation
SETUP (opens setup menu)
Remote control
ZOOM
DISPLAY (time, title, chapter)
receiver
Play/Pause
Fast back
Previous
STOP

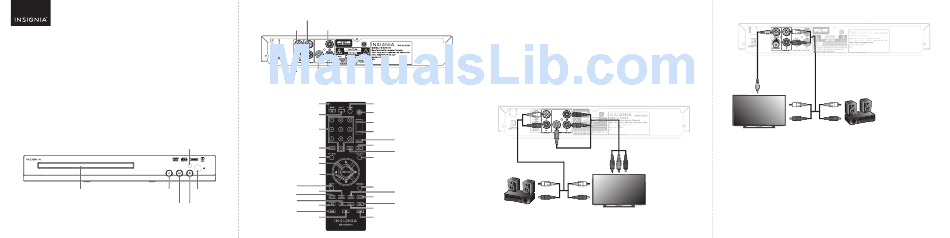

SETTING UP YOUR DVD PLAYER
1 Composite: Plug the yellow connector from the included AV cable into the VIDEO jack on your
DVD player. Plug the other end of the yellow cable into the composite video in jack on your TV
or monitor.
-OR-
2 Component: Plug the red, green, and blue connectors from an RCA cable (not included) into
the COMPONENT VIDEO OUT connectors (Y, Pb, and Pr) on the back of your DVD player and
into the component video in jacks on your TV or monitor, making sure to match the colors on
the connectors with the jacks.
Note: You may have to select the correct input on your TV or monitor.
Component video (better)
AUDIO (choose language)
Power on/off
REPEAT
RANDOM (begin playback from a random chapter or track)
CLEAR
RCA audio cables
A-B (set up a repeat play segment)
Program
DVD MENU
RETURN
SLOW
STEP
Fast forward
ANGLE
Stereo or Home Theater system
Next
AV (good)
Composite
video cable
TV or monitor
3 Composite or Component: Plug the white (left) and red (right) connectors from an RCA
Component video (RCA)
cable (not included)
audio cable to the L and R AUDIO OUT jacks on your DVD player to the white (left) and red
(better)
(right) audio in connectors on your TV, monitor, stereo, or home theater system.
Note: You can also connect a coaxial cable from your DVD player to an alternate audio device.
TV or monitor
RCA audio cables
Stereo or Home Theater system
