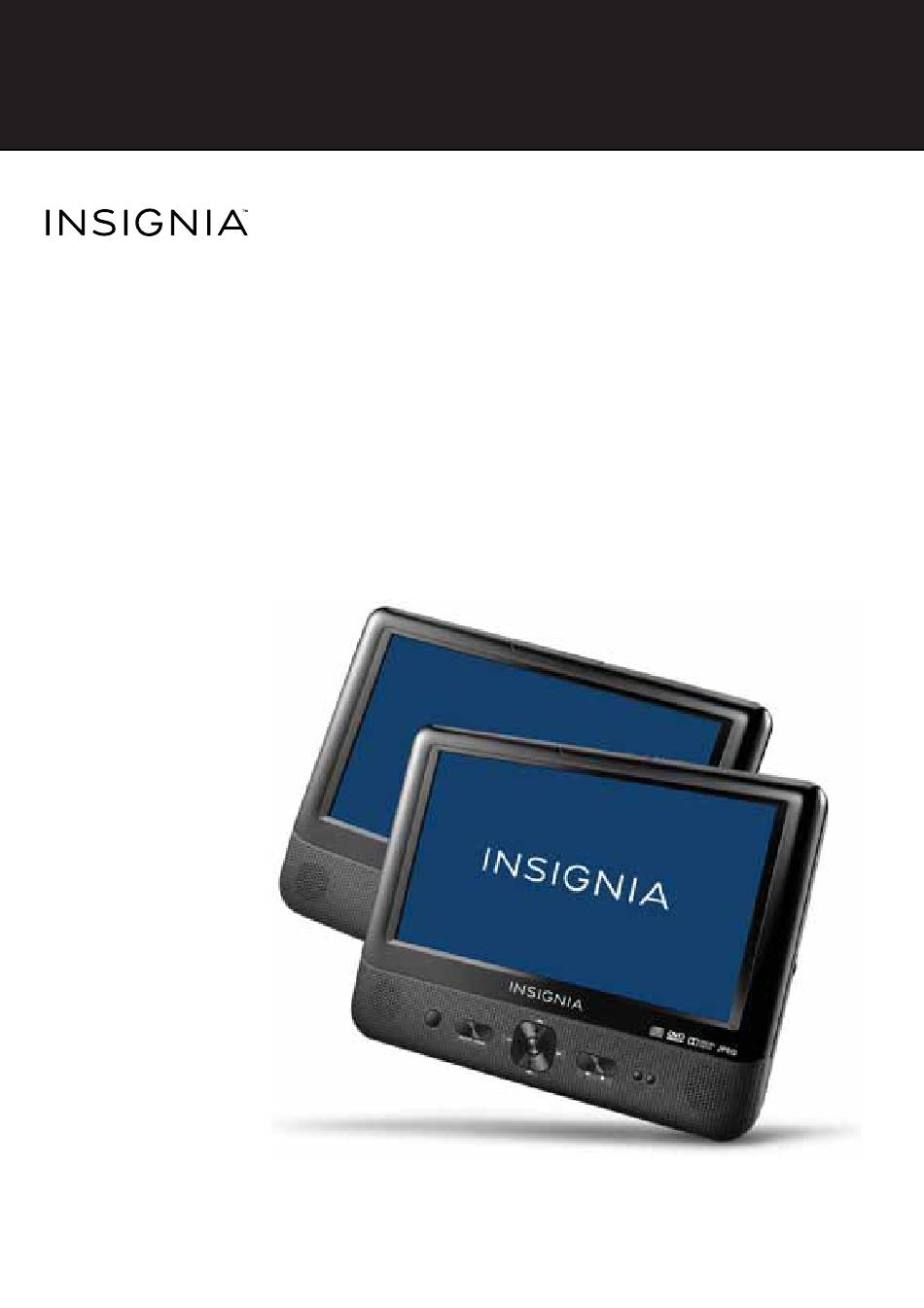

Page 1: Portable Dvd Player
USER GUIDE 9” Dual-Screen Portable DVD Player NS-D9PDVD15/ NS-D9PDVD15-MX Before using your new product, please read these instructions to prevent any damage. -
Page 2: Table Of Contents
Legal notices........... .26 ONE-YEAR LIMITED WARRANTY - INSIGNIA ..... . .27... -
Page 3: Important Safety Instructions
9” Dual-Screen Portable DVD Player Important safety instructions Read these instructions. 2 Keep these instructions. 3 Heed all warnings. 4 Follow all instructions. 5 Do not use this apparatus near water. 6 Clean only with a dry cloth. 7 Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. -
Page 4: Dvd Player
9” Dual-Screen Portable DVD Player • Vehicle power adapter • AV cable (for TV) • AV/DC cable • Quick Start Guide DVD player Front view SETUP FUNC. Item Description SETUP button Press to open or close the menu. FUNC. button Press to enter or exit the menu. - Page 5 9” Dual-Screen Portable DVD Player Item Description Power indicator Lights when your player is powered and turned on. Speakers Provide sound for CD and DVD playback. Back view Item Description Stand Pull out to set up your player on a desktop or table. Strap slots Slide the mounting straps through these slots when installing the player in a vehicle.
- Page 6 9” Dual-Screen Portable DVD Player Side view Item Description DC IN jack Connect the AC adapter or vehicle charger to this jack. DC OUT jack Connect the extra monitor to this jack using the AV/DC cable. AV OUT jack Connect the extra monitor to this jack using the AV/DC cable, or connect a remote monitor, TV, or amplifier to this jack using the supplied AV cable and an RCA cable (not supplied).
-
Page 7: Navigation Controls
9” Dual-Screen Portable DVD Player Top view Item Description OPEN switch Slide this switch to the left to open the disc tray. ON/OFF switch Slide to turn your DVD player on or off. Navigation controls Control Description / In Menu mode, press to move up in a list or menu. In playback mode, press to go to the previous title, chapter, or track. -
Page 8: Monitor
9” Dual-Screen Portable DVD Player Monitor Front view Item Description Speakers Provide sound for CD and DVD playback. www.insigniaproducts.com... - Page 9 9” Dual-Screen Portable DVD Player Back view Item Description Stand Pull out to set your player on a desk or table. Strap slots Slide the mounting straps through these slots when installing the player in a vehicle. www.insigniaproducts.com...
- Page 10 9” Dual-Screen Portable DVD Player Side view Item Description (volume Rotate this dial to adjust the volume. control) (headphone) jack Plug headphones into this jack. Note: When headphones are plugged in, the built-in speakers are muted. AV IN jack Connect the DVD player to this jack using the AV/DC cable. DC IN jack Connect the DVD player to this jack using the AV/DC cable.
-
Page 11: Function Menu
9” Dual-Screen Portable DVD Player Top view Item Description ON/OFF switch Slide to turn the monitor on or off. Function menu You must use the navigation control buttons on the player to navigate through the Function menu. MENU SRCH Subtitle Off Repeat Off Mute Off TITLE... -
Page 12: Setting Up Your Player
9” Dual-Screen Portable DVD Player Menu option Description AUD (audio) Select to select the DVD audio language. This option works only if the DVD has multiple audio languages. DISP (display) Select to display information about the disc, such as title, chapter number, track number, and time. - Page 13 9” Dual-Screen Portable DVD Player 2 Slide the horizontal straps A and B through the slots on the back of the DVD player or monitor, then fold and secure them on to the back of the mounting plate until the Velcro attaches. back 3 Bring straps C1, C2, D1, and D2 in front of the DVD player or monitor and attach to the Velcro as shown.
-
Page 14: Connecting To A 12V Vehicle Power Outlet
9” Dual-Screen Portable DVD Player Connecting to a 12V vehicle power outlet To connect to a 12V vehicle power outlet: Plug one end of the vehicle power adapter into the DC IN jack on the side of your player. 2 Plug the other end of the adapter into a 12V vehicle power outlet or vehicle cigarette lighter socket. -
Page 15: Connecting Headphones
9” Dual-Screen Portable DVD Player Connecting headphones To connect headphones: • Plug headphones into the headphone jack on both the DVD player and extra monitor. When headphones are plugged into the headphone jack, no sound comes from the built-in speakers. Connecting a TV or monitor You can connect your player to a TV or monitor so you can watch DVDs or view photos on the TV or monitor. -
Page 16: Using Your Player
9” Dual-Screen Portable DVD Player 2 Plug the connectors on an RCA cable (not included) into the connectors on the other end of the AV cable. Make sure that the colors on the connectors match. 3 Plug the other end of the RCA cable into the AV jacks on the TV or monitor, making sure to match the colors on the connectors with the jacks on the TV (or monitor). -
Page 17: Adjusting The Volume
9” Dual-Screen Portable DVD Player • Press to fast-forward the disc. Each time you press this button, the fast-forward speed changes from 2 to 4 to 8 to 16 to 32 times the normal speed. • Press to fast-reverse the disc. Each time you press this button, the fast-reverse speed changes from 2 to 4 to 8 to 16 to 32 times the normal speed. -
Page 18: Viewing Audio Cd Information
9” Dual-Screen Portable DVD Player • Chapter Remain–Shows the remaining playing time for the chapter. • Display Off–Turns off the information display. Note The information display automatically turns off if you do not press OK within eight seconds. Viewing audio CD information To view audio CD information: During playback, press FUNC. -
Page 19: Selecting A Viewing Angle
9” Dual-Screen Portable DVD Player 2 Navigate to MENU, then press OK. If the DVD has a main menu, the menu opens. Note Contents of DVD main menus vary from DVD to DVD. Some DVDs only let you start playback from the main menu. Selecting a viewing angle Some DVDs are recorded with multiple viewing angles for some scenes. -
Page 20: Enlarging The Display Image
9” Dual-Screen Portable DVD Player Enlarging the display image To enlarge the display image: During playback, press FUNC. to enter the Function menu. 2 Navigate to ZOOM and press OK. The following display appears. Current enlargement factor 3 Press OK one or more times to enlarge the image 2, 3, or 4 times when the display says “press OK to enlarge image. -
Page 21: Repeating A Track Or Cd
9” Dual-Screen Portable DVD Player Repeating a track or CD To repeat a track or CD: During playback, press FUNC. to enter the Function menu. 2 Navigate to and, when the display says “press OK to repeat, ” press OK repeatedly to select: •... -
Page 22: Viewing Photos
9” Dual-Screen Portable DVD Player Viewing photos Your can view photos copied as JPEG files to a CD on your DVD player. To view photos: Insert the CD containing the photos into the disc tray. Your DVD player reads the CD and starts displaying the photos. 2 To control playback: •... -
Page 23: Setup Menu Options
9” Dual-Screen Portable DVD Player Setup menu options Option Sub-options General Setup TV Display–Selects the aspect ratio. You can select: • Normal/PS –Select this option when the player is connected to a normal TV (4:3 aspect ratio). Wide-screen images are shown on the screen, but with some parts cropped automatically. -
Page 24: Troubleshooting
9” Dual-Screen Portable DVD Player Troubleshooting Problem Solution No sound or distorted sound. • Adjust the volume. • Make sure that headphones are not plugged in. When headphones are plugged in, the built-in speakers are turned off. • Make sure that all cables are inserted correctly into the appropriate jacks. Cannot fast-forward or fast-reverse •... -
Page 25: Cleaning Discs
9” Dual-Screen Portable DVD Player • Do not use irregularly shaped discs, such as heart-shaped or star-shaped discs, because they may cause your player to malfunction. • Do not expose a disc to direct sunlight or heat sources. • Clean a disc by wiping the disc from the center out with a cleaning cloth. •... -
Page 26: Legal Notices
9” Dual-Screen Portable DVD Player Legal notices FCC Part 15 This device complies with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 27: One-Year Limited Warranty - Insignia
Products and parts replaced under this warranty become the property of Insignia and are not returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own your Insignia Product during the Warranty Period. - Page 28 FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. INSIGNIA PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND...
- Page 29 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) www.insigniaproducts.com INSIGNIA is a trademark of Best Buy and its affiliated companies. Registered in some countries. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. V2 ENGLISH ©2014 Best Buy. All rights reserved.
