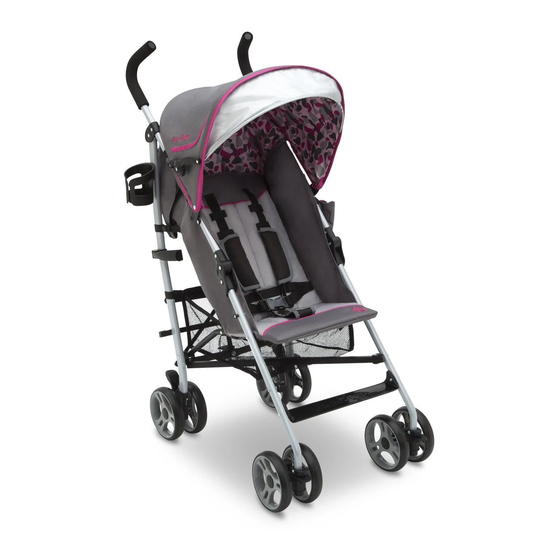

- Page 1 J is for Jeep Brand ® SCOUT AL STROLLER INSTRUCTION MANUAL ADULT ASSEMBLY REQUIRED STYLES AND COLORS MAY VARY 11588 Read all instructions BEFORE assembly and USE of product. KEEP INSTRUCTIONS FOR FUTURE USE. Customer Care Tel. 1-(800)-377-3777 www.deltachildren.com DCP101415V1...
-
Page 2: Consumer Information
Consumer Information • Please read these instructions before assembly and use of this product. • Adult assembly is required. WARNING • Use only for a child who weighs less than 45 lbs (20.41 kg). • Maximum weight limit for the storage bag is 3 lbs (1.36 kg). •... - Page 3 Parts Assembly IMPORTANT! Please remove all parts from the package and identify IMPORTANT! Before assembly or each use, inspect this product for them before assembly. damaged hardware, loose joints, missing parts or sharp edges. DO NOT use if any parts are missing or broken. Contact manufacturer for replacement parts and instructions if needed.
-
Page 4: Setup And Use
Assembly Setup and Use Latch Clip Side Frame To Unfold • Locate the latch clip on the side of the stroller. • Pull to release the latch clip on the side of the stroller. • Position the stroller upright on its rear wheels. •... - Page 5 Setup and Use WARNING Prevent serious injury from falls or sliding out: • ALWAYS use the restraint system. • Only children who have developed enough upper body control to sit without leaning forward can use the front seat in the upright position.
- Page 6 Setup and Use TO UNLOCK CANOPY OPEN CANOPY CLOSED Canopy Adjustment • The canopy can be adjusted to the open or closed position. TO LOCK TO LOCK Front Swivel Wheel base To lock the swivel wheel base: • Lift both swivel pedals until they “click” into the locked position.
-
Page 7: Securing Child
Securing Child Waist Belt Waist Belt TIGHTEN Crotch Belt Securing Child • Place your child in the stroller. Position the crotch belt between your child’s legs. • Pull shoulder straps over child’s arm and shoulder and fasten both strap ends to the restraint system. •... - Page 8 Storage Secondary lock • Lift the front wheels toward the closed canopy. primary locking mechanism Latch Clip Side Frame • Slide the latch clip onto the side frame to secure in the folded storage position. Hint: Make sure canopy is in the closed position before folding the stroller. •...
- Page 9 Manufactured for and distributed by: Fabriqué pour et distribué par: 114 West 26th Street, New York, NY 10001 Customer Service Tel. 1-(800)-377-3777 www.DeltaChildrensProducts.com customerservice@DeltaChildrensProducts.com MADE IN CHINA Customer Service www.DeltaChildrensProducts.com Tel. (800) 377-3777...
