Delta Children babyGap 14982 Instruction Manual

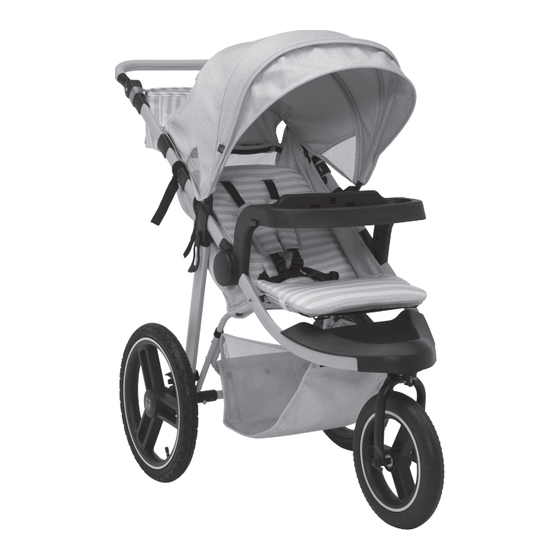

Trek jogging stroller
Hide thumbs
Table of Contents

Advertisement

Quick Links

14982
STYLES AND COLORS MAY VARY
WARNING:
CHOKING HAZARD
Adult assembly required because of
small parts. Keep assembly parts out
of reach of children under 3 years.
This stroller is not from, sponsored or endorsed by Graco Children's Products Inc.
This stroller is not from, sponsored or endorsed by Evenflo Company, Inc.
This stroller is not from, sponsored or endorsed by Artsana S.p.A.
Copyright
Britax. All rights reserved.
Read all instructions BEFORE assembly and USE of product
Customer Experience Center
email: gcs@DeltaChildren.com
Customer Service
gcs@DeltaChildren.com
INSTRUCTION MANUAL
KEEP INSTRUCTIONS FOR FUTURE USE.
www.DeltaChildren.com
TREK JOGGING
STROLLER
Fits Graco® SnugRide® Click Connect™ Infant Car Seat (not included)
Fits Evenflo® Embrace™ Select Infant Car Seat (not included)
Fits Evenflo® Nurture™ Infant Car Seat (not included)
Fits Chicco® Keyfit 30™ Infant Car Seat (not included)
Fits Britax® B-Safe 35™ Infant Car Seat (not included)
1
DCP-IM-08312022
www.DeltaChildren.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the babyGap 14982 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Delta Children babyGap 14982

Summary of Contents for Delta Children babyGap 14982

  • Page 1 TREK JOGGING STROLLER INSTRUCTION MANUAL 14982 Fits Graco® SnugRide® Click Connect™ Infant Car Seat (not included) Fits Evenflo® Embrace™ Select Infant Car Seat (not included) Fits Evenflo® Nurture™ Infant Car Seat (not included) Fits Chicco® Keyfit 30™ Infant Car Seat (not included) STYLES AND COLORS MAY VARY Fits Britax®...

  • Page 2: Care And Maintenance

    WARNING: Please follow all of these instructions to ensure the safety of your child. Keep these instructions for future reference. WARNING: Failure to follow these instructions could result in serious injury or death. WARNING: Avoid serious injury from falling or sliding out. Always insure that the child is properly positioned by using the safety harness according to these instructions.
  • Page 3 Before returning this product to the store! Let’s see if we can assist you! • Not sure how to assemble our product? Visit our site for easy to follow instructions along with some Tricks and Tips assembly vid- eos https://www.deltachildren.com/pages/instructions •...

  • Page 4: Limited Manufacturer Warranty

    LIMITED MANUFACTURER WARRANTY This Delta product is warranted to be free from defects for a period of 90 days from the date of purchase under normal use. If a product is defective during this period, we will at our option repair or replace the defective part or product.
  • Page 5 Front Wheel Axel Lock Nuts Front Wheel Retainer Plate Stroller Parent Organizer Front Wheel Child Tray Rear Wheels Customer Service www.DeltaChildren.com gcs@DeltaChildren.com...

  • Page 6: Front Wheel

    ASSEMBLY IMPORTANT! To ensure safe operation of your stroller, please follow these instructions carefully. Please keep these instructions for future reference. IMPORTANT! Before assembly and each use, inspect this product for damaged hardware, loose joints, missing parts or sharp edges. NEVER use stroller if any parts are missing or broken. IMPORTANT! Adult assembly is required. •...
  • Page 7 ASSEMBLY Front Forks 3. Slide the retainer plate onto the front wheel axle. Be sure that the retainer plate’s bent tab is facing towards the front fork slot. The bent tab on the retainer plate must Slot be lined up with and trapped inside the front fork slot before tightening the wheel (Fig.

  • Page 8: Rear Wheel

    ASSEMBLY 5. Lift the front wheel off of the ground and sharply strike the top of the tire. (Fig. 1D) The wheel should not be loose or come off. Fig. 1D REAR WHEEL 6. To attach the rear wheels, lay stroller on its side. Align back wheel axle to the stroller's rear wheel axle housing (Fig.

  • Page 9: Parent Tray

    ASSEMBLY PARENT TRAY WARNING: The maximum weight that can be carried in the parent tray is 3 lbs (1.36 kg). NEVER place hot liquids in the parent tray as can cause serious burns and NEVER place more then 3lbs (1.36kg) in parent tray as may cause an unstable condition.

  • Page 10: Sun Visor

    ASSEMBLY SUN VISOR To open the sun visor: grab front edge of sun visor under canopy and pull down and rotate forward until fully extended. (Fig. 5) Fig. 5 PEEK-A-BOO-WINDOW To open, flip backwards to show peek-a-boo window. (Fig. 6) Fig.

  • Page 11: Adjustable Handle

    ASSEMBLY To access child seat: press left or right release buttons (Fig. 8) and rotate tray upward (Fig. 8A). Fig. 8 Fig. 8A To remove the child tray: Press the right and left release buttons and pull upward on child tray. (Fig. Fig.
  • Page 12 SAFETY BRAKES WARNING: Always lock brakes when not in use on a hill or incline as stroller may roll away or slide down the hill. WARNING: Never leave child unattended in stroller. Rear Wheel Brakes: To lock rear wheel brakes, press downward on brake lever located on each rear wheel.
  • Page 13 TO SECURE THE CHILD Make sure the brake pedals are pressed down completely. Always set both brake pedals when parking the stroller. Before Placing your Child in Stroller: Close Canopy. Press both brake pedals down until they “click” into the locked position. Waist Belt Waist Belt 5 Point Safety...
  • Page 14 ASSEMBLY SEAT BACK RECLINE POSITIONING Squeeze both sides on cord housing and pull away to recline seat, as shown in Fig. 11. To return to an upright position, hold bottom cord loops while squeezing cord housing and move cord housing upwards towards the backseat, as shown in Fig.
  • Page 15 ASSEMBLY HOW TO ATTACH GRACO AND EVENFLO ® ® CAR SEATS (Adapter Sold Separately) To use the car seat feature, lock back wheels, close the canopy as described in the canopy Car Seat Safety section (Please see Page 7, Fig. 5A). Recline seat by Grey Latches squeezing both sides of cord housing as described in seat back positioning section (Please see Page...
  • Page 16 HOW TO ATTACH CHICCO CAR SEATS ® (Adapter Sold Separately) To use Chicco Keyfit 30 Car seat first, lock the back wheels, close the canopy as described in the canopy section (Please see Page 7, Fig. 5A). Recline seat by squeezing both sides of cord housing as described in seat back positioning section (Please see Page 12, Fig.
  • Page 17 To attach Chicco car seat, line up foot end of car seat toward stroller (Fig. 13C). Slide car seat into Chicco adapters. Make sure car seat is locked in place by pulling upward on car seat. Car seat is secured when both side lock tabs have "clicked" into place and car seat does not lift up.
  • Page 18 HOW TO ATTACH BRITAX CAR SEATS (Adapter Sold Separately) To use Britax B-Safe 35 Car seat first, lock the back wheels, close the canopy as described in the canopy section (Please see Page 7, Fig. 5A). Recline seat by squeezing both sides of cord housing as described in seat back positioning section (Please see Page 12, Fig.
  • Page 19 To attach Britax B-Safe 35 car seat, line up foot end of car seat toward stroller (Fig. 14D). Glide car seat into Britax attachments. Make sure car seat is locked in place by pulling upward on car seat. Car seat is secure once both side lock tabs have "clicked"...
  • Page 20 ASSEMBLY JOGGING WITH YOUR STROLLER Push Upward To Lock Front Swivel When you are jogging with your child, use the Wheel following safety features: • LOCK THE FRONT SWIVEL WHEEL BY PUSHING UPWARD ON THE FRONT SWIVEL WHEEL LOCK PUTTING THE FRONT WHEEL INTO A STRAIGHT POSITION.

  • Page 21: To Unfold Stroller

    ASSEMBLY Release the fold buttons and move handle downward until the stroller is completely folded. The stroller is in a fully locked position when the locking fold latch is locked over the “T” post, located on the right side of the stroller. (Fig.
  • Page 22 OTHER FLAT TIRE The jogging stroller features bicycle air tires which could become flat. If you have a flat tire, use a standard bicycle hand air pump to inflate the tires. Inflate the tires 25 psi. NOTE: The stroller air tires can be taken to a bicycle shop for flat tire repair. Customer Service www.DeltaChildren.com gcs@DeltaChildren.com...
  • Page 23 Customer Service www.DeltaChildren.com gcs@DeltaChildren.com...
  • Page 24 Customer Service www.DeltaChildren.com gcs@DeltaChildren.com...
  • Page 25 Delta Children's Products Corp. 114 West 26 Street New York, NY 10001 gcs@DeltaChildren.com www.DeltaChildren.com © 2022 Delta Children's Products. All rights reserved.
