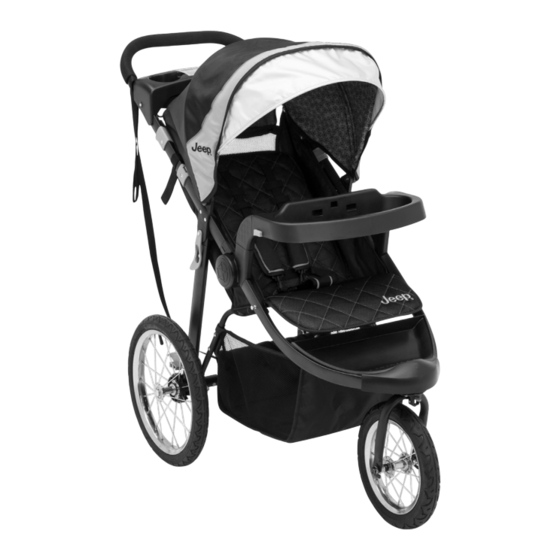

PATRIOT OPEN TRAILS
DELUXE JOGGER
INSTRUCTION MANUAL
14999
Fits Graco® SnugRide® Click Connect™ Infant Car Seat (not included)
Fits Evenflo® Embrace™ Select Infant Car Seat (not included)
Fits Evenflo® Nurture™ Infant Car Seat (not included)
STYLES AND COLORS MAY VARY
WARNING:
CHOKING HAZARD
Adult assembly required because of
small parts. Keep assembly parts out
of reach of children under 3 years.
Read all instructions BEFORE assembly and USE of product. KEEP INSTRUCTIONS FOR FUTURE USE.
This stroller is not from, sponsored or endorsed by Graco Children's Products Inc.
This stroller is not from, sponsored or endorsed by Evenflo Company, Inc.
www.DeltaChildren.com
Customer Service: (646) 435-8726
DCP-IM-20190325-V2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PATRIOT OPEN TRAILS DELUXE JOGGER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Delta Children PATRIOT OPEN TRAILS DELUXE JOGGER

  • Page 1 PATRIOT OPEN TRAILS DELUXE JOGGER INSTRUCTION MANUAL 14999 Fits Graco® SnugRide® Click Connect™ Infant Car Seat (not included) Fits Evenflo® Embrace™ Select Infant Car Seat (not included) Fits Evenflo® Nurture™ Infant Car Seat (not included) STYLES AND COLORS MAY VARY WARNING: CHOKING HAZARD Adult assembly required because of...
  • Page 2: Care And Maintenance

    WARNING: Please follow all of these instructions to ensure the safety of your child. Keep these instructions for future reference. WARNING: Failure to follow these instructions could result in serious injury or death. WARNING: Avoid serious injury from falling or sliding out. Always insure that the child is properly positioned by using the safety harness according to these instructions.
  • Page 3: Extended Warranty

    EXTENDED WARRANTY DON’T MISS YOUR CHANCE TO BE COVERED FOR ALL OF LIFES MISHAPS! With Delta’s Extended Warranty, you’re covered for mechanical failure from normal use or if your item stops working due to normal wear and tear, plus all those unexpected surprises. 2 YEARS OF PROTECTION For Additional Information: Simply visit our Website, register your product, and add the Extended Warranty...
  • Page 4 Front Wheel Axel Lock Nuts Front Wheel Retainer Plate Part # 50218 Part # 50219 Stroller Front Wheel Part # 50171 Parent Tray Child Tray Part # 50181 Part # 50174 Rear Wheels Part # 50172 Customer Service Tel. (646) 435-8726 www.DeltaChildren.com...
  • Page 5: Front Wheel

    ASSEMBLY IMPORTANT! To ensure safe operation of your stroller, please follow these instructions carefully. Please keep these instructions for future reference. IMPORTANT! Before assembly and each use, inspect this product for damaged hardware, loose joints, missing parts or sharp edges. NEVER use stroller if any parts are missing or broken. IMPORTANT! Adult assembly is required. •...
  • Page 6 ASSEMBLY Front Forks 3. Slide the retainer plate onto the front wheel axle. Be sure that the retainer plate’s bent tab is facing towards the front fork slot. The bent tab on the Slot retainer plate must be lined up with and trapped inside the front fork slot before tightening the wheel (Fig.
  • Page 7: Rear Wheel

    ASSEMBLY 5. Lift the front wheel off of the ground and sharply strike the top of the tire (Fig. 1D). The wheel should not be loose or come off. Fig. 1D REAR WHEEL 6. To attach the rear wheels, lay stroller on its side.
  • Page 8 ASSEMBLY 7. To attach parent tray align left and right side holes in tray to metal posts on the outside of handle (Fig. 3). Pop tray over metal posts for a fully locked position. When posts are completely enclosed through parent tray holes, pull upward to check it is in a fully locked position.
  • Page 9: Sun Visor

    ASSEMBLY SUN VISOR 9. To open the sun visor: grab front edge of sun visor under canopy and pull down and rotate forward until fully extended (Fig. 5). Fig. 5 CHILD TRAY 10. To attach the child tray: Rotate and align left and right side of child tray posts with the left and right side stroller tray posts.
  • Page 10 ASSEMBLY 12. To remove the child tray: Press the right and left release buttons and pull upward on child tray (Fig. 6C). Fig. 6C SAFETY BRAKES WARNING: Always lock brakes when not in use on a hill or incline as stroller may roll away or slide down the hill.
  • Page 11 TO SECURE THE CHILD Make sure the brake pedals are pressed down completely. Always set both brake pedals when parking the stroller. Before Placing your Child in Stroller: Close Canopy. Press both brake pedals down until they “click” into the locked position. Waist Belt Waist Belt 5 Point Safety...
  • Page 12 ASSEMBLY SEAT BACK RECLINE POSITIONING Squeeze both sides on cord housing and pull away to recline seat, as shown in Fig. 8. To return to an upright position, hold bottom cord loops while squeezing cord housing and move cord housing upwards towards the backseat, as shown in Fig.
  • Page 13 ASSEMBLY HOW TO ATTACH CAR SEATS To use the car seat feature, lock back wheels, close the canopy as described in the canopy section (Please see Page 7 Fig. 4A). Recline Car Seat Safety seat by squeezing both sides of cord housing as Grey Latches described in seat back positioning section (Please see Page 11 Fig.
  • Page 14: To Fold Stroller

    ASSEMBLY JOGGING WITH YOUR STROLLER Push Upward To Lock Front Swivel When you are jogging with your child, use the Wheel following safety features: • LOCK THE FRONT SWIVEL WHEEL BY PUSHING UPWARD ON THE FRONT SWIVEL WHEEL LOCK PUTTING THE Front Swivel FRONT WHEEL INTO A STRAIGHT Wheel Lock...
  • Page 15: To Unfold Stroller

    ASSEMBLY • Release the fold buttons and move handle downward until the stroller is completely folded. The stroller is in a fully locked position when the locking fold latch is locked over the “T” post, located on the right side of the stroller (Fig.
  • Page 16 OTHER FLAT TIRE The jogging stroller features bicycle air tires which could become flat. If you have a flat tire, use a standard bicycle hand air pump to inflate the tires. Inflate the tires 30 psi. NOTE: The stroller air tires can be taken to a bicycle shop for flat tire repair. Customer Service Tel.
  • Page 17 DO NOT return this item to the store. Retail stores are unable to properly assist you. Contact our Customer Service Department directly for assistance 1-800-377-3777. (646) 435-8726. www.DeltaChildren.com • gcs@deltachildren.com © 2019 Delta Children's Products, Inc. New York, NY 10001 Customer Service Tel. (646) 435-8726 www.DeltaChildren.com...
