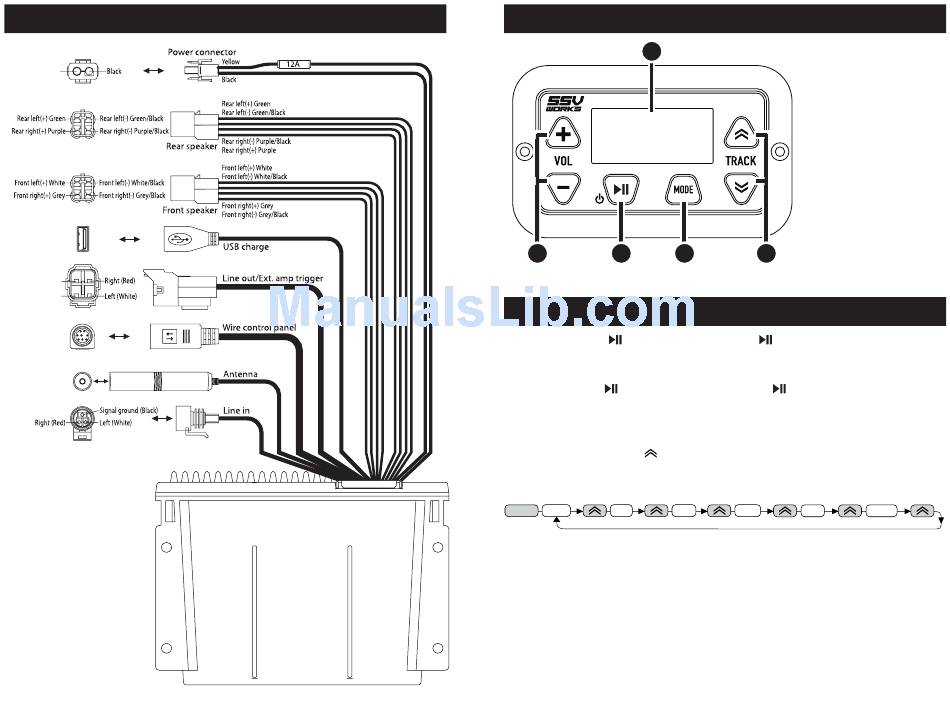

AMPLIFIER WIRING DIAGRAM

12v+ Yellow
USB 1A charge input
does not read
USB data
Signal ground
(Black)
AMP turn on
(Blue)

BUTTON LOCATIONS AND FUNCTIONS

5
2 1 3

GENERAL OPERATIONS

Power On/Off: Press to power on. Press and hold
Volume: Press the VOL(+) or (-) button to increase or decrease the volume.
Mute On/Off: Press briefly to mute the sound. Press
Mode Sources: Press the MODE button to switch between AUX, FM, AM, Bluetooth (BT MUSIC).
Mode Settings (Bass/Treble/Balance/Fader/EQ/Loudness): Press the MODE button for
2 seconds and then press the button until the function you want is shown on the display.
Press VOL(+) (-) to change the settings of the menu item displayed.
2 sec.
MODE BASS TRE BAL
Bass (BAS)/Treble (TRE): Press the VOL(+) or (-) button to adjust Bass & Treble.
Balance (BAL): Press VOL(+) or (-) to adjust balance (sound distribution between the right and
left speakers).
Fader (FAD): Press VOL(+) or (-) to adjust sound distribution between the front and rear speakers.
Equalizer (EQ): Press VOL(+) or (-) to select one of the EQ options: OFF, FLAT, CLASS, POP,
ROCK, JAZZ, METAL. The equalizer will be disabled if EQ OFF is set. The equalizer setting is shown
at the bottom of the display.
Loudness (LOUD): Press VOL(+) or (-) (LOUD ON) or to disable the function (LOUD OFF). When
the loudness function is on, LOUD is shown on the right of the display.
1. Play/Pause
Power On/Off
MRB3 Mute
2. Volume Up/Down
3. Mode
4. Track Forward/Back
Station Forward/Back
Menu Settings Up/Down
5. LCD Display
4
to power off.
again to un-mute the sound.
FAD EQ LOUD
