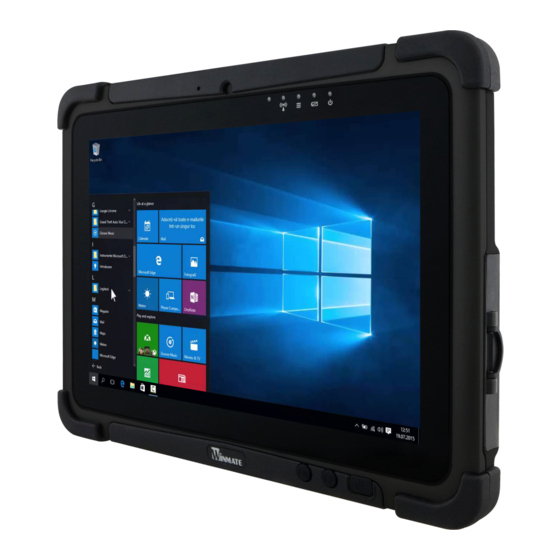

Winmate M101PR User Manual

Rugged windows tablet intel apollo lake pentium n4200 windows 10 iot enterprise
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

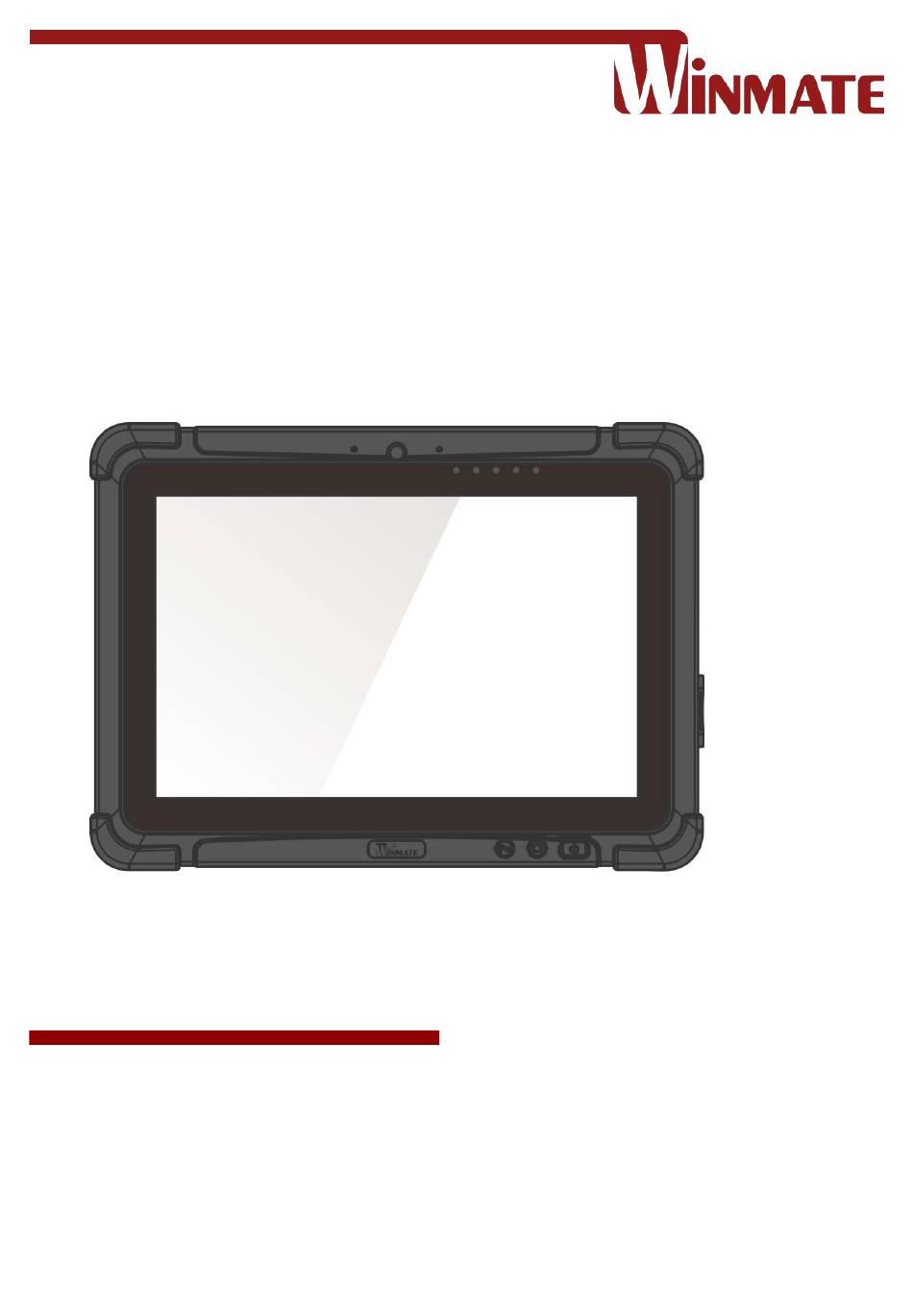

M101PR
Rugged Windows Tablet
Intel® Apollo Lake Pentium N4200
Windows 10 IoT Enterprise

User Guide

Version 1.3
Document Part No. 91521110105K
Please read these instructions carefully before using this product, and save this manual for future use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M101PR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Winmate M101PR

Summary of Contents for Winmate M101PR

  • Page 1: User Guide

    M101PR Rugged Windows Tablet Intel® Apollo Lake Pentium N4200 Windows 10 IoT Enterprise User Guide Version 1.3 Document Part No. 91521110105K Please read these instructions carefully before using this product, and save this manual for future use.

  • Page 2: Table Of Contents

    Rugged Windows Tablet M101PR Contents CHAPTER 1: READ ME FIRST ............................4 1.1 A DVISORY ONVENTIONS 1.2 S AFETY NFORMATION 1.3 H ANDLING AND AINTENANCE 1.4 D ECLARATION OF ONFORMITY CHAPTER 2: GETTING STARTED ..........................9 2.1 I NTRODUCTION 2.2 U NPACKING 2.3 D...

  • Page 3: Contents

    Contents 5.8 C ALIBRATING OUCHSCREEN 5.9 R ECALIBRATING THE OUCHSCREEN CHAPTER 6: TROUBLESHOOTING ..........................63 6.1 B ASIC ROUBLESHOOTING APPENDIX ................................65 A: P PPENDIX RODUCT PECIFICATIONS B: O PPENDIX RDER NFORMATION...

  • Page 4: Chapter 1: Read Me First

    M101P Rugged Tablet User Guide Chapter 1: Read Me First 1.1 Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings.

  • Page 5: Safety Information

    Chapter 1: Read Me First 1.2 Safety Information Precaution on Battery Pack When the Battery Pack Has Deteriorated, Précaution avec le bloc-pile Replace It with a New Battery. Continued use of a damaged battery pack may result in heat generation, ignition or battery rupture. [FR] Lorsque la pile est détériorée, la Do Not Disassemble, Modify, or Insert Sharp remplacer par une nouvelle pile.
  • Page 6 Rugged Windows Tablet M101PR General Product Safety  This product should not be used near water Sécurité générale des such as bathtubs, sinks, swimming pools, wet basement, etc. produits [FR] Ce produit ne dois pas être utilisé près de l'eau comme les baignoires, les éviers, les ...

  • Page 7: Handling And Maintenance

    Chapter 1: Read Me First 1.3 Handling and Maintenance Gently wipe the display with a soft, lint-free cloth. Do not use alcohol or detergent on the product. General Guideline [FR] Essuyer délicatement l'écran avec un Guide Général chiffon doux non pelucheux. Ne pas utiliser d'alcool ou un détergent sur le produit.

  • Page 8: Declaration Of Conformity (Doc)

    Rugged Windows Tablet M101PR 1.4 Declaration of Conformity (DoC) FCC Statement This device complies with part 15 FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference.  This device must accept any interference received including ...

  • Page 9: Chapter 2: Getting Started

    The tablet features a brilliant, in-plane switching with direct optical bonding, 4-wire resistive touchscreen, which is outdoor viewable and offers 1920 x 1200 pixel resolution. Weighing at just 2.7 pounds (approx. 1200 grams) the M101PR delivers lightweight mobility in a rugged tablet. Highlights •...

  • Page 10: Unpacking

    Rugged Windows Tablet M101PR 2.2 Unpacking Check and identify the standard supplied accessories. Check and identify the supplied accessories:   Tablet Computer Standard Battery Part No. 98K000A0003T   Power Adapter Power Cord and Plugs Part No. 922D065W19V1 Part No. 922D065W19V1 ...

  • Page 11: Description Of Parts

    Chapter 2: Getting Started 2.3 Description of Parts Dimensions: 271.9 x 198.3 x 19.5 mm (10.7 x 7.76 x 0.77 inches) Front: Left: Right: Item Description Item Description Display and act as one of Micro HDMI HDMI output to external 10.1”...
  • Page 12 Rugged Windows Tablet M101PR Rear: Top: Bottom: Item Description Item Description Optional RFID RFID Reader for reading Optional Barcode Scanner for Reader RFID tags. Barcode reading of 1D/2D Optional Provides connectivity to barcode. Extension custom modules for Kensington Provide lock access for...

  • Page 13: Hotkey For Specific Functions

    Chapter 2: Getting Started 2.4 Hotkey for Specific Functions For the physical buttons on the tablet computer, in addition to its dedicated functions detailed in the previous section, it can also be used to emulate commonly used keyboard key strokes. Under different scenario, a single physical button or a combination of physical buttons provide different keyboard key strokes, which are specified below: In POST (before Windows boots up):...

  • Page 14: Installing Sim Card (For 3G/Lte Equipped Devices)

    Rugged Windows Tablet M101PR 2.5.1 Installing SIM Card (For 3G/LTE Equipped Devices) The Tablet Computer supports 3G/LTE data connection and fits a Micro-SIM card. To install the SIM card: Tools Needed: Service Windows 3G/ LTE Module Screw: M2x5, 4 pc Screw: M2x3.5, 1 pc...

  • Page 15: Installing A Micro Sd Card

    Chapter 2: Getting Started 2.5.2 Installing a Micro SD Card Your tablet supports additional storage with an optional microSDXC card slot. To install Micro SD Card: 1. Open I/O protective cover by pulling out the latch. 2. Insert microSD card into slot with contacts facing down. 3.

  • Page 16: Charging Your Tablet

    Rugged Windows Tablet M101PR 2.5.4 Charging Your Tablet The Tablet operates either on external AC power or internal battery power. It is recommended to use AC power when you start up the Tablet for the first time. Caution : Use only the AC adapter included with your Tablet Computer. Using other AC adapters may damage the Tablet Computer and the Battery.

  • Page 17: Chapter 3: Setting Up Windows For The First Time

    This chapter details how to setup the Windows that may be installed on the tablet for the first time. 3.1 Introduction The M101PR Tablet Computer operates on Windows 10 IoT Enterprise operating system. Caution : Make sure the battery is full charged before starting the Tablet Computer for the first time with internal battery power.
  • Page 18 Rugged Windows Tablet M101PR 3. On the Here's the legal stuff screen, read through the disclosures, then tap Accept. 4. Windows will then try to connect to network. Tap Skip this step to continue without a wireless connection as you can then set up the network later.
  • Page 19 Chapter 3: Setting Up Windows for the First Time 6. To create a local account, type your User name, password, and Password hint in the fields provided, then tap Next. 7. The initial setup screens are complete, and the desktop is displayed. 8.

  • Page 20: Chapter 4: Operating The Device

    RFID, WWAN, WLAN, GPS features. Note: Please download the SDK from Winmate Download Center here. >> M101P >> Development Kit or check the Driver CD which is shipped with the tablet. Please notice that HF RFID reader, Barcode reader, and UHF RFID reader are optional module, please make sure user have ordered the module before using the SDK.

  • Page 21: Shortcuts

    Chapter 4: Operating the Device Icon Description Allows users to configure short cut to quickly access programs with a few tabs. Shortcuts Allows users take a picture or record a video. User can also adjust setting related to camera in this menu option. Camera Enables/disables tablet computer’s hardware functions.

  • Page 22: Using Camera

    Rugged Windows Tablet M101PR 4.3 Using Camera This Hottab menu option allows users take a picture or record a video. Before use, make sure the camera is powered on under Devices ON/OFF menu with the following scenarios. To open camera interface: 1.

  • Page 23: Built-In Devices On/Off

    Chapter 4: Operating the Device 4.4 Built-in Devices On/Off This section describes how to get a quick access to set-up built-in devices, including turning on/off RF modules, setting up barcode reader, RFID reader, and expansion modules. 4.4.1 Using the Wireless LAN (Wi-Fi) To use the wireless LAN (Wi-Fi) feature to connect to the network, perform the following procedure: 1.

  • Page 24: Using The Wireless Wan (3G/Lte)

    Rugged Windows Tablet M101PR 4.4.2 Using the Wireless WAN (3G/LTE) The Tablet Computer supports data connection with 3G/LTE modules and fits Micro-SIM card. (Note: 3G/LTE feature is optional). Install SIM-Card as described in the Ch.2 2.5.1 Installing SIM Card. To connect to the network using wireless WAN: 1.

  • Page 25: Turning On/Off Led Indicators

    4.4.6 Using the Barcode Reader The 2D/1D Barcode Reader is optional for M101PR Tablet PC and is not re-workable by the end user. To use this feature, please make sure the tablet PC is built-in barcode reader before use, or contact our sales contact window for more details.
  • Page 26 Rugged Windows Tablet M101PR *To recover the connection, please tap on the button again to re-connect with Barcode Reader. 4.4.6.1 Device Configuring and Setting 1.Click on Windows and search for EZConfig-Scanning from the Start menu. 2.Click on EZConfig-Scanning v4_IE and allow the blocked content if browser is blocking the content.
  • Page 27 Chapter 4: Operating the Device 4.4.6.2 Scanning mode Settings 1. Click on Device Settings under the Input/Output settings section. 2. Select the desire scanning mode from the drop-down menu shown as below. 3. After selecting a desire scanning mode, click on the “Save to Device” on the side bar.
  • Page 28 Rugged Windows Tablet M101PR Scanning Description Mode Manual When in manual trigger mode, the scanner scans until a bar code is read, or until the Trigger trigger is released. Two modes are available, Normal and Enhanced. Normal mode offers good scan speed and the longest working ranges (depth of field). Enhanced mode will give you the highest possible scan speed but slightly less range than Normal mode.
  • Page 29 Chapter 4: Operating the Device 4.4.6.2 Setting the 1D/2D Barcode Scanner Symbologies The barcode scanner is shipped with default settings shown below. If the default setting suits the usage requirement, setting symbologies is not necessary. Symbologies Default Settings: Symbologies Default setting UPC-A Enable UPC-E...
  • Page 30 Rugged Windows Tablet M101PR ※Warning※ 1. The reset to default button will change all setting to default. 2. N660X could disconnect with system after clicking the reset to default button. If the Disconnection happened please scan barcodes below in the following steps.
  • Page 31 Chapter 4: Operating the Device 2.Click on Editor button under the Prefix or Suffix section and create Prefix/Suffix value by typing in the block or select desire characters in the Control chars, Printable chars, and Extended ASCII. as shown below:...
  • Page 32 Rugged Windows Tablet M101PR 3. When you finish creating Prefix/Suffix, please click on “Save to Device” on the side bar. 4. For checking the functionality of Prefix/Suffix, please chick on “Scan Data Window” icon on the top. Then scan a barcode to verify if the Prefix/Suffix appear correctly.

  • Page 33: Using The Hf Rfid Reader

    4.4.7 Using the HF RFID Reader The HF RFID Reader is optional for M101PR Tablet PC and is not re-workable by the end user. To use this feature, please make sure the tablet PC is built-in HF RFID reader before use, or contact our sales contact window for more details.
  • Page 34 Rugged Windows Tablet M101PR 4.4.7.1 RFID Trigger Setting Item Description Auto Scan The default setting for RFID trigger is Auto Scan. Under this setting, the RFID Reader will always be ready to scan tags. When the RFID tag is detected from RFID antenna, the data will be read automatically.
  • Page 35 Chapter 4: Operating the Device 4.4.7.2 Settings Item Description Sound The Sound check box defines whether a beep sound will come with the data scanning. Output to This setting defines the output type of the scanned data. Two options are available: Keyboard Wedge Under this setting, the data scanned is sent like keyboard data.
  • Page 36 Rugged Windows Tablet M101PR Item Description Prefix User can type in this field to define the characters BEFORE the data scanned. Suffix User can type in this field to define the characters AFTER the data scanned. The check box user can defines to append an “Enter” which is Append Enter followed by the characters.
  • Page 37 Chapter 4: Operating the Device Note: User can download the SDK from Winmate Download center website >> M101P >> Development Kit or check the Driver CD which is shipped with the tablet. 4.4.7.3 RFID Output Setting Item Description The default setting for built-in HF RFID Reader is to Read UID. For some applications,...

  • Page 38: Turn On/Off The Gps External Antenna

    4.4.8 Turn on/off the GPS External Antenna The vehicle dock of M101PR Tablet PC supports external GPS antenna through standard SMA connector. To work with external GPS antenna, please make sure the tablet PC is well installed to vehicle dock, and the vehicle dock has connected with external GPS antenna.

  • Page 39: Using The Expansion Module

    4.4.10 Using the Expansion Module The Expansion Port is optional for M101PR Tablet PC and is not re-workable by the end user. To work with Add-on module, please make sure the tablet PC is built-in expansion port before use, or contact our sales contact window for more details.

  • Page 40: Uhf Rfid Reader Module

    Rugged Windows Tablet M101PR 4.4.11 UHF RFID Reader Module The UHF RFID Reader is optional for M101PR Tablet PC. Note: Download the SDK from Winmate Download center. >> M101P >> Development Kit or check the Driver CD which is shipped with the tablet.
  • Page 41 Chapter 4: Operating the Device Trigger Setting Item Description Auto The default setting for UHF RFID trigger is Auto Scan. Under this setting, the UHF Scan RFID Reader will always be ready to scan tags. When the UHF RFID tag is detected, the data will be read automatically. User can define the UHF RFID scanning frequency from the drop-down menu shown as below.
  • Page 42 Rugged Windows Tablet M101PR Settings Item Description Sound The Sound check box defines whether a beep sound will come with the data scanning. Region Basing on different regional regulations about UHF RFID frequencies, user can switch frequency to NA (North America, 902-928 MHz) or EU3 (Europe, 865-868 MHz)from the drop-down menu shown as below.
  • Page 43 Chapter 4: Operating the Device Keyboard Wedge Under this setting, the data scanned is sent like keyboard data. The scanned data can be output directly to the demo area below this window, or user can also open other utility, such as Office Word or Notepad files, for data input. Important: Please notice that the input method should support the scanned character.
  • Page 44 Rugged Windows Tablet M101PR Note:  For more information, please download “Universal Reader Assistant” UHF module configuration application from Thing Magic website. Item Description The EPC check box defines whether to show the complete information of EPC (Electronic Product Code), including The identifiers of the object(s) or other entities that are the subject of the event.

  • Page 45: Settings

    This section provides user battery Information. Main Battery: The main battery icon displays the battery level in percentages (0 to 100%). Backup Battery: (For M101PR) The backup battery used for battery hot swapping displays its state in text with the following meanings. Status...

  • Page 46: Using The Physical Function Keys (Hotkeys)

    Rugged Windows Tablet M101PR 4.5.3 Using the Physical Function Keys (Hotkeys) The function key mapping menu option allows user to change the physical function buttons, Fn1 and Fn2. Users can change what application will be launched with short press or long press of keys.

  • Page 47: Chapter 5: Frequently Used Settings

    Chapter 5: Frequently Used Settings Chapter 5: Frequently Used Settings 5.1 Screen Resolution Scaling and Setting The M101’s 1920 x 1200 high resolution display is perfect for viewing image, video, or other applications, however, Windows user interface (icons, buttons, and other user interface elements) may be too small to read and operate at the default Windows settings.

  • Page 48: Changing Screen Resolution

    Rugged Windows Tablet M101PR 1. A “Display” Window will show up. Click on the dropdown option under the “Scale and layout” section and change the scaling option to “150% (Recommended)” or any other desired display scaling. 5.1.2 Changing Screen Resolution Alternatively, instead of changing the display scaling setting, user may choose to change the overall resolution setting to make screen elements bigger.

  • Page 49: Replacing Battery

    5. The user may now use the device with the new resolution setting. 5.2 Replacing Battery The M101PR Tablet supports hot-swap, meaning the tablet doesn’t need to be powered off to replace the main battery. To support hotswap, there is a backup battery inside the tablet that is charged together with the main battery.

  • Page 50: Using Recovery Wizard To Restore Computer

    5.3 Using Recovery Wizard to Restore Computer M101PR tablet computer has a dedicate recovery partition stored on the hard drive of the tablet to enable quick one-key recovery process. This partition occupies about 11GB of the storage space, and comes built- in to each M101PR tablet computer.

  • Page 51: Docking Connector Pin Definition

    6. After recovery is completed, please press any key to continue, and the tablet computer will Shut down automatically. 5.4 Docking Connector Pin Definition M101PR tablet computer supports one 19-pin docking connector at the bottom side. The pin definition is listed as the following table. 19 Pin Docking Connector Pin No.

  • Page 52: Expansion Port Pin Definition

    DETECT+ Power DETECT- Power 5.5 Expansion Port Pin Definition M101PR tablet computer supports one optional 19-pin expansion port at the rear side. The pin definition is listed as the following table 19 Pin Expansion Port Pin No. Description Pin No.
  • Page 53 Chapter 5: Frequently Used Settings Go to "Device Manager", right click on the COM number need to be changed, and tap on "Properties" to open the setting page. Tap on "Port Setting" tab and click on "Advanced" button. Tap on the dropdown list and choose the correct COM Port Number (refer to the COM Port Definition Table), and click "OK".

  • Page 54: Pairing With A Wireless Bluetooth Barcode Scanner

    Rugged Windows Tablet M101PR Double check "Device Manager" to make sure the COM Port number has been re-defined successfully, and then restart the system. 5.7 Pairing with a Wireless Bluetooth Barcode Scanner The computer is affixed with a Bluetooth MAC (Media Access Control) address barcode label that enables wireless Bluetooth Barcode Scanner to quickly establish Bluetooth connection with the computer.
  • Page 55 Chapter 5: Frequently Used Settings 3. Once the Bluetooth & other devices Menu appears, click “More Bluetooth options” under Related settings section as shown below. Click OK to continue. 4. go to “Options” tab, and make sure that in the Discovery section, the computer is set to “Allow Bluetooth devices to find this computer”, as shown below: Click OK to continue.
  • Page 56 Rugged Windows Tablet M101PR 1. You are in “Add COM Port” window. Choose “Incoming (device initiates the connection)”, and click “OK”. 2. The computer will automatically assign COM Port to the Bluetooth connection. In the screenshot below, COM4 is allocated.

  • Page 57: Set Up The Barcode Scanner For Bluetooth Pairing

    Chapter 5: Frequently Used Settings Click OK to continue. 3. Next, the user has to configure the application that is used to accept the scanned data from the wireless Bluetooth Barcode Scanner. The application has to be configured to accept the same COM Port that has been assigned for the Bluetooth Serial Port Profile in the previous step.
  • Page 58 Rugged Windows Tablet M101PR 4. Click Add Bluetooth Device. 5. In Add a Bluetooth Device window, click Next to connect the Barcode Scanner to the Computer. In order to ensure that Bluetooth Device is successfully pared to the Computer, follow the steps below: 1.

  • Page 59: Calibrating Touchscreen

    The touchscreen may also need to be re-calibrated due to changes from long term use over time and from environmental conditions. The update procedure requires the user to boot up the M101PR rugged tablet and log in to Windows to start the touch screen calibration.
  • Page 60 Rugged Windows Tablet M101PR 2. In the Control Panel, click on Tablet PC Settings, then click on Calibrate in the Tablet PC Settings Window. 3. The Windows Digitizer Calibration Tool will appear. Crosshairs will appear on the screen, starting from the top-left corner. Tap the crosshairs each time that they appear on the screen. A...

  • Page 61: Recalibrating The Touchscreen

    Chapter 5: Frequently Used Settings 4. Once complete, click Yes to save the calibration data in the pop-up window. The touchscreen calibration is now complete and the M101PR rugged tablet PC is now ready for use. 5.9 Recalibrating the Touchscreen Recalibrate the M101PR rugged tablet’s touchscreen may be required if any variances in touch input...
  • Page 62 Rugged Windows Tablet M101PR 2. The Windows Digitizer Calibration Tool will appear. Crosshairs will appear on the screen, starting from the top-left corner. Tap the crosshairs each time that they appear on the screen. A total of 4 crosshairs will appear on the screen.

  • Page 63: Chapter 6: Troubleshooting

    Chapter 6: Troubleshooting Chapter 6: Troubleshooting 6.1 Basic Troubleshooting Problem Solution  The removable battery is not Make sure the AC adapter is properly connected, and that charging. the removable battery is properly inserted.  Nothing appears on the screen. The tablet computer may be in sleep mode.
  • Page 64 Rugged Windows Tablet M101PR Problem Solution  I cannot project the tablet Make sure the VGA driver is installed.  computer display to another Make sure the output setting selected is correct. monitor.  Barcode scanner does not emit Make sure the Barcode scanner device is enabled in Hottab laser beam and does not seem to utility.

  • Page 65: Appendix

    Appendix Appendix Appendix A: Product Specifications M101PR Model Name Size 10.1-inch IPS display with LED Backlight Resolution 1920 x 1200 WUXGA 800 nits Brightness With direct optical bonding for sunlight readability Display Specification Contrast Ratio 800:1 Viewing Angle 85/85/85/85 Touch 4 wire resistive Intel®...
  • Page 66 Rugged Windows Tablet M101PR Model Name M101PR LED Indicators Power, Battery, HDD, RF Status Indicators Sensors Light Sensor , G-Sensor, Gyroscope, E-Compass Web Camera 2MP webcam Cameras Rear Camera 8MP rear camera with autofocus and LED light Optional 1D/2D Barcode Reader...

  • Page 67: Appendix B: Order Information

    Appendix Appendix B: Order Information M101P Series Tablet PC available for order in the following configurations: Order Information 1D/2D Barcode Reader HF RFID M101PR M101PR-HF Optional Optional Default M101PR-BH Optional Optional Default M101PR-H2 Optional Optional Default Default 4G/LTE for M101PR-LA...
  • Page 68 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © Winmate Inc. All rights reserved.
