Ⅵ OPERATION AND CONTROL

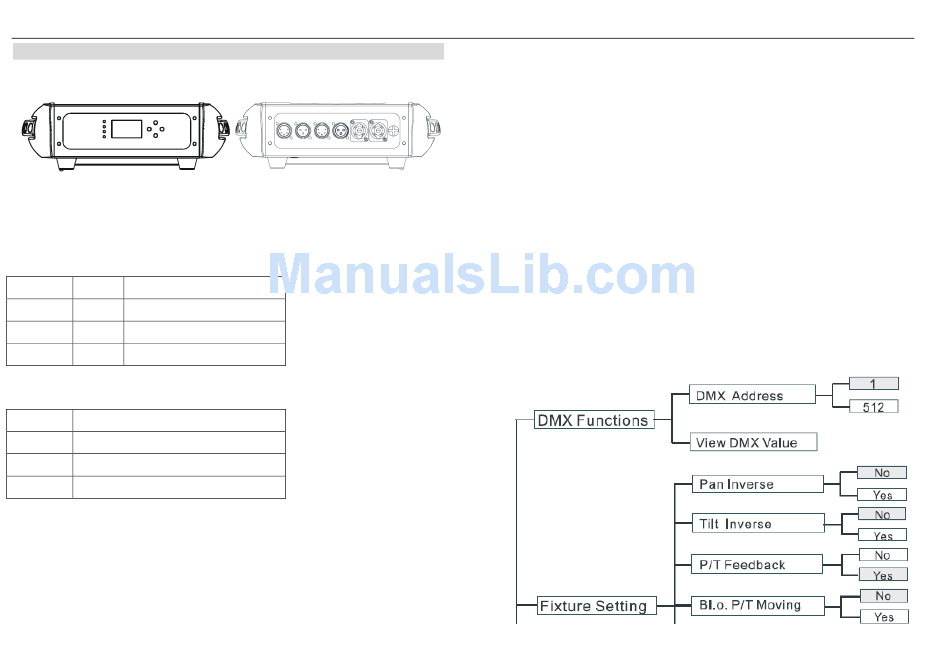

1. Control panel
Display:
To show the various menus and the selected functions
LED:
POWER ON Power on
NULL No function
NULL No function
DMX ON DMX input present
Button:
MENU To select the programming functions
DOWN To go backward in the selected functions
UP To go forward in the selected functions
ENTER To confirm the selected functions
DMX input:
For DMX512 link, use 3/5-pin XLR cable to link the unit together.
DMX output:
For DMX512 link, use 3/5-pin XLR cable to link the unit together.
Mains input:
08
Swift1915Z Aura LED Moving Head Beam Wash Light User Manual
Connect to power supply.
Mains output:
Connect to supply power to the next unit.
Fuse (T 6.3A):
Protect the unit from damage of the over-current.
2. Main Functions
To select any of the given functions, press the MENU button up to when the required one is
showing on the display. Select the function by ENTER button and the display will blink. Use
DOWN and UP button to change the mode. Once the required mode has been selected,
press the ENTER button to setup, to go back to the functions without any change press the
MENU button again. Hold and press the MENU button about one second or wait for one
minute to exit the menu mode.
The main functions are showing below:
