Swift1925Z Aura LED Moving Head Beam Wash Light User Manual
Swift1925Z Aura LED Moving Head Beam Wash Light User Manual
Swift Aura LED Moving Head Zoom Light
Swift 1925Z
CE RoHS
User Manual
Please read this user manual before using this product！
Keep it for further reference!
http://www.vangaalight.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VanGaa Lighting Swift Aura 1925Z
Summary of Contents for VanGaa Lighting Swift Aura 1925Z

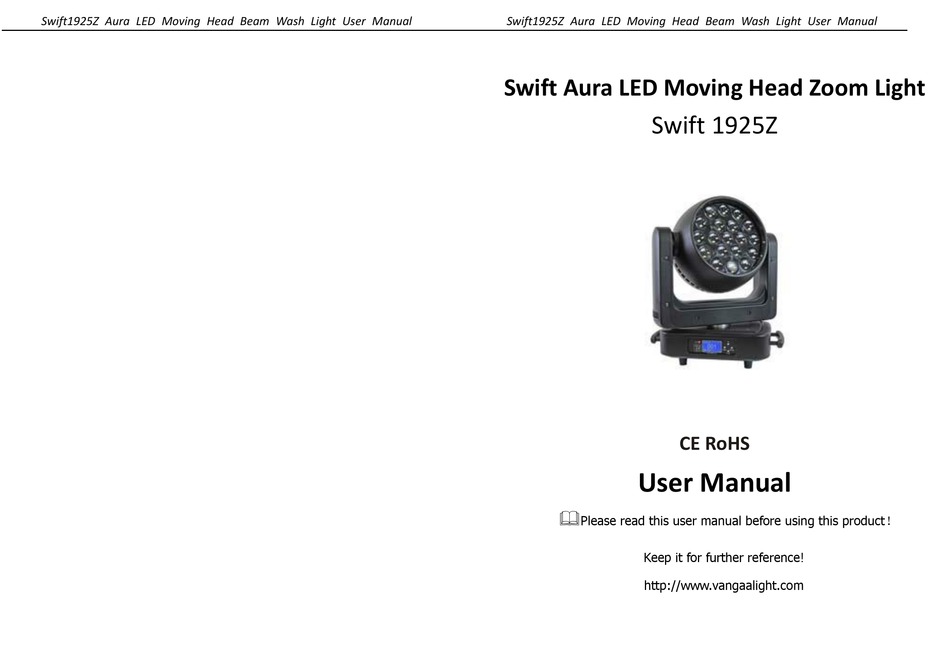

- Page 1 Swift1925Z Aura LED Moving Head Beam Wash Light User Manual Swift1925Z Aura LED Moving Head Beam Wash Light User Manual Swift Aura LED Moving Head Zoom Light Swift 1925Z CE RoHS User Manual Please read this user manual before using this product！ Keep it for further reference! http://www.vangaalight.com...
-
Page 2: Table Of Contents
Swift1925Z Aura LED Moving Head Beam Wash Light User Manual Swift1925Z Aura LED Moving Head Beam Wash Light User Manual Ⅰ GENERAL Thank you for using our product! Please read this manual carefully and completely. For INDEX technical reference in future, please keep this user manual well. This user manual contains all installation and operation information of this Aura LED Moving Head Wash Light, it’s very Ⅰ... -
Page 3: Ⅱ Safety Information
Swift1925Z Aura LED Moving Head Beam Wash Light User Manual Swift1925Z Aura LED Moving Head Beam Wash Light User Manual Ⅱ SAFETY INFORMATION To determine the power requirements for a particular fixture, see the label affixed ※Important to the back plate of the fixture or refer to the fixtures specifications chart. A fixture listed Every person involved with the installation, operation and maintenance of this device has to current rating is its average current draw under normal conditions. -
Page 4: Ⅳ Features And Specification
Swift1925Z Aura LED Moving Head Beam Wash Light User Manual Swift1925Z Aura LED Moving Head Beam Wash Light User Manual Ⅴ DIMENSION fixture. Make sure to put the safety chain and check whether the screws are screwed properly when installing the fixture. Make sure the lens are in good condition. - Page 5 Swift1925Z Aura LED Moving Head Beam Wash Light User Manual Swift1925Z Aura LED Moving Head Beam Wash Light User Manual Omega holder. Pull the safety-rope through the holes on the bottom of the base and over the trussing system or a safe fixation spot. Insert the end in the cabinet and tighten the safety screw. Please refer to the picture below: Address 31 Address16...
-
Page 6: Ⅶ Operation And Control
Swift1925Z Aura LED Moving Head Beam Wash Light User Manual Swift1925Z Aura LED Moving Head Beam Wash Light User Manual Ⅶ OPERATION AND CONTROL Fuse (T 6.3A): 1. Control panel Protect the unit from damage of the over-current. Display: 2. Main Functions To select any of the given functions, press the MENU button up to when the required one is showing on the display. - Page 7 Swift1925Z Aura LED Moving Head Beam Wash Light User Manual Swift1925Z Aura LED Moving Head Beam Wash Light User Manual on the display, use UP and DOWN button to adjust the address from 1 to 512, press ENTER button to store. Press MENU button back to the last menu or let the unit idle one minute to exit menu mode.
- Page 8 Swift1925Z Aura LED Moving Head Beam Wash Light User Manual Swift1925Z Aura LED Moving Head Beam Wash Light User Manual P/T Feedback — Pan/Tilt Feedback Select Dimmer Curve, press ENTER button to confirm, present mode will blink on the Select P/T Feedback, press ENTER button to confirm, present mode will blink on the display, use UP and DOWN button to select Linear , Square Law, Inverse Squ.
- Page 9 Swift1925Z Aura LED Moving Head Beam Wash Light User Manual Swift1925Z Aura LED Moving Head Beam Wash Light User Manual the unit idle one minute to exit menu mode. Select Language, press ENTER button to confirm, present mode will blink on the display, use UP and DOWN button to select English or Chinese.
- Page 10 Swift1925Z Aura LED Moving Head Beam Wash Light User Manual Swift1925Z Aura LED Moving Head Beam Wash Light User Manual Fixture use time ENTER button to store. Press MENU button to exit. Select Fixture Use Time, press ENTER button to confirm, fixture use time will show on the display, press MENU button to exit.
-
Page 11: Ⅷ Address Setting And Dmx Channel Operation
Swift1925Z Aura LED Moving Head Beam Wash Light User Manual Swift1925Z Aura LED Moving Head Beam Wash Light User Manual 3. Home Position Adjust 2. The last units DMX cable has to be terminated with a 120 ohm 1/4W resistor between pin 2(DMX‐) and pin 3(DMX+) of a 3‐pin XLR‐plug and plug it in the DMX‐output of the last unit. - Page 12 Swift1925Z Aura LED Moving Head Beam Wash Light User Manual Swift1925Z Aura LED Moving Head Beam Wash Light User Manual the address from 0 to 512, press ENTER button to store. Press MENU button back to the 205←→209 Shutter open last menu or let the unit idle 7 seconds to exit menu mode.
- Page 13 Swift1925Z Aura LED Moving Head Beam Wash Light User Manual Swift1925Z Aura LED Moving Head Beam Wash Light User Manual 070←→074 Fan mode REGULATED 015←→019 LEE 157-Pink No function 075←→089 020←→024 LEE 332-Special rose pink 090←→094 RGB color mode: fully calibrated color output, same gamut for 025←→029 LEE 328-Follies pink all Mac Aura XBs...
- Page 14 Swift1925Z Aura LED Moving Head Beam Wash Light User Manual Swift1925Z Aura LED Moving Head Beam Wash Light User Manual 150←→154 LEE 105-Orange 020←→255 CTC 10000K-2500K 155←→159 LEE 021-Gold amber 27 DMX Channels mode 160←→164 LEE 778-Millennium gold DMX CH DMX Value Function 165←→169...
- Page 15 Swift1925Z Aura LED Moving Head Beam Wash Light User Manual Swift1925Z Aura LED Moving Head Beam Wash Light User Manual 085←→089 Shutter open 040←→047 Color5 090←→104 Strobe 3: closing pulse (fast-slow) 048←→054 Color6 105←→109 Shutter open 055←→061 Color7 110←→124 Strobe 4: random strobe (fast-slow) 062←→069 Color8 125←→129...
-
Page 16: Ⅸ Trouble Shooting
Swift1925Z Aura LED Moving Head Beam Wash Light User Manual Swift1925Z Aura LED Moving Head Beam Wash Light User Manual 241←→247 Color32 173‐187 Macro12 248←→255 Color33 188‐202 Macro13 CH15 000←→255 RING 2 RED (0%-100%) 203‐217 Macro14 218‐232 Macro15 CH16 000←→255 RING 2 GREEN (0%-100%) 233‐247 Macro16... -
Page 17: Ⅹ Maintenance And Cleaning
Swift1925Z Aura LED Moving Head Beam Wash Light User Manual Swift1925Z Aura LED Moving Head Beam Wash Light User Manual In order to make the lights in good condition and extend the life time, we suggest a regular C. One of the channels is not working well cleaning to the lights.
