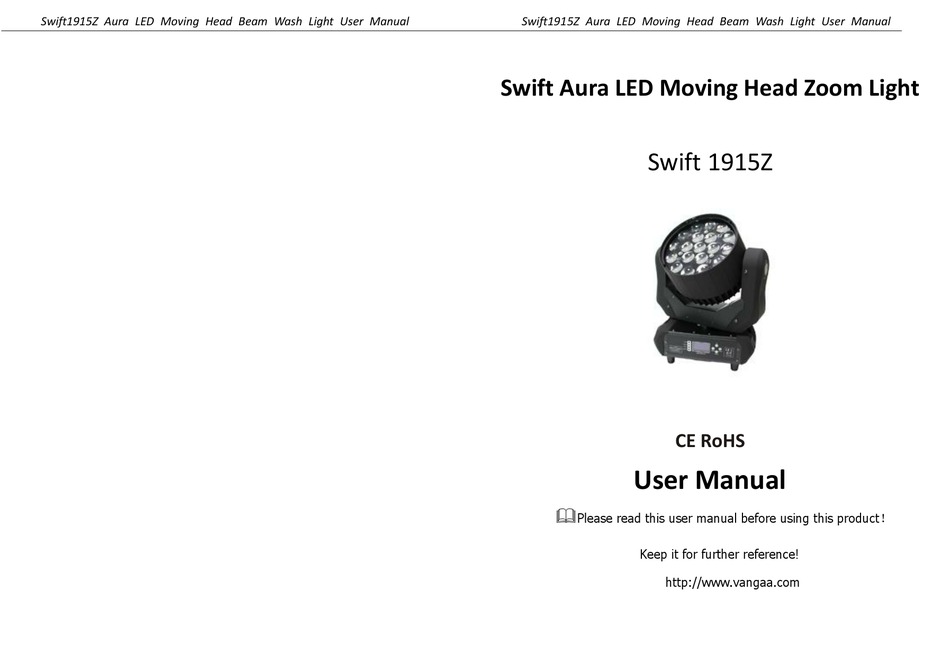

- Page 1 Swift1915Z Aura LED Moving Head Beam Wash Light User Manual Swift1915Z Aura LED Moving Head Beam Wash Light User Manual Swift Aura LED Moving Head Zoom Light Swift 1915Z CE RoHS User Manual Please read this user manual before using this product！...
-
Page 2: Table Of Contents
In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Ⅷ TROUBLE SHOOTING ................22 Swift 1915Z---------1pc Signal Cable---------1pc Ⅸ MAINTENANCE AND CLEANING ............23... -
Page 3: Ⅱ Safety Information
Swift1915Z Aura LED Moving Head Beam Wash Light User Manual Swift1915Z Aura LED Moving Head Beam Wash Light User Manual Ⅱ SAFETY INFORMATION To determine the power requirements for a particular fixture, see the label affixed ※Important to the back plate of the fixture or refer to the fixtures specifications chart. A fixture listed Every person involved with the installation, operation and maintenance of this device has to current rating is its average current draw under normal conditions. -
Page 4: Ⅳ Features And Specification
Swift1915Z Aura LED Moving Head Beam Wash Light User Manual Swift1915Z Aura LED Moving Head Beam Wash Light User Manual Ⅴ DIMENSION fixture. Make sure to put the safety chain and check whether the screws are screwed properly when installing the fixture. Make sure the lens are in good condition. - Page 5 Swift1915Z Aura LED Moving Head Beam Wash Light User Manual Swift1915Z Aura LED Moving Head Beam Wash Light User Manual Address 31 Address16 Address 1 DMX-512 C DMX T ONNECTION WITH ERMINATOR 2. DMX connection For installations where the DMX cable has to run a long distance or is in an electrically noisy Connect the provided XLR cable to the female 3-pin XLR output of your controller and the environment, such as in a discotheque, it is recommended to use a DMX terminator.
-
Page 6: Ⅵ Operation And Control
Swift1915Z Aura LED Moving Head Beam Wash Light User Manual Swift1915Z Aura LED Moving Head Beam Wash Light User Manual Ⅵ OPERATION AND CONTROL Connect to power supply. 1. Control panel Mains output: Connect to supply power to the next unit. Fuse (T 6.3A): Protect the unit from damage of the over-current. - Page 7 Swift1915Z Aura LED Moving Head Beam Wash Light User Manual Swift1915Z Aura LED Moving Head Beam Wash Light User Manual DMX Functions Enter MENU mode, select DMX Functions, press ENTER button to confirm, use UP and DOWN button to select DMX Address, DMX Channel Mode or View DMX Value. DMX Address Select DMX Address, press ENTER button to confirm, the present address will blink on the display, use UP and DOWN button to adjust the address from 1 to 512, press...
- Page 8 Swift1915Z Aura LED Moving Head Beam Wash Light User Manual Swift1915Z Aura LED Moving Head Beam Wash Light User Manual Tilt Inverse Select Cooling Mode, press ENTER button to confirm, present mode will blink on the Select Tilt Inverse, press ENTER button to confirm, present mode will blink on the display, use UP and DOWN button to select Auto (Normal) or Low (Low speed), Once display, use UP and DOWN button to select No (normal) or Yes (tilt inverse), press selected, press ENTER button to store.
- Page 9 Swift1915Z Aura LED Moving Head Beam Wash Light User Manual Swift1915Z Aura LED Moving Head Beam Wash Light User Manual Backlight Intensity ,Temperature unit, Display Warning or Language. Select Display Warning, press ENTER button to confirm, present mode will blink on the display, use UP and DOWN button to select No (Normal) or Yes (display will show Display Inverse the error warning when the unit went wrong).
- Page 10 Swift1915Z Aura LED Moving Head Beam Wash Light User Manual Swift1915Z Aura LED Moving Head Beam Wash Light User Manual (All channels value will become 0 after exiting Manual Test menu) press ENTER button to store. Press MENU button back to the last menu or let the unit idle one minute to exit menu mode.
-
Page 11: Ⅶ Address Setting And Dmx Channel Operation
Swift1915Z Aura LED Moving Head Beam Wash Light User Manual Swift1915Z Aura LED Moving Head Beam Wash Light User Manual the display, press ENTER button to confirm, use UP and DOWN button to select Exit or confirm, use UP and DOWN button to select DMX Address, press ENTER button to Reset time, press MENU button to exit. - Page 12 Swift1915Z Aura LED Moving Head Beam Wash Light User Manual Swift1915Z Aura LED Moving Head Beam Wash Light User Manual 090←→104 Closing pulse 035←→039 LEE 194-Surprise pink 105←→109 Open 040←→044 LEE 181-Congo blue 110←→124 Random strobe 045←→049 LEE 071-Tokyo blue 125←→129 Open 050←→054...
-
Page 13: Ⅷ Trouble Shooting
Swift1915Z Aura LED Moving Head Beam Wash Light User Manual Swift1915Z Aura LED Moving Head Beam Wash Light User Manual of the unit or the previous one. 170←→174 LEE 164-Flame red 4. Try to use another DMX controller. 175←→179 Open 5. - Page 14 Swift1915Z Aura LED Moving Head Beam Wash Light User Manual Swift1915Z Aura LED Moving Head Beam Wash Light User Manual skilled installer and any safety problems have to be removed. In order to make the lights in good condition and extend the life time, we suggest a regular cleaning to the lights.
