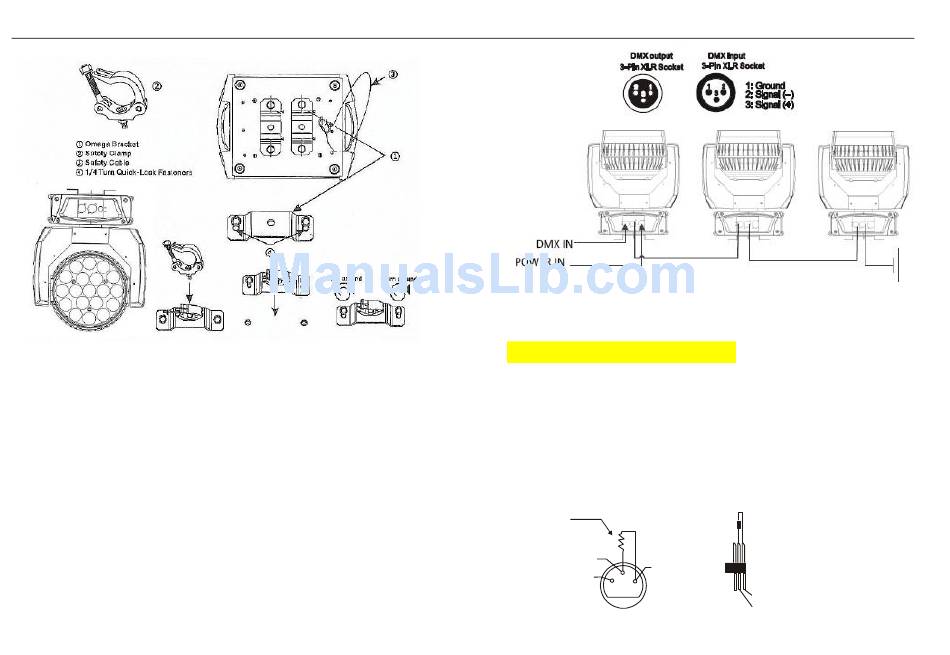

2. DMX connection
Connect the provided XLR cable to the female 3-pin XLR output of your controller and the
other side to the male 3-pin XLR input of the moving head. You can chain multiple Moving
head together through serial linking. The cable needed should be two core, screened cable
with XLR input and output connectors. Please refer to the diagram below.
06
Swift1915Z Aura LED Moving Head Beam Wash Light User Manual
Address 31
Address16
DMX-512 C
DMX T
ONNECTION WITH
ERMINATOR
For installations where the DMX cable has to run a long distance or is in an electrically noisy
environment, such as in a discotheque, it is recommended to use a DMX terminator. This
helps in preventing corruption of the digital control signal by electrical noise. The DMX
terminator is simply an XLR plug with a 120 Ω resistor connected between pins 2 and
3,which is then plugged into the output XLR socket of the last fixture in the chain. Please
see illustrations below:
120Ω
2
3
1
Address 1
PIN 3
PIN 2
07
