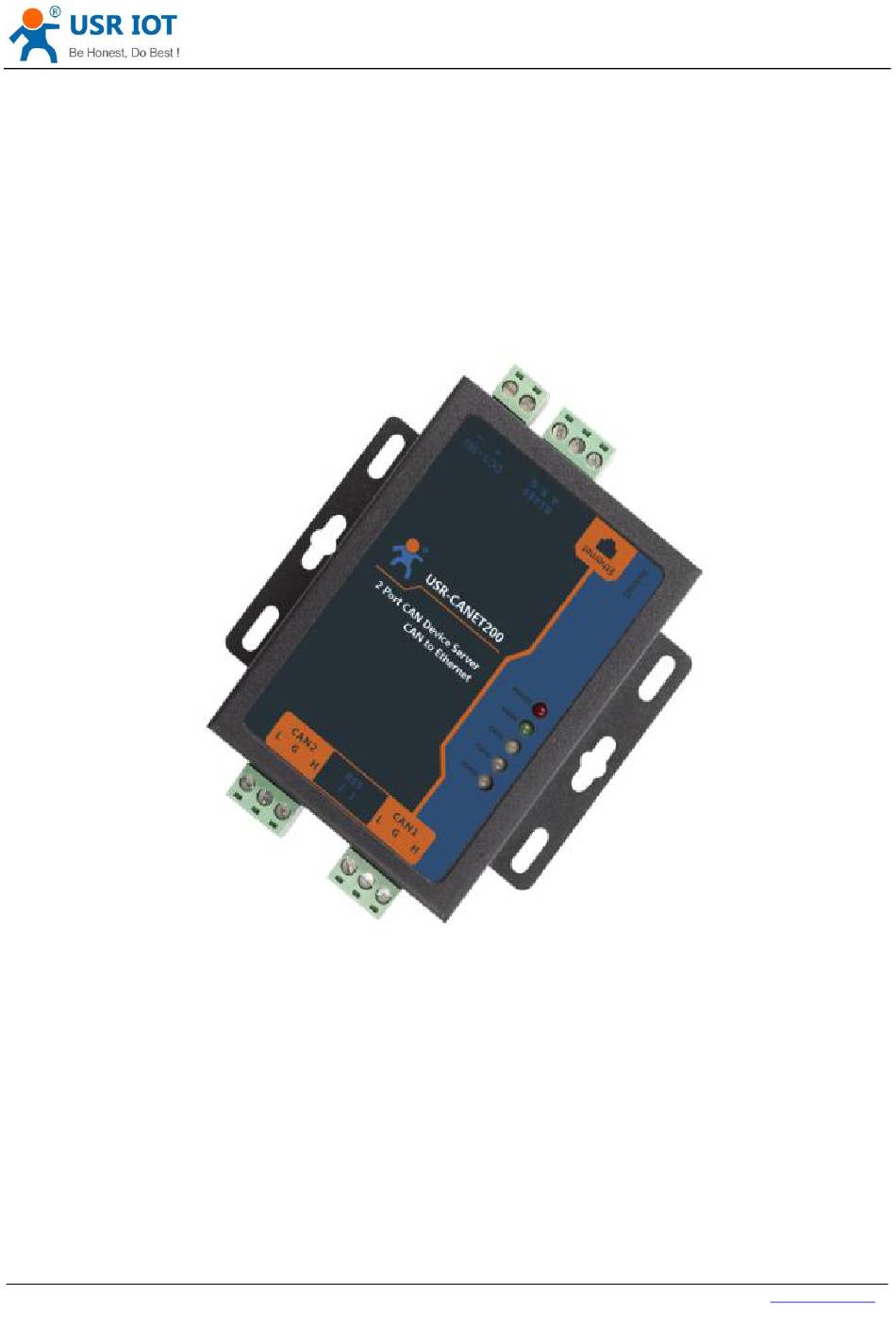

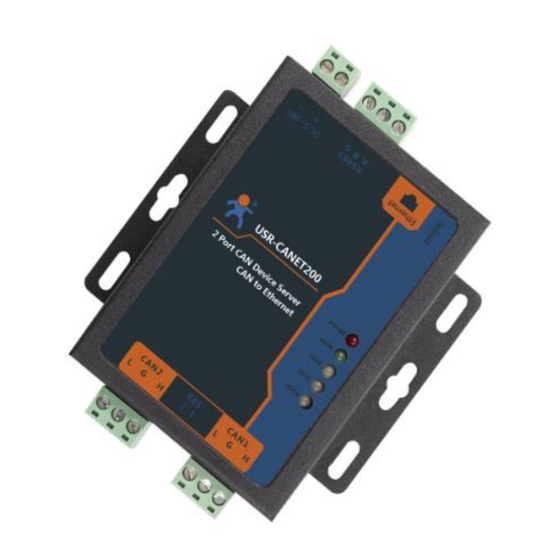

Page 1: Usr-Canet200 User Manual
Technical Support: h.usriot.com USR-CANET200-User-Manual USR-CANET200 User Manual File Version: V1.0.4.01 Jinan USR IOT Technology Limited www.usriot.com... -
Page 2: Table Of Contents
Technical Support: h.usriot.com USR-CANET200-User-Manual Contents USR-CANET200 User Manual ..........................1 Features ..................................3 1.Get Start ................................. 4 1.1.Application Diagram ..........................4 1.2.Hardware design ............................4 1.2.1.LED ..............................4 1.2.2.Dimension ............................5 2.Product function ..............................6 2.1.Basic function ............................6 2.1.1.Static IP/DHCP ..........................6 2.1.2.Restore default settings ....................... -
Page 3: Features
RJ45 has Link/Data LED; Ethernet interface has external isolation transformer and supports 1.5KV electromagnetic isolation. Support upgrading firmware by network. Support modifying Web Server port(Default is 80). Support Keep-Alive function. Support CAN relay function. Support switching between CAN and RS485. Jinan USR IOT Technology Limited www.usriot.com... -
Page 4: Get Start
Technical Support: h.usriot.com USR-CANET200-User-Manual 1.Get Start If user has any question, please submit it back to customer center: http://h.usriot.com. 1.1.Application Diagram Figure 1 Application diagram 1.2.Hardware design 1.2.1.LED Jinan USR IOT Technology Limited www.usriot.com... -
Page 5: Dimension
CAN2 LED will blink in blue. RS485 Dual colour. When module transmits data, RS485 LED will blink in red; when module receives data, RS485 LED will blink in blue. Figure 2 LED 1.2.2.Dimension Figure 3 Dimension Jinan USR IOT Technology Limited www.usriot.com... -
Page 6: Product Function
Technical Support: h.usriot.com USR-CANET200-User-Manual 2.Product function This chapter introduces the functions of USR-CANET200. As the following diagram shows, user can get an overall knowledge of it. Socket A TCPS/TCPC/UDPS/UDPC/HTTPC Identity Keep-Alive packet Cloud packaging User Socket B TCPC/UDPC device- CAN BUS... -
Page 7: Restore Default Settings
Standard frame receiving range: In this mode, module will only receive standard frame ID in the range and filter extended frame. Standard frame filtering range: In this mode, module will only filter standard frame ID in the range and completely receive extended frame. Note: All ranges include boundary. Jinan USR IOT Technology Limited www.usriot.com... -
Page 8: Can Data Transparent Transmission Protocol
00 00 00’ are data with effective length 5 and the rest bits are supplied with 0. Ethernet to CAN: Ethernet side transmit: 05 00 00 06 78 12 34 56 78 00 00 00 00. 0x05 means standard frame, Jinan USR IOT Technology Limited www.usriot.com... -
Page 9: Serial Port
30 seconds to check TCP connection and CANET200 will disconnect and reconnect to server if any connection exception occurs. TCP Client mode also supports USR Cloud. Figure 7 TCP Client mode Jinan USR IOT Technology Limited www.usriot.com... -
Page 10: Tcp Server Mode
In UDP mode, data packet size is suggested to less than 650 bytes(50 CAN frame) and UDP packet be transmitted in every second is suggested to less than 4000 CAN frame. Jinan USR IOT Technology Limited www.usriot.com... -
Page 11: Udp Server Mode
TCP/UDP Client mode). Network heartbeat packet related to CAN interface should in CAN frame format. CAN heartbeat packet: Can be used as querying commands to send to CAN interface. CAN heartbeat packet Jinan USR IOT Technology Limited www.usriot.com... -
Page 12: Identity Packet Function
TCP Client, because both socket A and socket B support USR Cloud function, and two Clients maybe exclude each other if two Clients both connect to USR Cloud platform. Jinan USR IOT Technology Limited www.usriot.com... -
Page 13: Can Relaying Function
Received data of CAN1 will transmit directly by CAN2 and received data of CAN2 will transmit directly by CAN1. User can also realize baud rate conversion by configuring different baud rate. Figure 13 CAN relaying function Jinan USR IOT Technology Limited www.usriot.com... -
Page 14: Parameter Configuration
DHCP mode or change static IP into same network segment as router). 3.1.Setup software We provide setup software for USR-CANET200 to configure by serial or network and when user uses setup software, please close firewall and antivirus program. 3.2.Web Server... -
Page 15: Network At Command Mode
AT command mode but don’t send any command over 30 seconds, module will exit network AT command mode. User can enter network AT command mode as follow way: Figure 16 Network AT command mode 4.Contact Us Jinan USR IOT Technology Limited www.usriot.com... -
Page 16: Disclaimer
Tel: 86-531-88826739/86-531-55507297 5.Disclaimer This document provides the information of USR-CANET200 products, it hasn’t been granted any intellectual property license by forbidding speak or other ways either explicitly or implicitly. Except the duty declared in sales terms and conditions, we don’t take any other responsibilities. We don’t warrant the products sales and use explicitly or implicitly, including particular purpose merchant-ability and marketability, the tort liability of any other patent right, copyright, intellectual property right.
