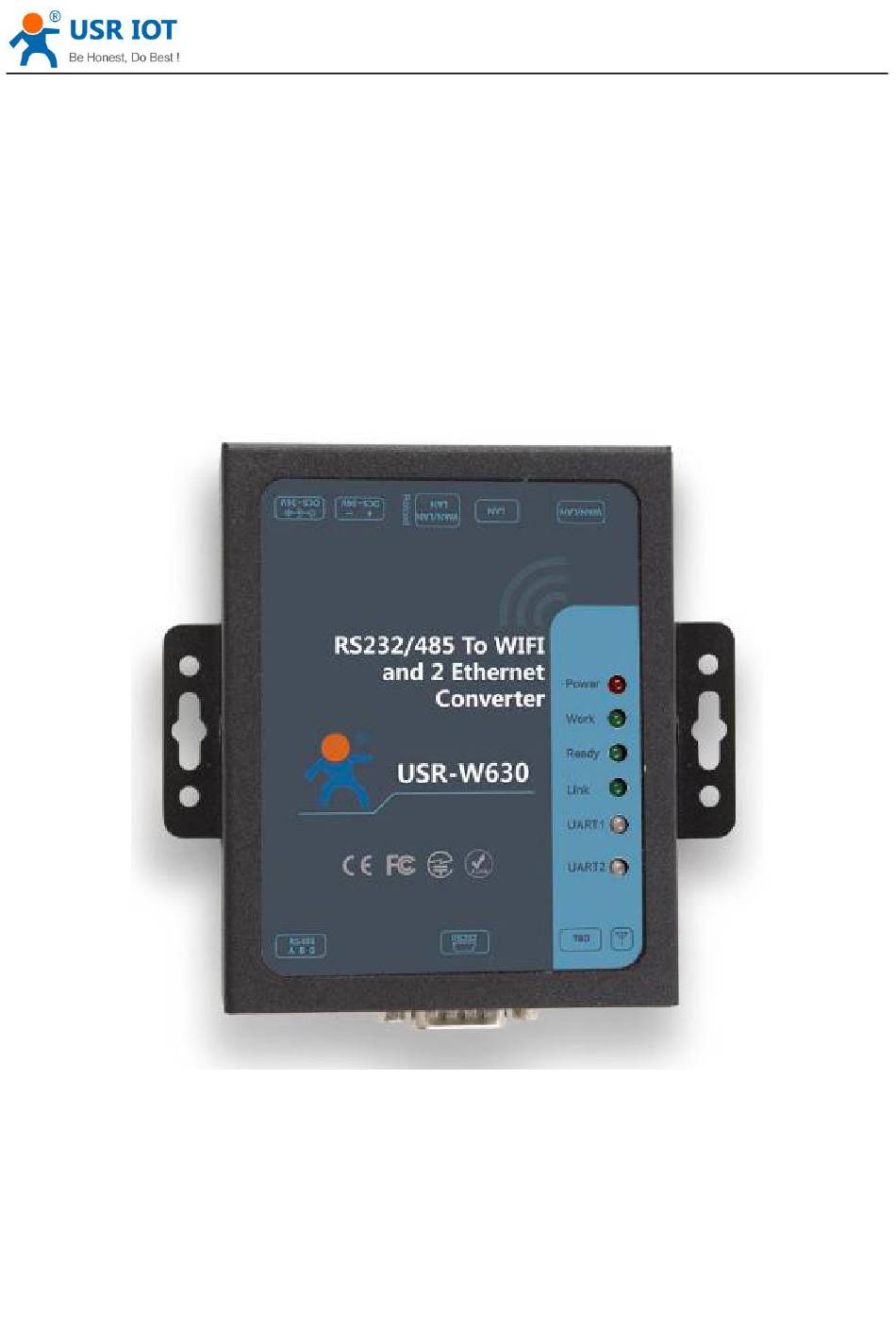

Page 1: Usr-W630 User Manual
USR-W630 User Manual Technical Support: h.usriot.com USR-W630 User Manual File Version: V1.0.3 Jinan USR IOT Technology Limited... -
Page 2: Table Of Contents
USR-W630 User Manual Technical Support: h.usriot.com Contents USR-W630 User Manual............................1 Get Start................................4 1.1. Hardware Connection.......................... 4 1.2. Net Connection.............................4 1.3. Data Transmission Test.........................6 Product Overview..............................7 2.1. Product Introduction..........................7 2.2. Product Feature............................ 7 2.3. Electrical Parameters..........................8 2.4. Product Appearance..........................9 2.5. - Page 3 Webpage Setting..........................27 5.1.1. Open The Webpage........................27 5.1.2. Quick Configuration........................28 5.1.3. Other Page..........................29 5.2. AT Command Setting..........................29 5.2.1. Serial Port AT Commands......................29 5.2.2. Net AT Commands........................29 5.3. AT Commands.............................29 6.Contact Us................................32 7.Disclaimer................................33 8.Update History.................................34 Jinan USR IOT Technology Limited...
-
Page 4: Get Start
Refer to the subsequent chapters for specific details and instructions. 1.1. Hardware Connection We connect the serial port and network port of the USR-W630 to PC, if your PC have no serial port, you can use USB to 232 line. Hardware connection: Figure 1 hardware connection You just need connect 232 line and power to W630 as picture shows. - Page 5 USR-W630 User Manual Technical Support: h.usriot.com Figure 2 search SSID Set the PC DHCP mode, USR-W630 support DHCP server mode, the function default open. Jinan USR IOT Technology Limited www.usriot.com...
-
Page 6: Data Transmission Test
The data from serial port to net is: serial port of PC->serial port of W630->W630->network port(or wifi) of W630->PC; The data from net to serial port is: PC-> network port(or wifi) of W630->W630->serial port of W630->serial port of PC Jinan USR IOT Technology Limited www.usriot.com... -
Page 7: Product Overview
2.1. Product Introduction USR-W630 provide the function of serial port to WIFI, serial port to Ethernet, Ethernet to WIFI. It can send data from RS232/485 serial port to TCP/IP network port, from RS232/485 serial port to WIFI/ Ethernet, vice versa. It can expand the communication distance of serial devices. -
Page 8: Electrical Parameters
TKIP/AES Transparent transmission mode/ Serial port command mode/ Working mode Httpd Client mode/ Software parameters Modbus mode Setting command AT+command TCP/UDP/ARP/ICMP/DHCP/DNS/HT Network protocol Max number of TCP connect User setting Web server+ AT commands Jinan USR IOT Technology Limited www.usriot.com... -
Page 9: Product Appearance
COM 2 status indication Reserve WAN/LAN NET 1 connect/data Light on when connect with WAN/LAN; transmission Flicker when send data NET 2 connect/data Light on when connect with LAN; transmission Flicker when send data Jinan USR IOT Technology Limited www.usriot.com... -
Page 10: Interface Specification
Ready light is on), wait for 8s for the W630 to start automatically (except the Power indicator, the other indicator lights go out and then the Ready lights turn on), and restore the settings to the factory settings. 2.7. Appearance Size Unit mm Jinan USR IOT Technology Limited www.usriot.com... -
Page 11: Application Area
3. Product Networking Application The USR-W630 serial server can be configured either as a wireless STA or as an AP. So USR-W630 logically supports two wireless interfaces, one as STA, the other as an AP, and the other STA can connect to the wireless network through AP interface of the serial server. -
Page 12: Work As Ap
3.3. Work as AP+STA USR-W630 can support one AP interface and one STA interface simultaneously. After opening the AP+STA function, the STA and AP interfaces are available at the same time. The STA interface of the serial server is connected to the router and is connected to the server in the network through TCPB, and the AP interface can be connected by mobile phone / PAD (through TCPA). -
Page 13: Wireless Serial Port Application
3.4. Wireless Serial Port Application USR-W630's wireless can be configured either as a wireless STA or as an AP. Logically, two wireless interfaces are supported, one as STA and the other as an AP. The other STAs can be connected to the wireless network through the AP interface of the W630. -
Page 14: Network Cable Bridge Application (Ap)
Figure 11 application of network cable bridge Set USR-W630 work at AP mode, turn off the DHCP server of the module, and the IP is modified to a same network segment with the router (the "Wireless Access Point Settings" page in the web page has the corresponding options), and the ports 1 and 2 are set to LAN ports. -
Page 15: Wireless Bridging Application(Ap+Sta)
Figure 12 wireless bridging application USR-W630 work as AP+STA, the SSID and encryption, encryption algorithm (the "wireless access point settings" section of the Web page) of AP set to the same parameters as STA (the "wireless terminal settings" in the Web page), and STA to connect to the router (the IP of AP in the same network segment with router). -
Page 16: Application Of Wireless Plus Cable
When W630 work at STA mode, it can connect PC with RJ45, or join the WI-FI of AP. Figure 15 application 3 of wireless plus cable When W630 work as AP , it can connect external network with RJ45, other PC or device connect to W630 through WI-FI. Jinan USR IOT Technology Limited www.usriot.com... -
Page 17: Product Function
4.1.2. Serial Port Command Mode In this mode, when the USR-W630 serial server acts as UDP Client or TCP Client, the user is allowed to send serial data to different servers. Customer MCU send packets in the following format. After the server parses the WIFI string, only n bytes of data are sent to the destination address. -
Page 18: Wireless Characteristics
The USR-W630 has two Socket: Socket A and Socket B. Data written to the USR-W630 serial port, USR-W630 will automatically send to Socket A and B at the same time; data received by USR-W630 through Socket A or Socket B, are sent through the serial port. -
Page 19: Uart Auto Framing Mode
For fixed-length data frames on the serial port, UART auto-framing can be turned on to achieve the highest forwarding efficiency. USR-W630 serial port server supports UART port auto framing function. After setting the trigger time and the trigger frame length, the serial server will automatically frame the data received from the serial port and forward it to the network. -
Page 20: Class Rfc2217 Automatic Baud Rate Function
RFC2217 is a standard protocol for instantly modifying device serial port parameters through Ethernet. This device supports a protocol similar to RFC2217, not standard RFC2217, which implements the same function, but the protocol is simpler. Jinan USR IOT Technology Limited www.usriot.com... -
Page 21: Keep-Alive Function
4.9. USR-Link When USR-W630 works in AP mode, it opens a UDP port with a port number of 4900 for receiving commands from the Fast Networking Protocol. The mobile phone can be directly connected to the WIFI network of USR-W630, query the list of SSID information and set the router SSID and password through the command of UDP protocol. -
Page 22: Search In Lan
3. Users can set and read the parameters/states by sending network AT commands (upper case) to the port. The net AT commands are in the same format with serial AT commands. Note: Search tools and W630 must be in the same LAN. If multiple STAs are connected to a router, the computer Jinan USR IOT Technology Limited www.usriot.com... -
Page 23: Custom Heartbeat Package
It sends to the specified socket connection. For example, the serial port device sends ABC to socket A, and the network terminal socket A sends the data to the serial port device 123. Jinan USR IOT Technology Limited www.usriot.com... -
Page 24: Timeout Restart Function
(2) WIFI connection is established and no communication also starts timing, if there is communication, the clear timing unit, if the timing time exceeds the timeout restart time, then restart the W630. This function defaults by default. Jinan USR IOT Technology Limited www.usriot.com... -
Page 25: Timer Restart Function
And then proceed to the next round of polling. 4.16. Remote Upgrade W630 supports remote upgrade. 4.17. Firmware Upgrade First make PC join the WIFI of W630, enter 10.10.100.254,the account and password are both admin. Jinan USR IOT Technology Limited www.usriot.com... - Page 26 USR-W630 User Manual Technical Support: h.usriot.com Figure 23 firmware upgrade Then click apply Jinan USR IOT Technology Limited www.usriot.com...
-
Page 27: Setting Method
"Quick Configuration", "Mode Selection", "Wireless Access Point Settings", "Wireless Terminal Settings", "Serial Port and Network Settings", "Ethernet Function Settings", "HTTPD Client Mode", "Advanced Settings" and "Module Management". Jinan USR IOT Technology Limited www.usriot.com... -
Page 28: Quick Configuration
485 functions and so on. Network configuration: configure the network parameters of the W630, with only the relevant parameters of Socket A. Module management: when the above parameters are configured, click restart and restart the module. Jinan USR IOT Technology Limited www.usriot.com... -
Page 29: Other Page
AP composition of the LAN settings. Wireless Terminal Settings: This web page sets the WIFI parameters of STA mode, including router SSID, wireless security and STA network IP access (DHCP or static IP), USR-W630 supports three sets of STA parameters for user settings. - Page 30 Set / query the threshold value of signal switching for three sets of STA parameters. HTPMODE New and old version of HTTP header setup mode switch (HTTPD Client) The old version sets / inquires the IP and port of the HTTP server HTTPURL Jinan USR IOT Technology Limited www.usriot.com...
- Page 31 Query / set polling interval (50~65535) (MS) UPDATE Query and set enabled status of remote upgrade, remote server address, remote server port, reporting interval MONITOR Query and set the enabling state and reporting interval of remote monitoring Jinan USR IOT Technology Limited www.usriot.com...
-
Page 32: Contact Us
USR-W630 User Manual Technical Support: h.usriot.com 6.Contact Us Company: Jinan USR IOT Technology Limited Address: Floor 11, Building 1, No. 1166 Xinluo Street, Gaoxin District, Jinan, Shandong, 250101, China Web: www.usriot.com Support: h.usriot.com Email: sales@usr.cn Tel: 86-531-88826739/86-531-55507297 Jinan USR IOT Technology Limited... -
Page 33: Disclaimer
7.Disclaimer This document provide the information of USR-W630 products, it hasn’t been granted any intellectual property license by forbidding speak or other ways either explicitly or implicitly. Except the duty declared in sales terms and conditions, we don’t take any other responsibilities. We don’t warrant the products sales and use explicitly or implicitly, including particular purpose merchantability and marketability, the tort liability of any other patent right, copyright, intellectual property right. -
Page 34: Update History
USR-W630 User Manual Technical Support: h.usriot.com 8.Update History Edition Describe V1.0.3 2018-06-28 establish Jinan USR IOT Technology Limited www.usriot.com...
